Description

Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 12 This part replaces 17400-18H00.

17400-18H01

$302.83

2

IMPELLER

17491-01H00

$41.50

3

SHAFT

17511-41G00

Unavailable

4

GASKET

09168-06025

$2.80

5

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$26.75

6

OIL SEAL

17461-01H00

$16.11

7

WASHER

17432-07G00

$2.61

8

SCREW

02112-0616A

$1.43

9

O RING This part replaces 17418-18H00.

17418-18H01

$16.37

10

.O-RING

17435-33400

$13.99

11

BOLT (6X13)

09100-06099

$2.08

12

LOCK WASHER

09164-06006

$2.66

13

BOLT

01547-0635A

$2.31

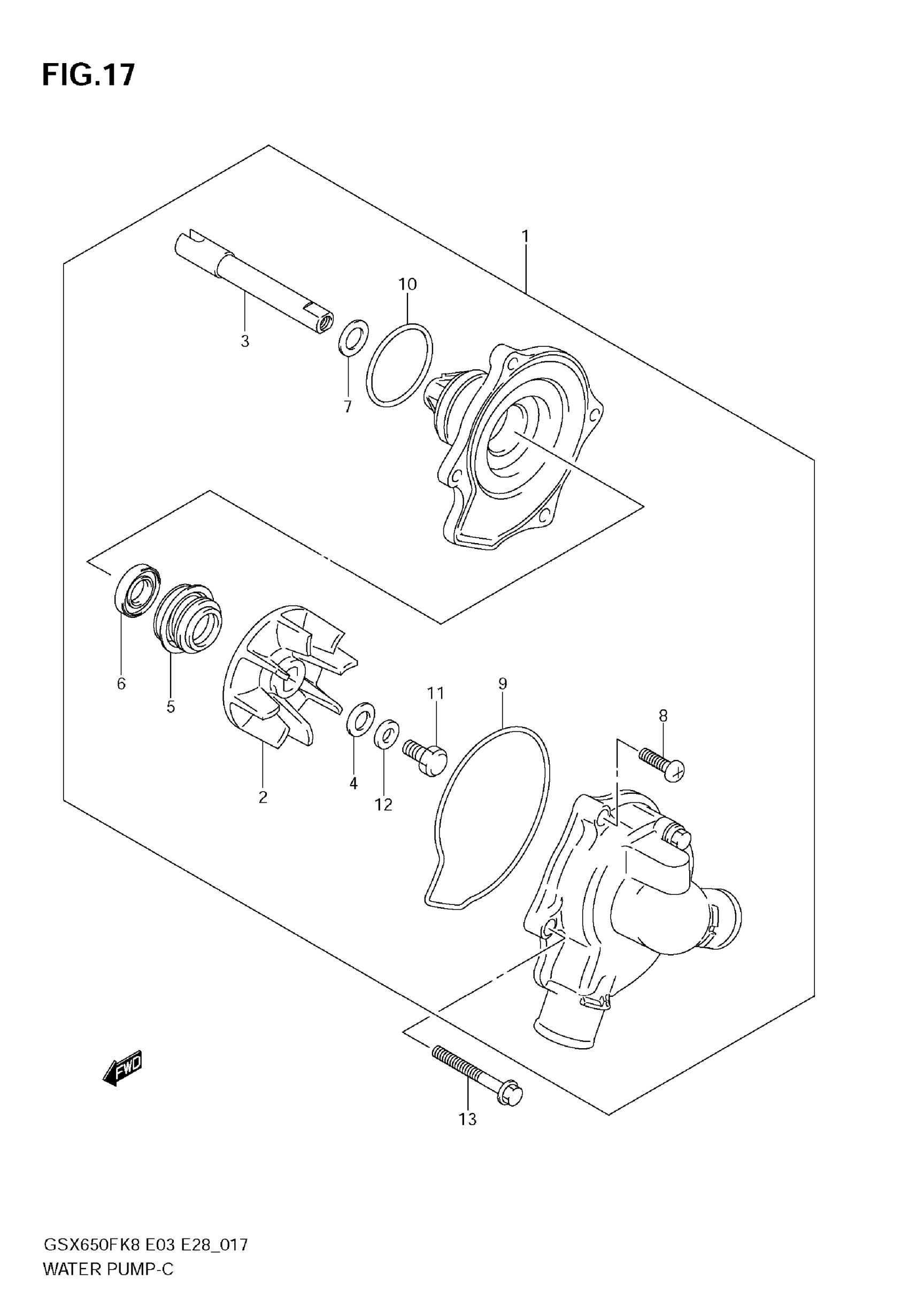

Suzuki GSX650F (2009) WATER PUMP Diagram
