2009 Suzuki GSX650F Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2009 Suzuki GSX650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

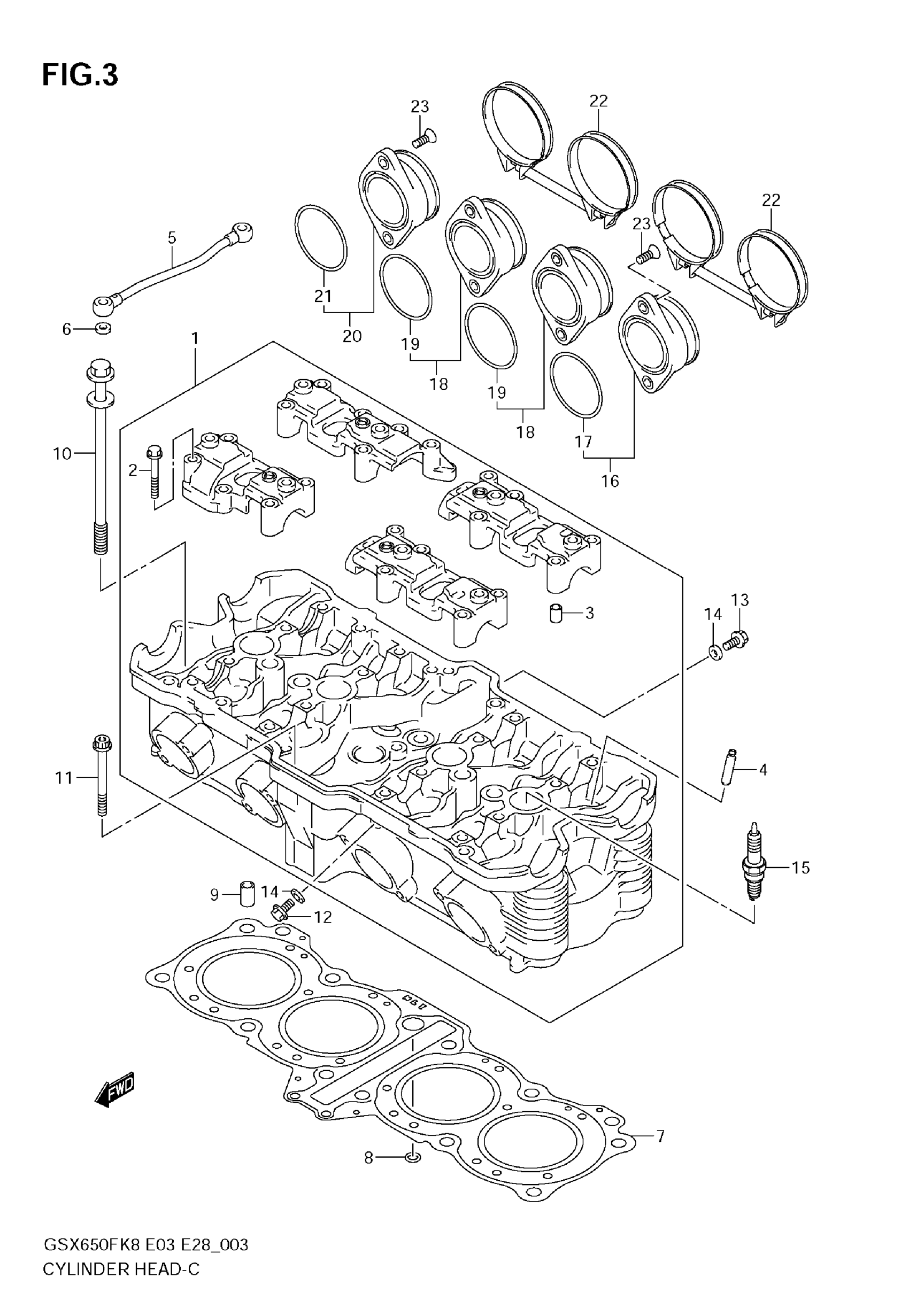

2009 Suzuki GSX650F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-17H00

1
Out of stock

2

BOLT

09103-06293

21
Out of stock

3

PIN

09206-08001

8
Out of stock

4

GUIDE, VALVE (OS 0.3) | OPT

11115-17E70

16
Out of stock

5

PIPE, OIL

11131-18H00

1
Out of stock

6

WASHER

08322-0106B

2
Out of stock

7

GASKET, CYLINDER HEAD

11141-17H01

1
Out of stock

8

O RING

11143-32F00

1
Out of stock

9

PIN

04211-11169

2
Out of stock

10

BOLT

11117-18H00

12
Out of stock

11

BOLT

07120-0665B

2
Out of stock

12

BOLT, OIL GALLERY

01550-0612A

1
Out of stock

13

BOLT, OIL GALLERY

07120-0612B

1
Out of stock

14

GASKET

09168-06023

2
Out of stock

15

SPARK PLUG (NGK,CR8E)

09482-00456

4
Out of stock

15

SPARK PLUG (DENSO,U24ESR-N)

09482-00457

4
Out of stock

15

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

4
Out of stock

15

PLUG SPARK (CR9E) | OPT

09482-00458

4
Out of stock

15

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

4
Out of stock

15

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

4
Out of stock

16

PIPE, INTAKE NO.1 | Includes Item(s) 17

13101-17H00

1
Out of stock

17

O RING (D:2.40,ID:41.7)

09280-42003

1
Out of stock

18

PIPE, INTAKE NO.2 | Includes Item(s) 19

13102-17H00

2
Out of stock

19

O RING (D:2.40,ID:41.7)

09280-42003

2
Out of stock

20

PIPE, INTAKE NO.4 | Includes Item(s) 21

13104-17H00

1
Out of stock

21

O RING (D:2.40,ID:41.7)

09280-42003

1
Out of stock

22

CLAMP, INTAKE PIPE

13170-18H10

2
Out of stock

23

SCREW

02122-0616B

8
Out of stock
