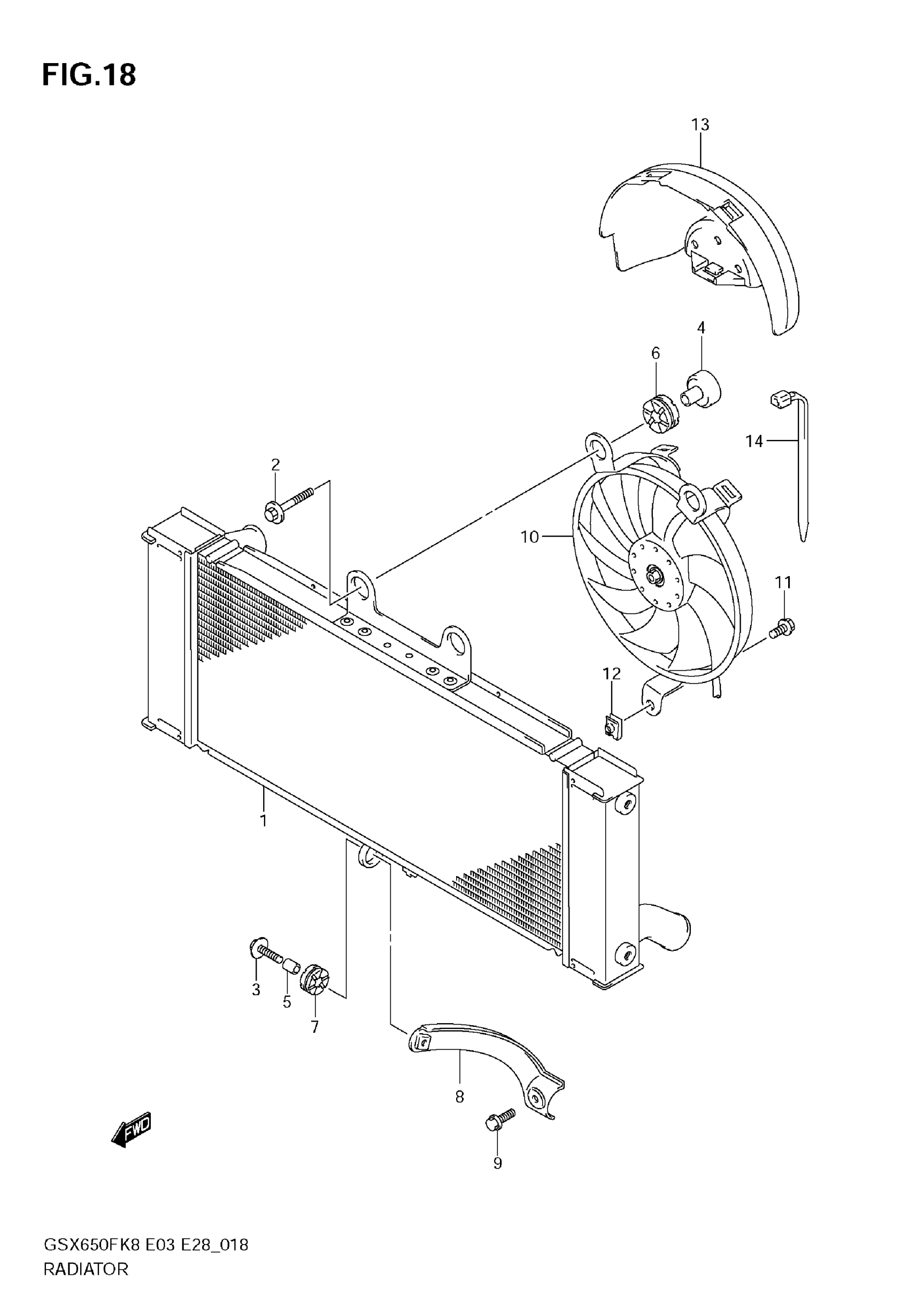

Suzuki GSX650F (2009) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,W This part replaces 17710-18H00.

17710-18H30

$959.40

2

BOLT

09116-06176

Unavailable

3

BOLT

09118-06097

$2.50

4

SPACER

17731-18H00

Unavailable

5

SPACER

09180-06290

$2.01

6

CUSHION

09320-10062

$5.17

7

CUSHION

09320-10051

$2.81

8

BRACKET, LOWER This part replaces 17750-18H00.

17750-18H10

$19.00

9

BOLT

01550-0620A

$1.97

10

FAN ASSY,RADIAT This part replaces 17800-18H00.

17800-18H01

$320.66

11

BOLT

01550-0616A

$1.97

12

NUT

17802-14F00

$3.18

13

SHIELD, HEAT

17771-18H00

Unavailable

14

CLAMP

09407-14403

$2.24
