2009 Suzuki GSX650F Crankcase Cover Diagram

← All diagrams

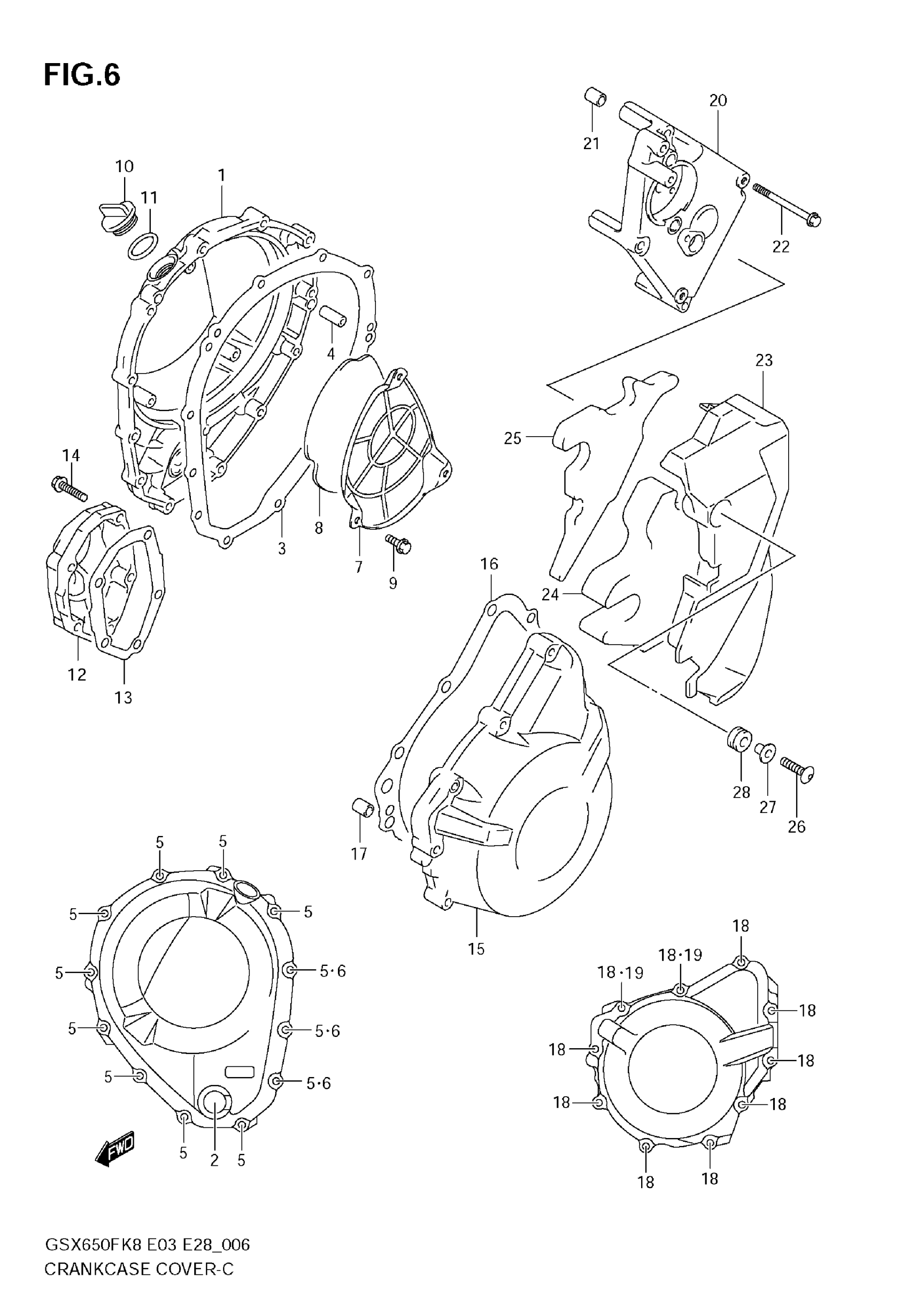

Find the part on the Crankcase Cover diagram for your 2009 Suzuki GSX650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX650F Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-18H00

1
Out of stock

2

LENS, OIL LEVEL CHECK

11971-33210

1
Out of stock

3

GASKET

11482-18H00

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

BOLT (6X30)

09103-06213

12

$2.63

In stock

6

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

7

PLATE, CLUTCH COVER

11342-18H00

1
Out of stock

8

DAMPER

11343-18H00

1
Out of stock

9

BOLT

01550-0612A

3
Out of stock

10

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

11

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

12

COVER, CRANKSHAFT RH

11381-18H00

1
Out of stock

13

GASKET

11491-18H00

1
Out of stock

14

BOLT

09103-06213

5

$2.63

In stock

15

COVER, MAGNETO

11351-18H00

1
Out of stock

16

GASKET

11483-18H00

1
Out of stock

17

PIN

04211-09149

2
Out of stock

18

BOLT

09103-06213

10

$2.63

In stock

19

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

20

COVER, ENGINE SPROCKET INNER

11371-18H00

1
Out of stock

21

PIN

04211-09149

2
Out of stock

22

BOLT

01547-0660A

4
Out of stock

23

COVER, ENGINE SPROCKET OUTER

11361-18H00

1
Out of stock

24

CUSHION, NO.1

11362-18H00

1
Out of stock

25

CUSHION, NO.2

11363-18H00

1
Out of stock

26

BOLT

09139-06056

3
Out of stock

27

SPACER

09169-06062

3
Out of stock

28

CUSHION

09320-09016

3
Out of stock
