2009 Suzuki GSX650F Crankshaft Diagram

← All diagrams

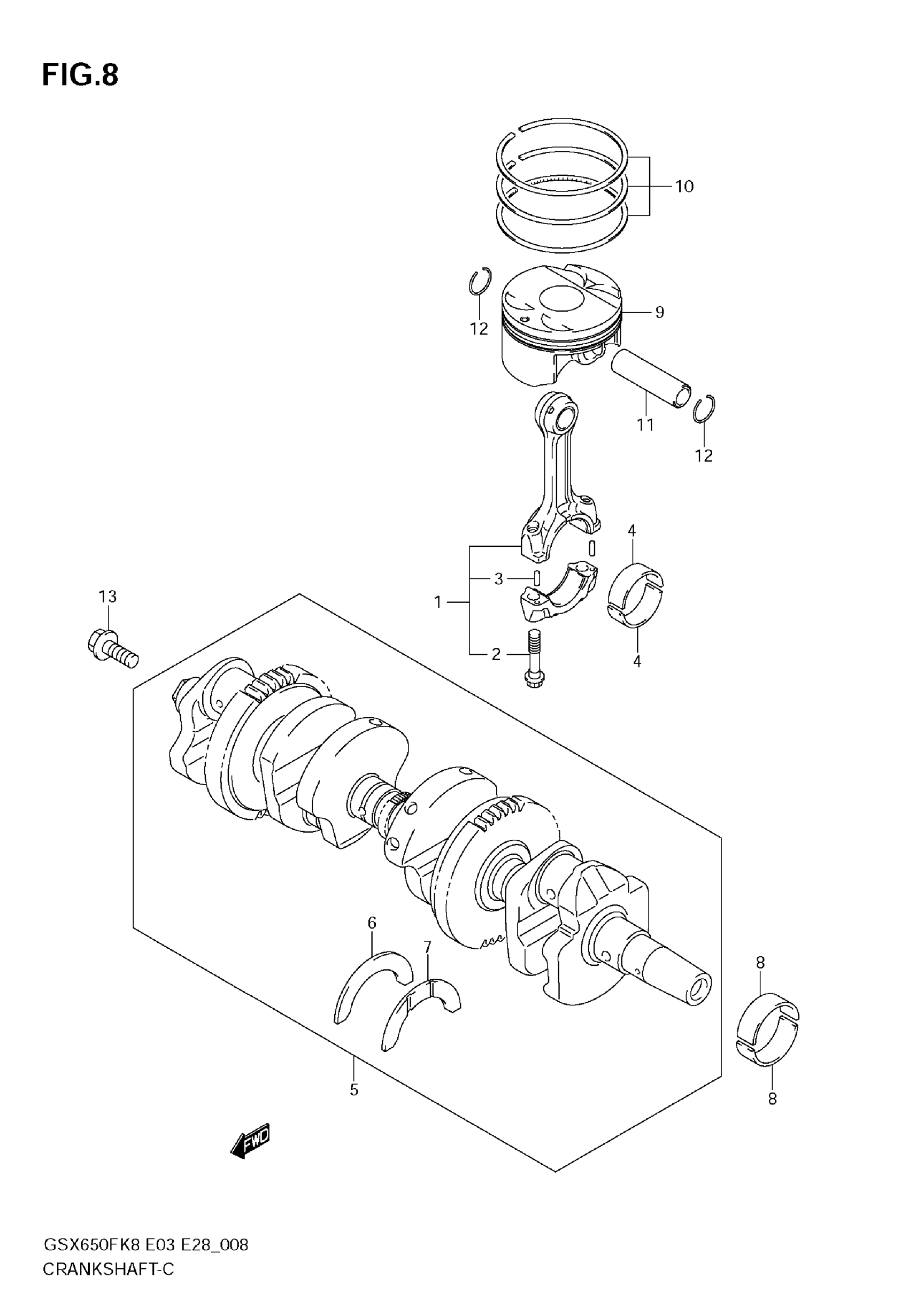

Find the part on the Crankshaft diagram for your 2009 Suzuki GSX650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX650F Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3

12160-17H00

4
Out of stock

2

BOLT

12163-35F00

8
Out of stock

3

PIN (4X13.8)

04221-04089

8
Out of stock

4

BEARING, CRANK PIN (GREEN)

12164-26E00-0A0

8
Out of stock

4

BEARING, CRANK PIN (BLACK)

12164-26E00-0B0

8
Out of stock

4

BEARING, CRANK PIN (BROWN)

12164-26E00-0C0

8
Out of stock

4

BEARING, CRANK PIN (YELLOW)

12164-26E00-0D0

8
Out of stock

5

CRANKSHAFT SET | Includes Item(s) 6 - 7

12000-17850

1
Out of stock

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

1
Out of stock

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

1
Out of stock

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

1
Out of stock

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

1
Out of stock

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

1
Out of stock

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

1
Out of stock

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

1
Out of stock

8

BEARING, CRANKSHAFT (GREEN)

12229-34E00-0A0

12
Out of stock

8

BEARING, CRANKSHAFT (BLACK)

12229-34E00-0B0

12
Out of stock

8

BEARING, CRANKSHAFT (BROWN)

12229-34E00-0C0

12
Out of stock

8

BEARING, CRANKSHAFT (YELLOW)

12229-34E00-0D0

12
Out of stock

9

PISTON

12111-17H01-0F0

4
Out of stock

10

RING SET, PISTON

12140-38G10

4
Out of stock

11

PIN, PISTON

12151-39F00

4
Out of stock

12

RING

09381-14001

8
Out of stock

13

BOLT

01550-1016A

1

$3.06

In stock
