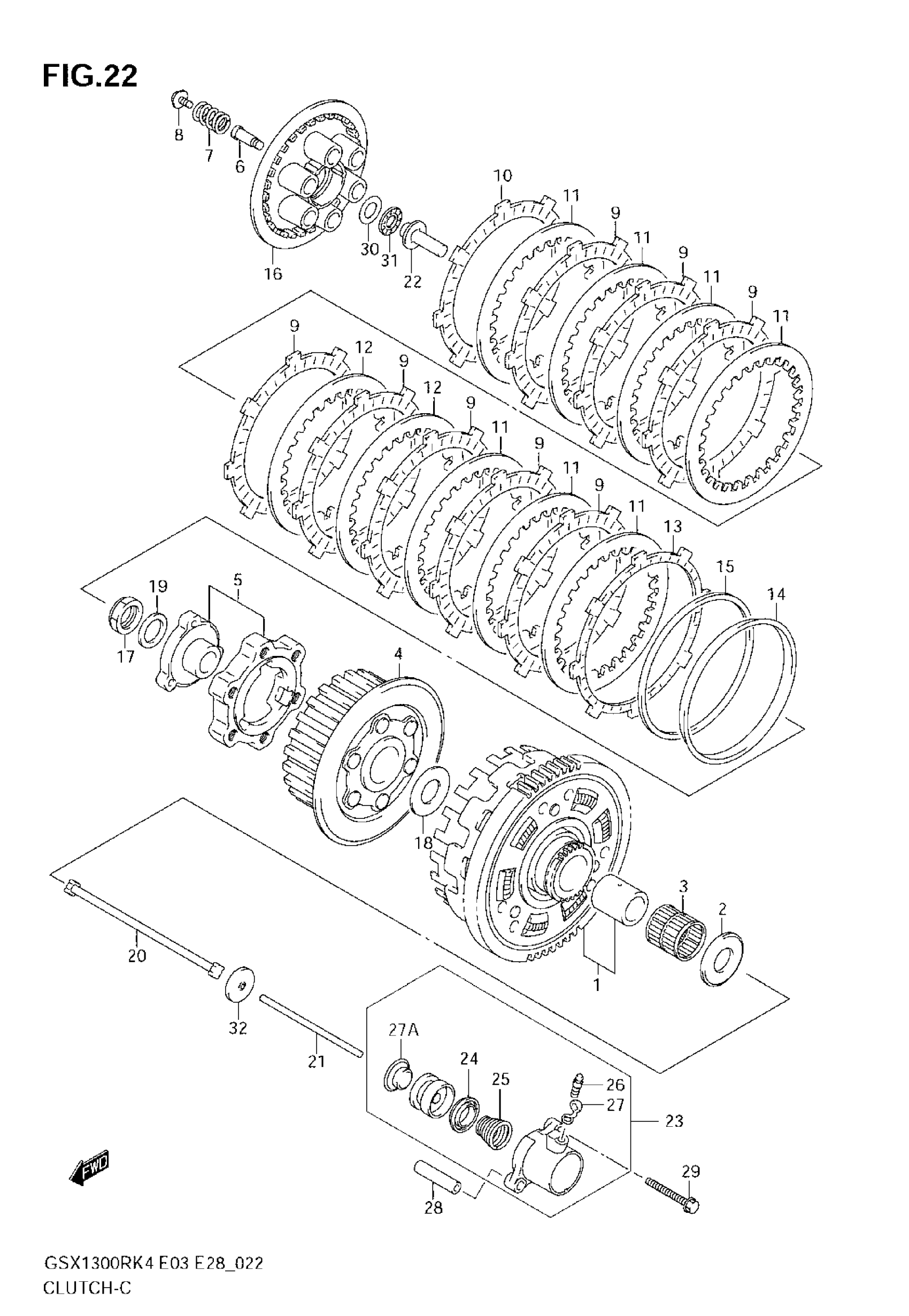

Find the part on the Clutch diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GSX1300R Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN This part replaces 21200-24830.

21200-24810

1
Out of stock

2

WASHER (25X54X2.5)

09160-25037

1
Out of stock

3

BEARING (35X40X39.8)

09263-35013

1
Out of stock

4

HUB, CLUTCH SLEEVE

21410-24F00

1
Out of stock

5

CAM SET, CLUTCH

21610-02F12

1
Out of stock

6

BOLT, SPRING SUPPORT

21481-02F12

6
Out of stock

7

SPRING, CLUTCH

21413-24F10

6
Out of stock

8

BOLT, CLUTCH SPRING

21482-02F12

6
Out of stock

9

PLATE, CLUTCH DRIVE | T:3.0 This part replaces 21441-24F20.

21441-24F00

8
Out of stock

10

PLATE, CLUTCH DRIVE, NO.2 | T:3.8

21441-24F10

1
Out of stock

11

.PLATE,CLUTCH DRIVEN NO.1 (T: | T:2.0

21451-24F00

7
Out of stock

12

PLATE, CLUTCH DRIVEN NO.2 | T:2.3

21451-24F10

2
Out of stock

13

PLATE, CLUTCH DRIVE NO.3 | T:3.8

21442-24F00

1
Out of stock

14

.SEAT,WAVE WASHER

21471-24F00

1
Out of stock

15

.WASHER,CLUTCH PLATE WAVE

21472-24F00

1
Out of stock

16

DISK, CLUTCH PRESSURE

21462-24F00

1
Out of stock

17

NUT, CLUTCH SLEEVE HUB

09159-24010

1
Out of stock

18

.WASHER (25X50X2.5)

09160-25056

1
Out of stock

19

WASHER (24.2X35X2)

09164-24006

1
Out of stock

20

ROD, CLUTCH PUSH, RH

23110-24F00

1
Out of stock

21

ROD, CLUTCH PUSH, LH

23111-26D00

1
Out of stock

22

PIECE, CLUTCH PUSH

23121-31E00

1
Out of stock

23

CYLINDER,CLUTCH | Includes Item(s) 24 - 27A This part replaces 23160-06B10.

23160-06B11

1
Out of stock

24

CUP

23163-06B00

1
Out of stock

25

SPRING

23164-05A00

1
Out of stock

26

BLEEDER

59121-01A00

1
Out of stock

27

CAP, BLEEDER

59122-01A00

1
Out of stock

27A

COVER, DUST

23166-02F20

1
Out of stock

28

PIN, CL RLSE CYL

04211-09129

2
Out of stock

29

BOLT, CL RLSE CYL

07130-0625B

2
Out of stock

30

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

1
Out of stock

31

BEARING (15X28X2)

09263-15003

1
Out of stock

32

SEAL (6X34X5.5)

09285-06015

1
Out of stock
