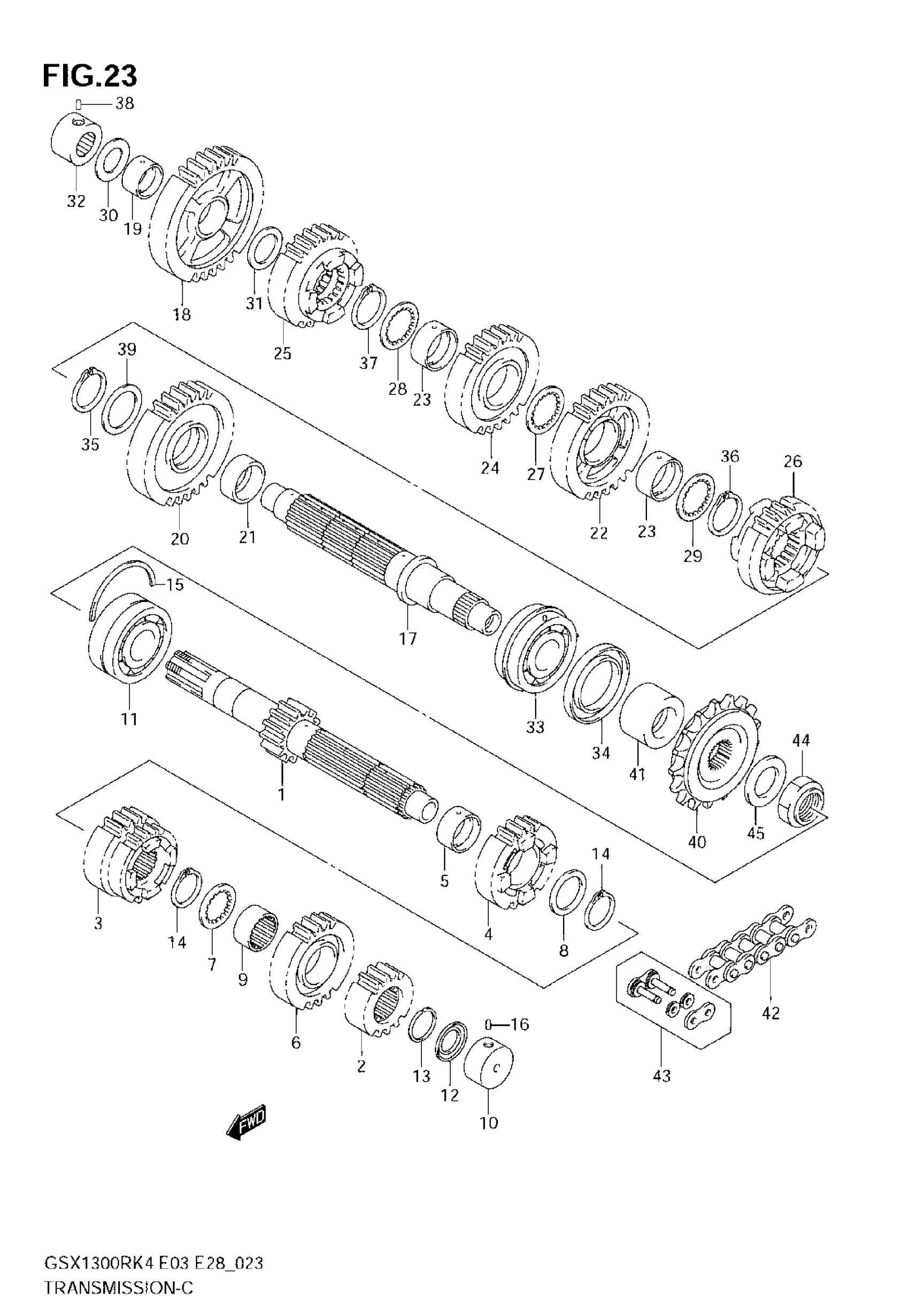

Find the part on the Transmission diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GSX1300R Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:13)

24120-24F00

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24221-24F00

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE | NT:19/21 %F.NO.103498

24231-24F10

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE | NT:19/21 F.NO.103499%

24231-24F40

1
Out of stock

4

GEAR, 5TH DRIVE (NT:22)

24251-24F00

1
Out of stock

5

BUSH, 5TH DRIVE

24252-24F10

1
Out of stock

6

GEAR, 6TH DRIVE (NT:23)

24261-24F00

1
Out of stock

7

WASHER, 6TH DRIVE

09167-27003

1
Out of stock

8

WASHER, 5TH DRIVE

09181-27014

1
Out of stock

9

BUSH, 4TH DRIVE

24262-24F10

1
Out of stock

10

BEARING, CENTER SHAFT LH

09263-20085

1
Out of stock

11

BEARING, CENTER SHAFT RH

09267-25012

1
Out of stock

12

SEAL, OIL | 20X31.2X2.7

09285-20006

1
Out of stock

13

CIRCLIP, 2ND DRIVE

09380-27004

1
Out of stock

14

CIRCLIP, 5TH & 6TH DRIVE

09380-27006

2
Out of stock

15

C RING, CNTR SHAFT BRG RH

09390-62012

1
Out of stock

16

PIN, CNTR SHAFT BRG LH

04221-07209

1
Out of stock

17

SHAFT, DRIVE

24131-24F10

1
Out of stock

18

GEAR, 1ST DRIVEN (NT:34)

24311-24F00

1
Out of stock

19

BUSH, 1ST DRIVEN

24312-24F10

1
Out of stock

20

GEAR, 2ND DRIVEN (NT:31)

24321-24F00

1
Out of stock

21

BUSH, 2ND DRIVEN

24322-24F10

1
Out of stock

22

GEAR, 3RD DRIVEN (NT:29)

24331-24F00

1
Out of stock

23

BUSH, 3RD & 4TH DRIVEN

24332-24F10

2
Out of stock

24

GEAR, 4TH DRIVEN (NT:27) | %F.NO.103498

24341-24F00

1
Out of stock

24

GEAR, 4TH DRIVEN (NT:27) | F.NO.103499%

24341-24F10

1
Out of stock

25

GEAR, 5TH DRIVEN (NT:25)

24351-24F10

1
Out of stock

26

GEAR, 6TH DRIVEN (NT:24)

24361-24F10

1
Out of stock

27

WASHER, 3RD DRIVEN GEAR LH

09167-30008

1
Out of stock

28

WASHER, 4TH DRIVEN GEAR RH

09167-30008

1
Out of stock

29

WASHER, 3RD & 4TH DRIVEN

09167-30008

1
Out of stock

30

WASHER, 1ST DRIVEN RH | 20X34X1

09181-20251

1
Out of stock

31

WASHER, 1ST DRIVEN LH

09181-24005

1
Out of stock

32

BEARING, DRIVE SHAFT RH | 20X34X20

09263-20040

1
Out of stock

33

BEARING, DRIVE SHAFT LH | 30X62X23.8

09267-30011

1
Out of stock

34

SEAL, DRIVE SHAFT | 38X52X8

09283-42017

1
Out of stock

35

CIRCLIP, 2ND DRIVEN

09380-30009

1
Out of stock

36

CIRCLIP, 3RD DRIVEN

09380-30009

1
Out of stock

37

CIRCLIP, 4TH DRIVEN

09380-30009

1
Out of stock

38

PIN, DRIVE SHAFT BRG RH

04221-07209

1
Out of stock

39

WASHER, 2ND DRIVEN GEAR RH | 30X40X2,5

08211-30405

1
Out of stock

40

SPROCKET, ENGINE (NT:17)

27510-21A31

1
Out of stock

41

SPACER, SPROCKET

27531-24F00

1
Out of stock

42

CHAIN ASSY,DRIV This part replaces 27600-24F00-112.

27600-24F50-112

1
Out of stock

43

JOINT SET, DRIVE | OPT

27620-24F00

1
Out of stock

44

NUT

09159-20004

1

$15.18

In stock

45

WASHER (25X40X1.5)

09181-25268

1

$3.13

In stock
