2007 Suzuki GSX1300R Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

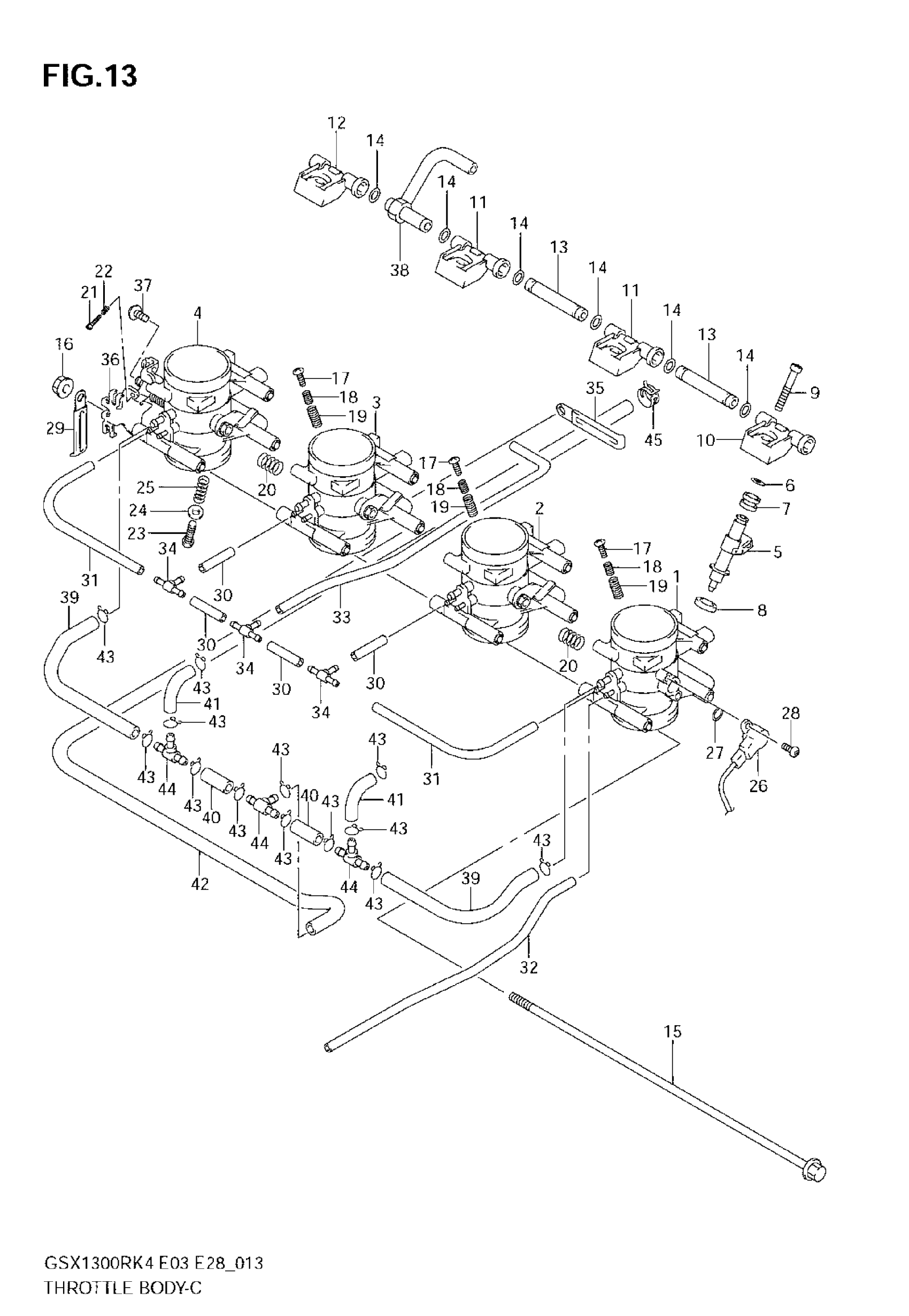

2007 Suzuki GSX1300R Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY, LH | E3,E28

13401-24FJ0

1
Out of stock

1

THROTTLE BODY ASSY, LH | E33

13401-24FH0

1
Out of stock

2

THROTTLE BODY ASSY, ML | E3,E28

13402-24FJ0

1
Out of stock

2

THROTTLE BODY ASSY, ML | E33

13402-24FH0

1
Out of stock

3

THROTTLE BODY ASSY, MR | E3,E28

13403-24FJ0

1
Out of stock

3

THROTTLE BODY ASSY, MR | E33

13403-24FH0

1
Out of stock

4

THROTTLE BODY ASSY, RH | E3,E28

13404-24FJ0

1
Out of stock

4

THROTTLE BODY ASSY, RH | E33

13404-24FH0

1
Out of stock

5

INJECTOR ASSY

15710-24F00

4
Out of stock

6

.O-RING

15721-24F00

4
Out of stock

7

RING, CUSHION

15722-24F00

4
Out of stock

8

RING, SEAL

13672-24F00

4
Out of stock

9

SCREW

13601-35F00

4
Out of stock

10

JOINT, NO.1

13471-35F00

1
Out of stock

11

JOINT, NO.2, 3

13471-35F10

2
Out of stock

12

JOINT, NO.4

13471-35F20

1
Out of stock

13

JOINT

13474-24F00

2
Out of stock

14

.O-RING

15721-24F00

6
Out of stock

15

BOLT

13611-24F00

3
Out of stock

16

NUT

13607-24F00

3
Out of stock

17

SCREW, STOP

13423-35F00

3
Out of stock

18

SPRING

13543-24F00

3
Out of stock

19

SPRING

13268-03F50

3
Out of stock

20

SPRING

13543-24F20

2
Out of stock

21

SCREW, STOP

13602-24F10

1
Out of stock

22

SPRING

13543-24F30

1
Out of stock

23

SCREW, STOP

13267-35F00

1
Out of stock

24

WASHER

13273-24F00

1
Out of stock

25

SPRING

13271-24F00

1
Out of stock

26

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

13580-40F22

1
Out of stock

27

O RING

13575-24F00

1
Out of stock

28

SCREW

13605-40F00

1
Out of stock

29

CLAMP | E3,E28

13432-24F10

1
Out of stock

29

CLAMP | E33

13619-24F10

1
Out of stock

30

HOSE,RUBBER(L:3 This part replaces 13697-24F00.

13697-24F01

4
Out of stock

31

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

2
Out of stock

32

HOSE,RUBBER(L:2 This part replaces 13697-24F30.

13697-24F31

1
Out of stock

33

HOSE, RUBBER (L:230+20)

13697-24FA0

1
Out of stock

34

JOINT

13471-24F30

3
Out of stock

35

CLAMP

13432-24FA0

1
Out of stock

36

PLATE, STAY

13565-24F00

1
Out of stock

37

SCREW

13601-24F00

1
Out of stock

38

JOINT

13473-35F01

1
Out of stock

39

HOSE, RUBBER (L:80+25) | E33

13698-24F00

2
Out of stock

40

HOSE, RUBBER (L:35) | E33

13698-24F10

2
Out of stock

41

HOSE, RUBBER (L:30+30) | E33

13698-24F20

2
Out of stock

42

HOSE, RUBBER (L:440+30) | E33

13698-24F30

1
Out of stock

43

CLIP | E33

13693-24F00

13
Out of stock

44

JOINT | E33

13685-36E50

3
Out of stock

45

CLIP (ID:9.4,H:8) | E33

09401-09403

1
Out of stock
