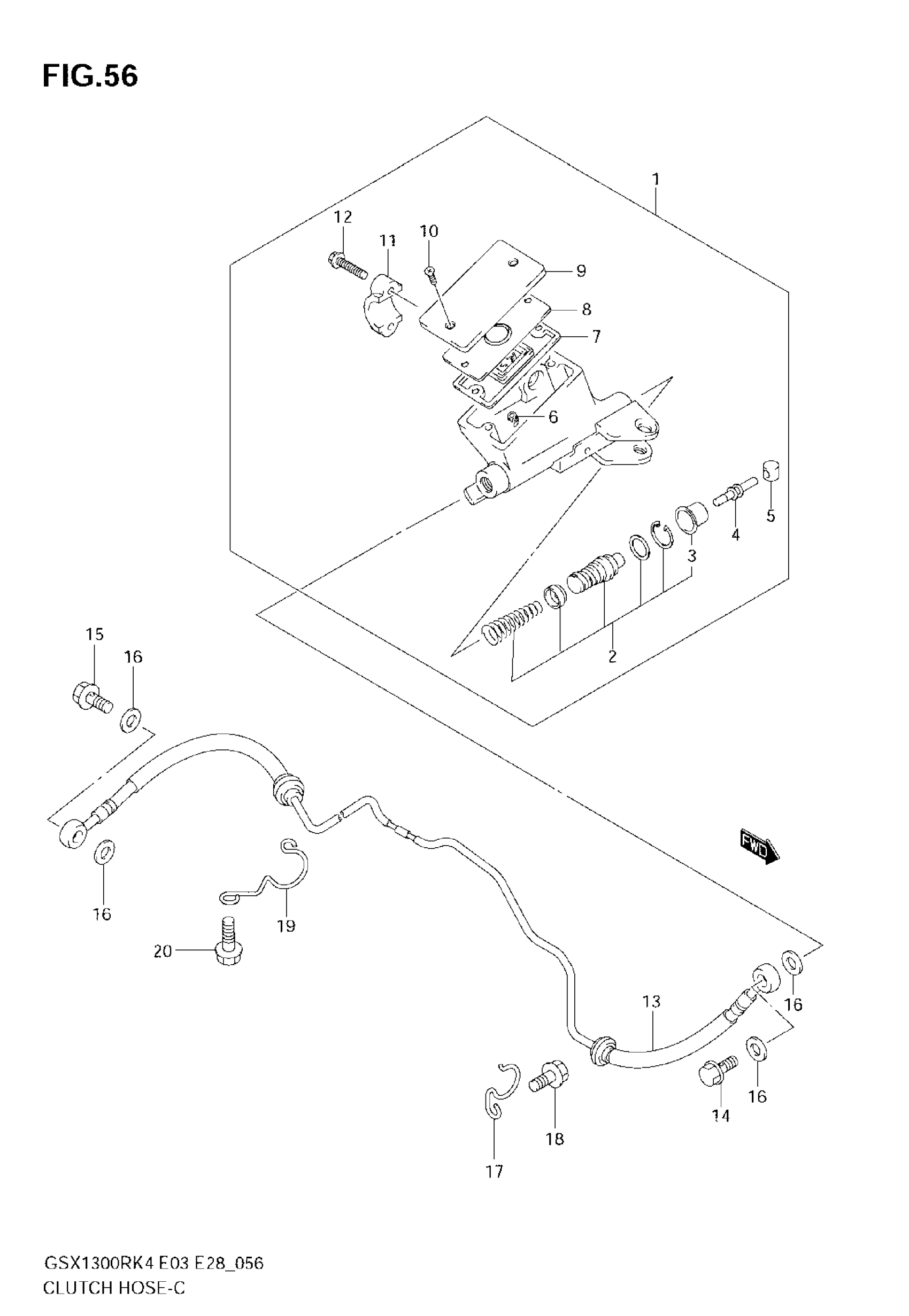

Suzuki GSX1300R (2007) CLUTCH HOSE Diagram

#

Description
Price

1

CYLINDER ASSY,C | Includes Item(s) 2 - 12 This part replaces 59800-24F00.

59800-24F01

$260.22

2

PISTON/CUP SET

59800-08810

$37.77

3

BOOT

59666-44300

$5.54

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.74

5

BUSH

59892-08A00

$4.84

6

PROTECTOR

59664-48B00

$12.43

7

DIAPHRAGM

59667-49460

$9.36

8

PLATE

59668-41C00

$8.92

9

CAP

59669-41C00

$32.03

10

SCREW

69689-49300

$1.81

11

.HOLDER

59671-36500

$12.01

12

BOLT (6X22)

59675-02FA0

$3.66

13

HOSE COMP,CLUTC This part replaces 59910-24F01.

59910-24F11

$292.65

14

UNION This part replaces 09360-10042.

09360-10062

$5.99

15

UNION This part replaces 09360-10041.

09360-10061

$6.07

16

WASHER (10X15X1.5)

09161-10009

$1.89

17

CLAMP, HOSE NO.1

59915-24F00

$12.83

18

BOLT, CLAMP | MODEL K4/K5/K6 This part replaces 01550-06123.

01550-0612A

$2.01

18

BOLT | MODEL K7

01550-0612B

$2.44

19

CLAMP,CLUTCH HOSE NO.2

59921-24F00

$14.00

20

BOLT | MODEL K4/K5/K6 This part replaces 01550-06163.

01550-0616A

$2.01

20

BOLT | MODEL K7

01550-0616B

$2.53
