1990 Suzuki GSX-R750L Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1990 Suzuki GSX-R750L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

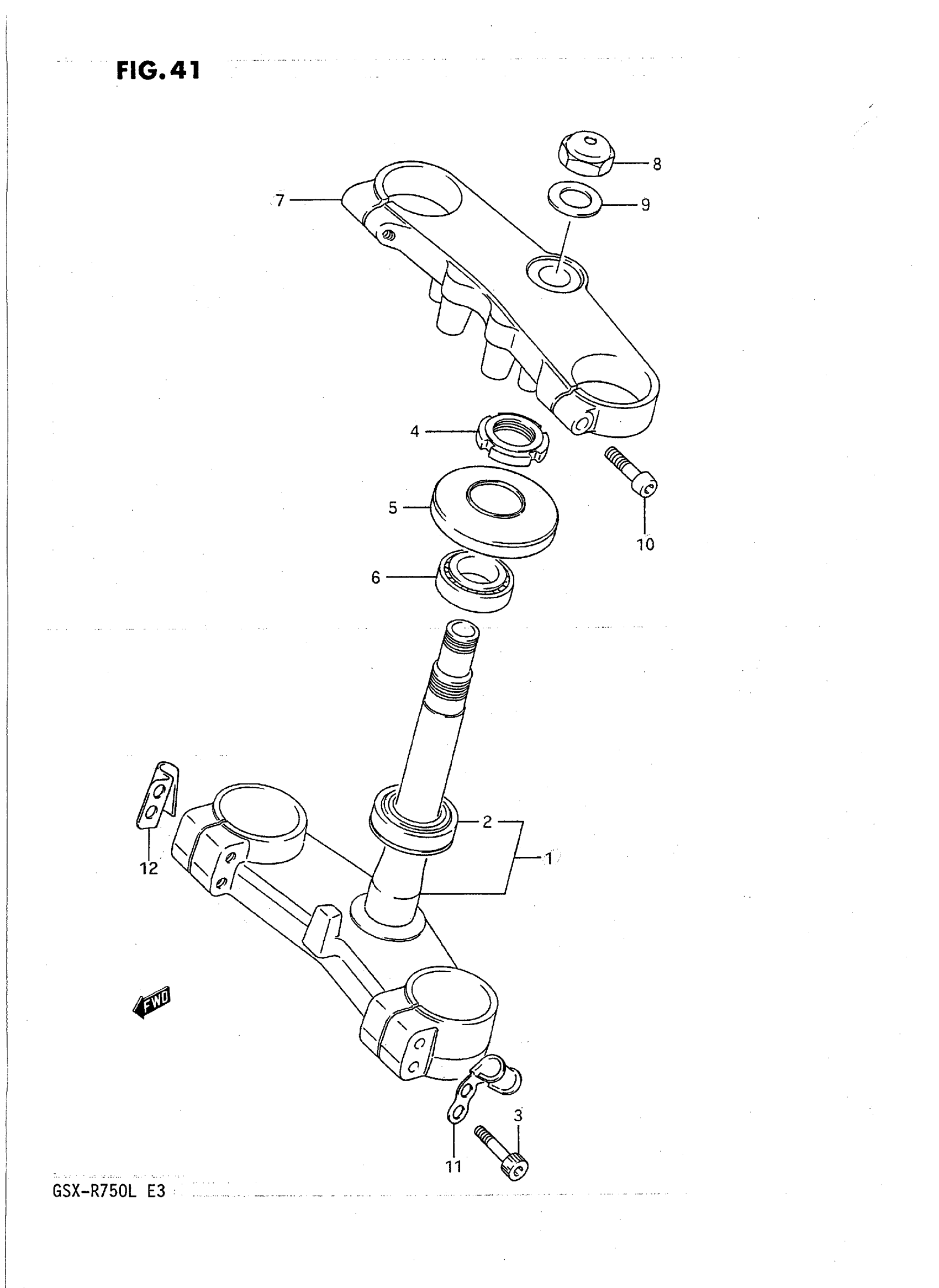

1990 Suzuki GSX-R750L Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | MODEL J This part replaces 51410-17C00.

51410-17C01

1
Out of stock

1

STEM, STEERING | MODEL K/L; Includes Item(s) 2

51410-17C01

1
Out of stock

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

1
Out of stock

3

BOLT,10X45 | MODEL J This part replaces 07110-10455.

09106-10022-XC0

4
Out of stock

3

BOLT,10X45 | MODEL K/L This part replaces 09106-10022.

09106-10022-XC0

4
Out of stock

4

NUT, STEERING STEM

51631-28000

1
Out of stock

5

SEAL,OIL This part replaces 09285-34007.

09285-34010

1
Out of stock

6

BEARING

09265-25008

1
Out of stock

7

BRACKET, UPPER | MODEL J/K This part replaces 51311-17C00.

51311-17C01

1
Out of stock

7

BRACKET, UPPER | MODEL L

51311-17C01

1
Out of stock

8

NUT This part replaces 51353-17C00.

51353-28A10

1
Out of stock

9

WASHER, STEM | MODEL J/K This part replaces 51354-38A01.

51356-24B01

1
Out of stock

9

WASHER, STEM | MODEL L This part replaces 51354-17D00.

51356-24B01

1
Out of stock

10

BOLT, L This part replaces 51328-17C00.

07130-1040B

2
Out of stock

11

CLAMP, METER CABLE | MODEL L

34938-17C00

1
Out of stock

12

CLAMP, CLUTCH CABLE | MODEL L

58285-17C00

1
Out of stock
