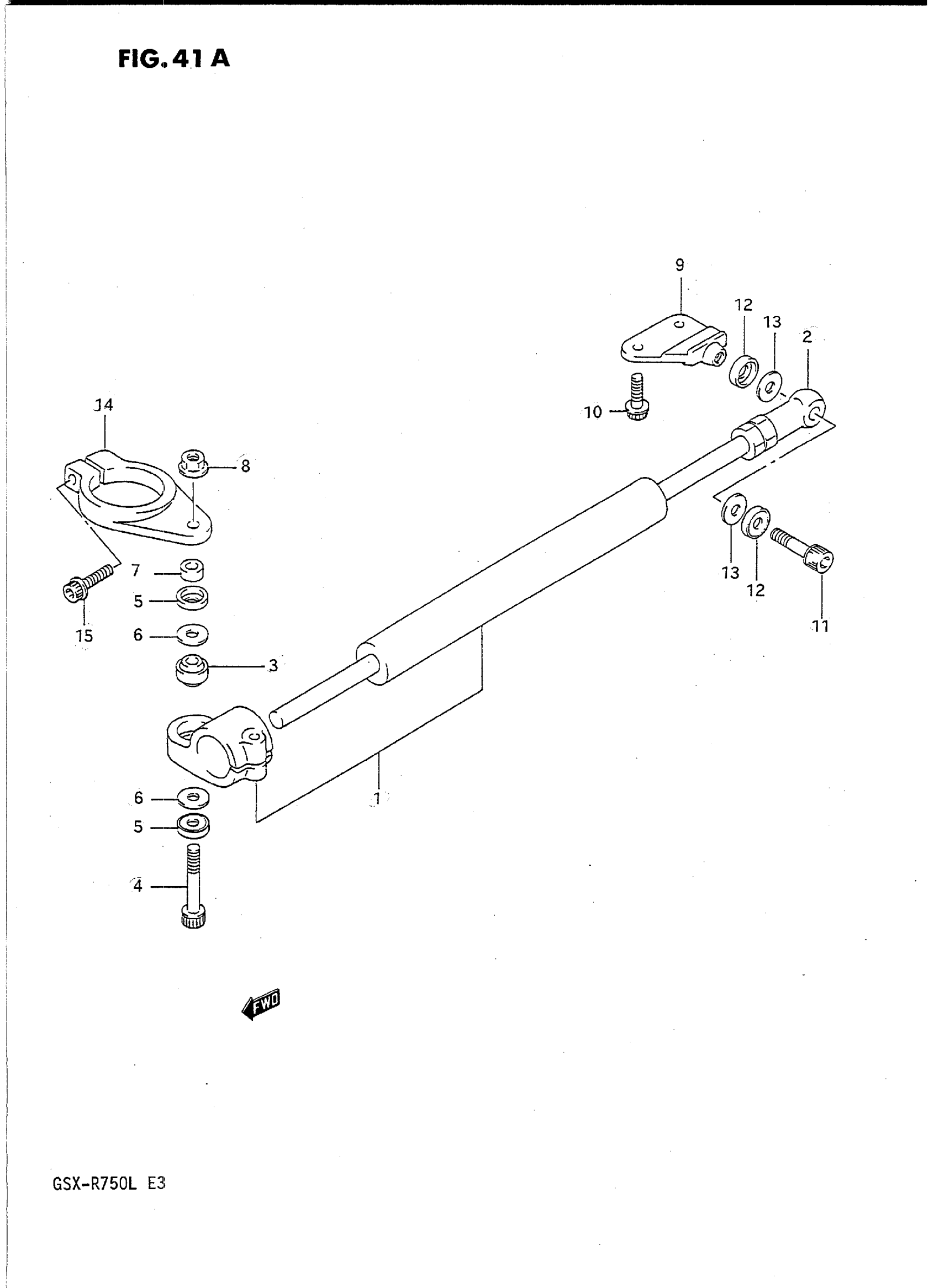

Suzuki GSX-R750L (1990) STEERING DAMPER (MODEL L) Diagram

#

Description
Price

1

DAMPER ASSY, STEERING | Includes Item(s) 2 - 3 This part replaces 51750-40C20.

51750-17E00

Unavailable

2

END, LOD

51760-40C01

Unavailable

3

BEARING

09269-08003

$46.80

4

BOLT This part replaces 07110-08407.

07130-08407

$2.88

5

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

6

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.38

7

SPACER,8.4X14X6 This part replaces 09180-08130.

09180-08130-XC0

Unavailable

8

NUT

08319-31087

$2.31

9

BRACKET, FORK

51781-40C10

Unavailable

10

BOLT This part replaces 07120-06258.

07120-06257

$2.80

11

BOLT This part replaces 07110-08357.

07130-08357

$2.92

12

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

13

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.38

14

BOSS, STEERING DAMPER

41680-17D00

Unavailable

15

BOLT This part replaces 07120-06258.

07120-06257

$2.80
