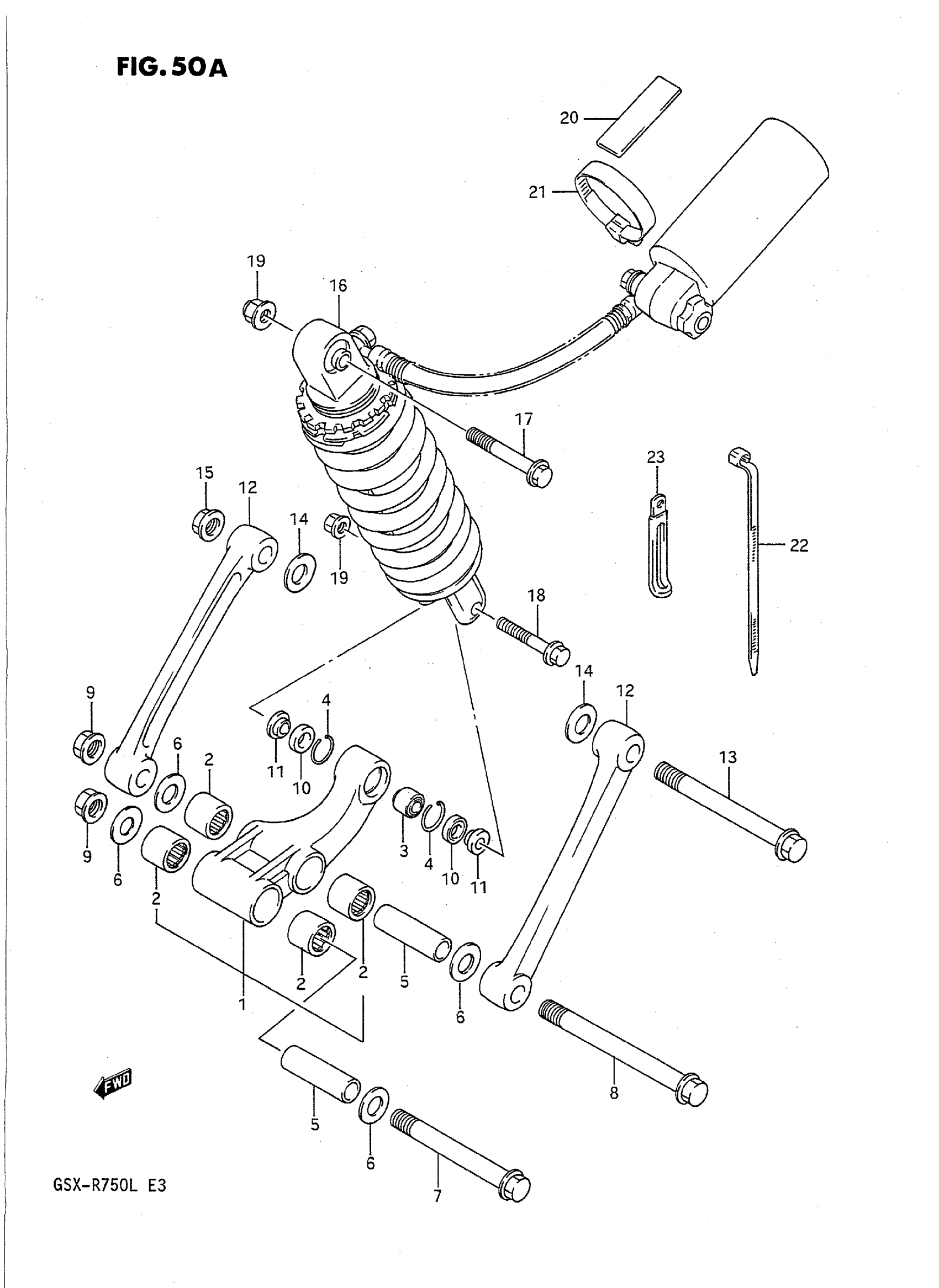

Suzuki GSX-R750L (1990) REAR CUSHION LEVER (MODEL L) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-17830

Unavailable

2

BEARING

09263-20071

$23.72

3

BEARING

62175-00B00

$57.58

4

RING

62657-34A01

$2.06

5

SPACER

62317-17C00

Unavailable

6

WASHER, THRUST

08211-14323

$4.18

7

SHAFT, FRONT

62621-17C00

$26.03

8

SHAFT, CENTER

62658-17C00

Unavailable

9

NUT This part replaces 08319-31148.

08319-3114A

$8.84

10

SEAL, DUST REAR

62683-43400

$6.40

11

SPACER

62684-43401

$12.13

12

ROD, REAR CUSHION

62641-17C00

Unavailable

13

SHAFT, UPPER

62658-17C00

Unavailable

14

WASHER, THRUST

08211-14323

$4.18

15

NUT This part replaces 08319-31148.

08319-3114A

$8.84

16

NO DESCRIPTION AVAILABLE This part replaces 62100-17D20.

62100-17E00

Unavailable

17

BOLT, UPPER

62311-08300

Unavailable

18

BOLT, LOWER

09103-10101

$4.35

19

NUT

08319-31107

$2.73

20

CUSHION, TANK

62331-07D00

Unavailable

21

.CLAMP This part replaces 09402-57501.

09402-57511

$14.47

22

CLAMP, HOSE

09407-18402

$2.21

23

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.76
