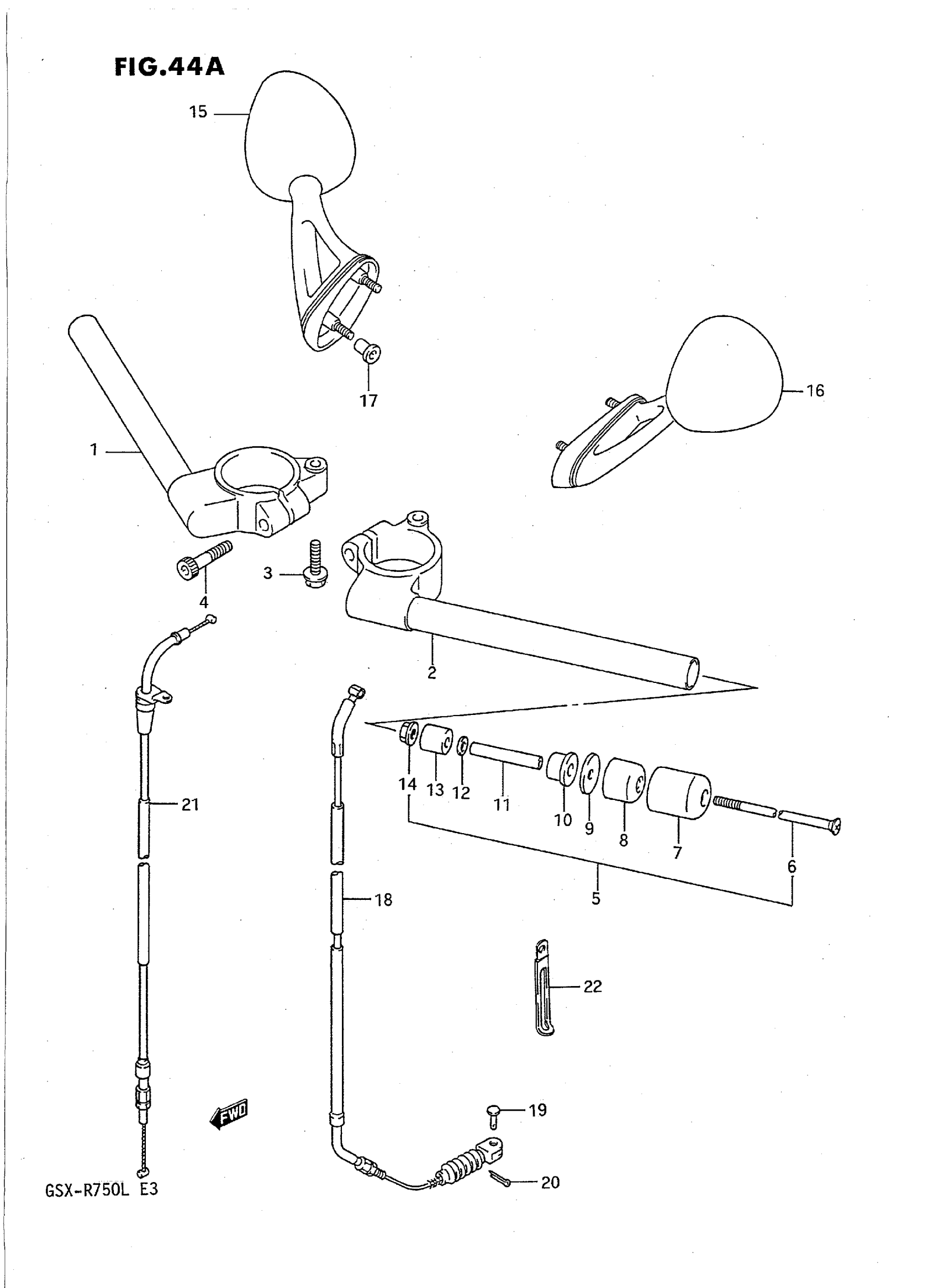

Suzuki GSX-R750L (1990) HANDLEBAR (MODEL L) Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-17C00

Unavailable

2

HANDLEBAR, LH

56151-17C00

Unavailable

3

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

4

BOLT This part replaces 07110-08355.

07130-0835B

$3.58

5

BALANCER SET,HA | Includes Item(s) 6 - 14 This part replaces 56200-17810.

56200-17813

Unavailable

6

SCREW

09127-06017

$2.80

7

CAP

56274-12C00

Unavailable

8

BALANCER

56271-17D00

Unavailable

9

SPACER This part replaces 56275-34400.

56275-34401

$4.53

10

EXPANDER, HANDLE BALANCER This part replaces 56272-17D00.

56272-26D10

$8.87

11

SPACER

56276-17D00

$4.78

12

WASHER This part replaces 08322-21067.

08322-01067

$1.86

13

EXPANDER

56272-44500

$4.16

14

NUT

09159-06024

$2.12

15

MIRROR ASSY, REAR VIEW RH

56500-17C02-291

Unavailable

16

MIRROR ASSY, REAR VIEW LH

56600-17C02-291

Unavailable

17

NUT, MIRROR

56619-17C00

$7.27

18

CABLE ASSY, CLUTCH

58200-07D00

Unavailable

19

PIN

09200-06011

Unavailable

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

21

CABLE,THROTTLE This part replaces 58300-17D00.

58300-17D01

Unavailable

21

CABLE ASSY, THROTTLE | CALIFORNIA ONLY

58300-40C00

Unavailable

22

CLAMP | CALIFOTNIA ONLY This part replaces 09404-06413.

09404-06039

$1.73
