2000 Suzuki GSX-R600 Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

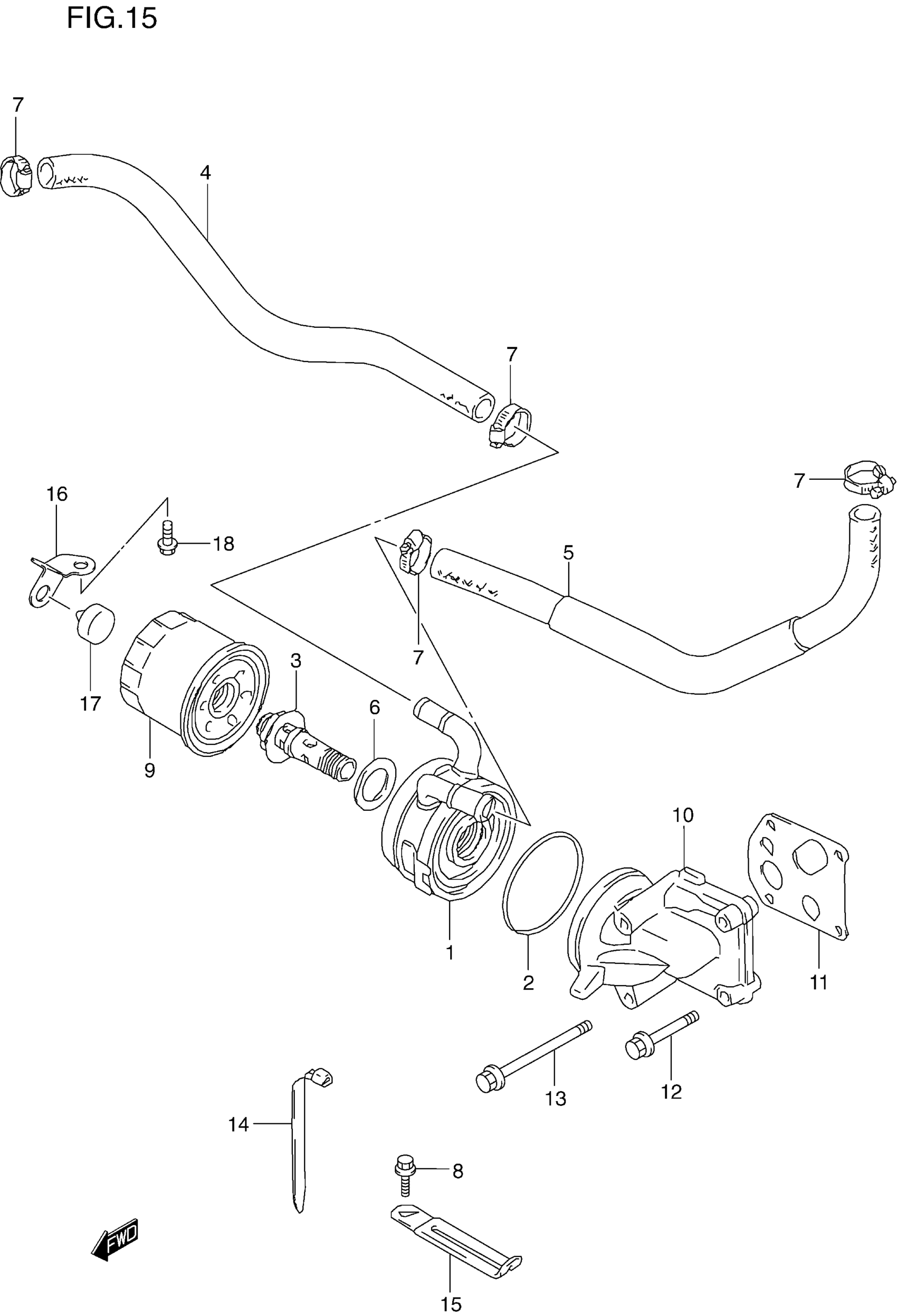

2000 Suzuki GSX-R600 Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL V/W This part replaces 16600-33E00.

16600-33800

1
Out of stock

1

COOLER ASSY, OIL | MODEL X/Y

16600-33E10

1
Out of stock

2

O RING (D:3.1,ID:63.9)

09280-64003

1
Out of stock

3

BOLT, UNION

16591-33C00

1
Out of stock

3

BOLT,OIL COOLER UNION | MODEL X/Y

16591-02F00

1
Out of stock

4

HOSE, OIL COOLER, WATER IN

16471-33E00

1
Out of stock

5

HOSE, OIL COOLER, WATER OUT

16461-33E00

1
Out of stock

6

WASHER | MODEL V/W

08221-22355

1
Out of stock

6

WASHER (25X34X0.7) | MODEL X/Y

09181-25160

1
Out of stock

7

CLAMP

09402-22511

4
Out of stock

8

BOLT (6X12) | E3,E28 This part replaces 09103-06083.

09103-06285

1
Out of stock

9

FILTER, ENGINE OIL This part replaces 16510-34E00.

16510-07J00

1
Out of stock

10

HOLDER, OIL FILTER

16515-34E00

1
Out of stock

11

GASKET

16516-33E00

1
Out of stock

12

BOLT

09103-06194

2
Out of stock

13

BOLT

09103-06195

2
Out of stock

14

CLAMP

09407-25401

1
Out of stock

15

CLAMP(L:80) | E3,E28 This part replaces 09404-06434.

09404-06036

1
Out of stock

16

PLATE, OIL FILTER DAMPER | MODEL Y

16519-33E00

1
Out of stock

17

DAMPER, OIL FILTER | MODEL Y

09321-10002

1
Out of stock

18

BOLT (8X16) | MODEL Y This part replaces 01550-08163.

01550-0816A

1
Out of stock
← Muffler Radiator →
