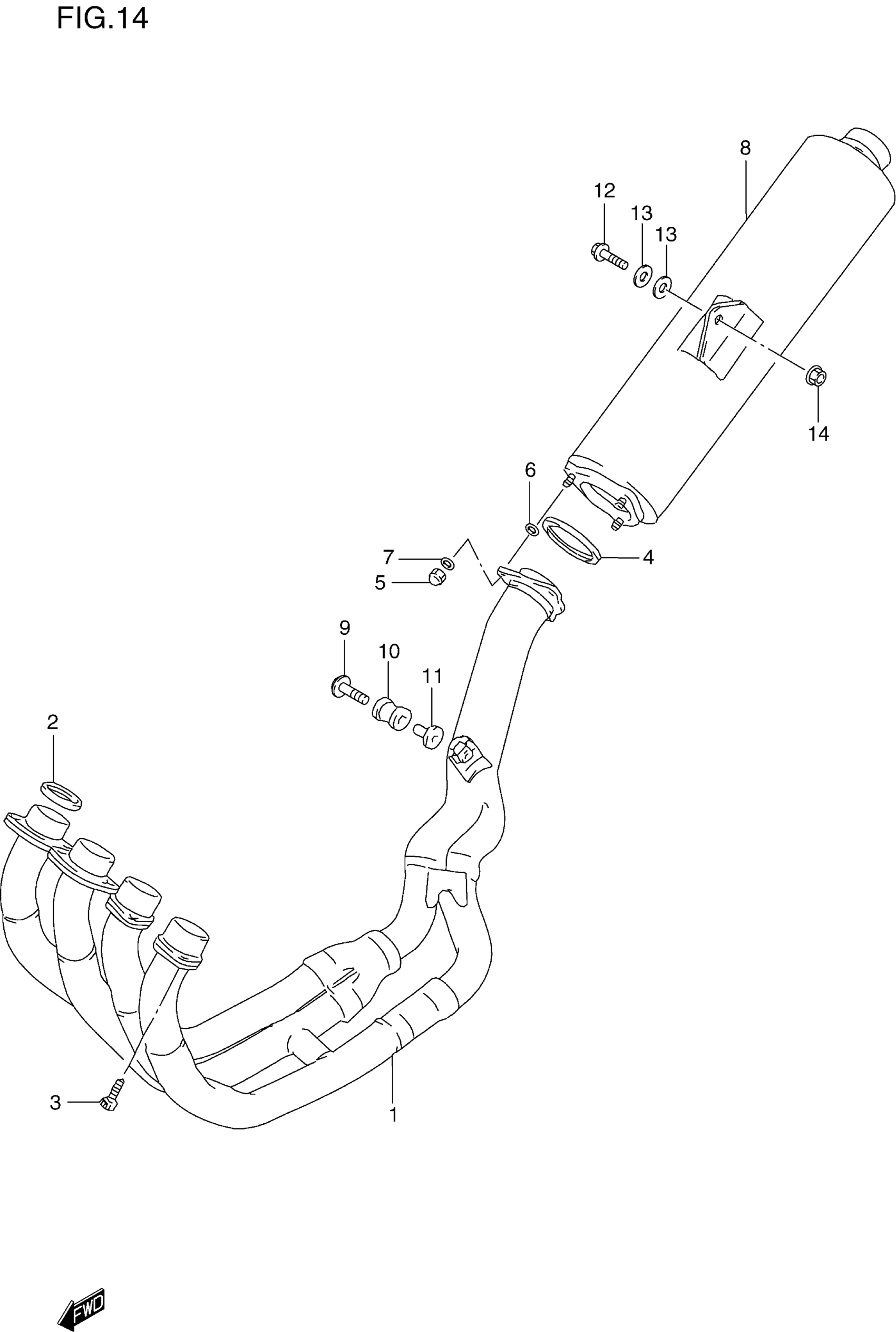

Suzuki GSX-R600 (2000) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | MODEL V

14100-34E00

Unavailable

1

PIPE, EXHAUST | MODEL W/X/Y

14100-34E20

Unavailable

2

GASKET This part replaces 14181-46E00.

14181-46E10

$6.61

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.04

4

GASKET

14181-33E00

$9.23

5

NUT | MODEL V/W/X This part replaces 09159-08101.

09159-08116

$9.78

5

NUT | MODEL Y This part replaces 09159-08115.

09159-08116

$9.78

6

WASHER (8.5X18X2.0) This part replaces 09160-08114.

09160-08120

$2.21

7

O RING (D:1.9,ID:7.8)

09280-08012

$3.32

8

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 14310-34E00-H01.

14310-34E01-H01

Unavailable

8

MUFFLER ASSY | MODEL W/X This part replaces 14310-33E00-H01.

14310-33E01-H01

Unavailable

8

MUFFLER ASSY | MODEL Y

14310-33E01-H01

Unavailable

9

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$4.73

10

CUSHION

09320-12048

$4.62

11

SPACER

09180-08152

$5.26

12

BOLT

01550-08357

$3.19

13

WASHER | MODEL V This part replaces 09160-08021.

09160-08130

$2.01

13

WASHER | MODEL W/X/Y This part replaces 09160-08131.

09160-08130

$2.01

14

NUT This part replaces 08361-25088.

08361-2508A

$1.97
