2000 Suzuki GSX-R600 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

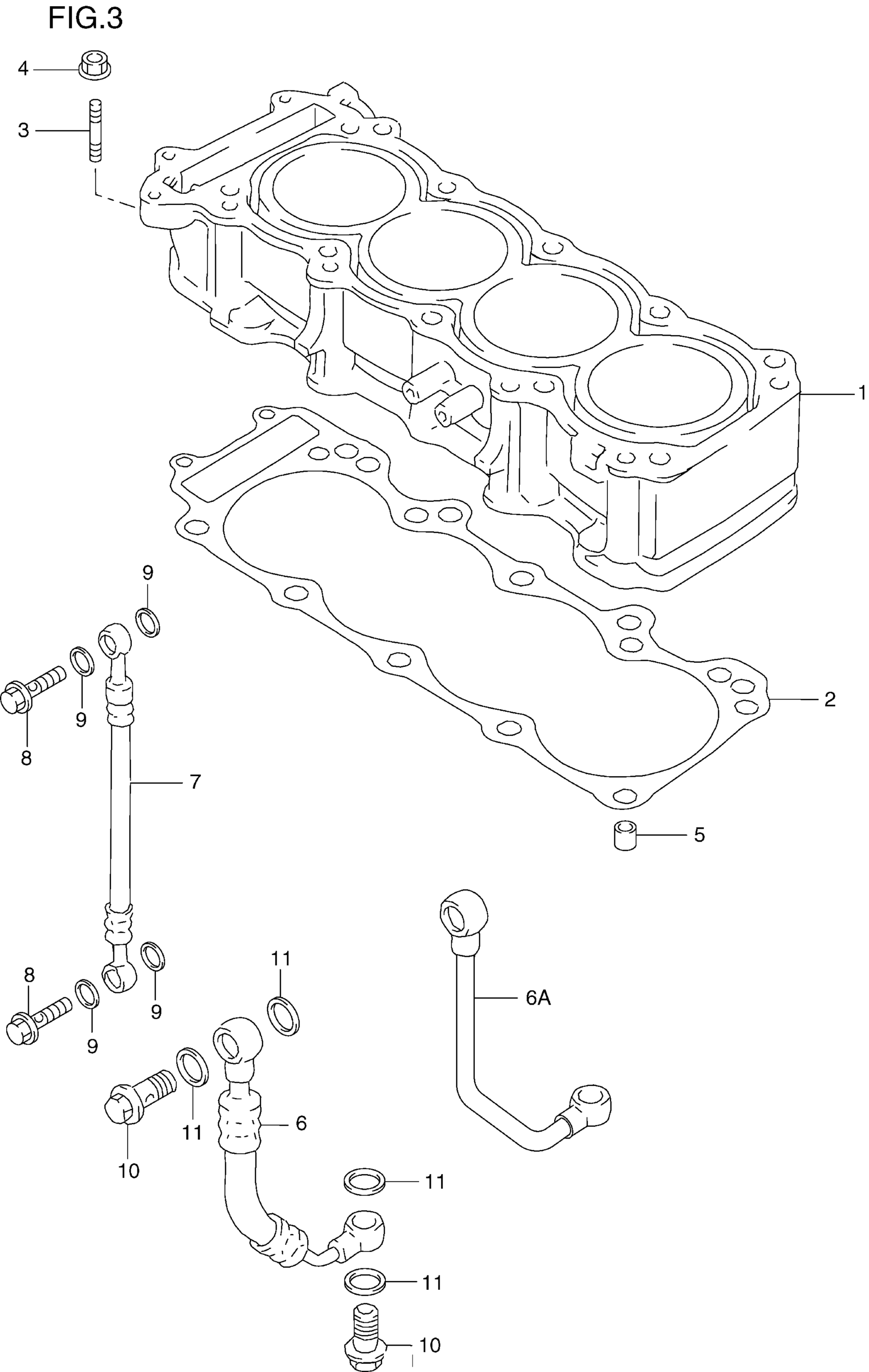

2000 Suzuki GSX-R600 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER | MODEL V

11211-34E00

1
Out of stock

1

CYLINDER | MDOEL W/X/Y

11211-34E10

1
Out of stock

2

GASKET

11241-33E00

1
Out of stock

3

STUD BOLT This part replaces 01421-06203.

01421-0620A

2
Out of stock

4

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

5

PIN

04211-11169

2
Out of stock

6

HOSE, OIL RH | MODEL V/X/Y

11281-33E00

1
Out of stock

6A

HOSE, OIL RH | MODEL W (r)11281-33E00 This part replaces 11280-33E50.

11281-33E00

1
Out of stock

7

HOSE, OIL LH

11282-33E00

1
Out of stock

8

UNION This part replaces 09360-10040.

09360-10062

2
Out of stock

9

GASKET

09168-10007

4
Out of stock

10

BOLT, UNION

09360-14012

2
Out of stock

11

.GASKET (14X20X1.5)

09168-14015

4
Out of stock
