2000 Suzuki GSX-R600 CAM Chain Diagram

← All diagrams

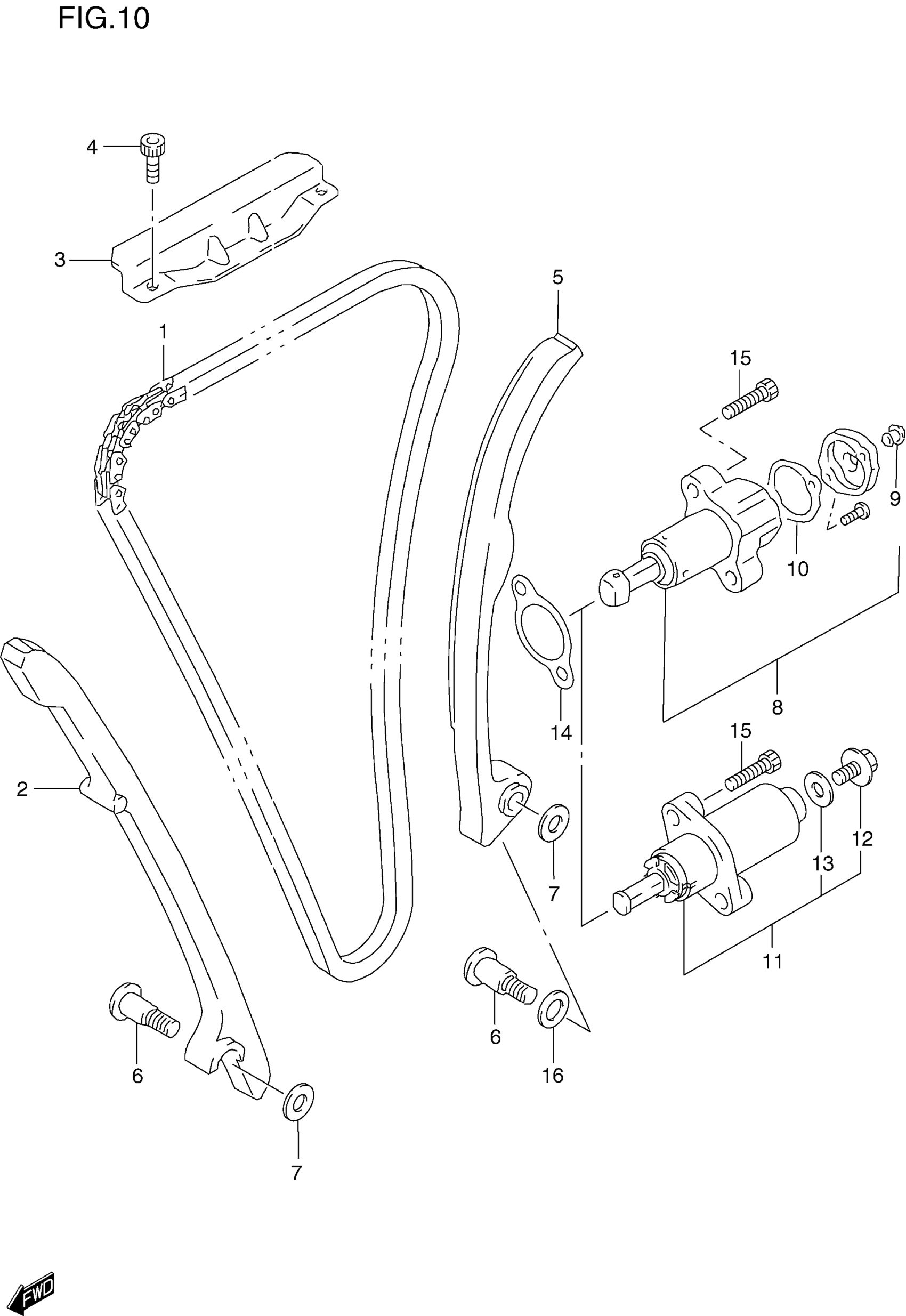

Find the part on the CAM Chain diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki GSX-R600 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE (128LE)

12760-38A11

1
Out of stock

2

GUIDE,CAM CHAIN This part replaces 12771-33E00.

12771-33E01

1
Out of stock

3

GUIDE,CAM CHAIN This part replaces 12782-33E01.

12782-33E02

1
Out of stock

4

BOLT This part replaces 07130-06123.

07130-0612A

2
Out of stock

5

TENSIONER, CAM CHAIN | MODEL V

12811-33E00

1
Out of stock

5

TENSIONER, CAM CHAIN | MODEL W ~E.NO.N714-114663~

12811-33E10

1
Out of stock

5

TENSIONER, CAM CHAIN | MODEL W E.NO.N714-114664~

12811-33E00

1
Out of stock

5

TENSIONER, CAM CHAIN | MODEL X/Y

12811-33E30

1
Out of stock

6

BOLT | MODEL V This part replaces 12812-26B01.

12812-26B02

2
Out of stock

6

BOLT | MODEL W/X/Y

12812-26B02

2
Out of stock

7

WASHER This part replaces 08322-01083.

08322-0108A

2
Out of stock

8

ADJUSTER ASSY, TENSIONER | MODEL V This part replaces 12830-01D11.

12830-01D12

1
Out of stock

8

ADJUSTER/TENSIO | MODEL W ~E.NO.N714-114663 (r)12830-34810 ADJUSTER AND TENSIONER SET This part replaces 12830-34E00.

12830-34810

1
Out of stock

8

ADJUSTER ASSY, TENSIONER | MDOEL W E.NO.N714-114664~; Includes Item(s) 9 - 10

12830-01D12

1
Out of stock

9

PLUG | MODEL V/W

12839-38200

1
Out of stock

10

GASKET | MODEL V/W

12838-38200-H17

1
Out of stock

11

ADJUSTER ASSY, TENSIONER | MODEL X/Y; Includes Item(s) 12 - 13

12830-33E13

1
Out of stock

12

PLUG | MODEL X/Y

12834-33E00

1
Out of stock

13

GASKET | MODEL X/Y

12837-33E00

1
Out of stock

14

.GASKET,TENSIONER ADJUSTER

12837-24A10

1
Out of stock

15

BOLT | MODEL V/W This part replaces 07130-06253.

07130-0625B

2
Out of stock

15

BOLT | MODEL X/Y This part replaces 07130-06303.

07130-0630B

2
Out of stock

16

WASHER | MODEL X/Y

09164-11005

1
Out of stock
