2000 Suzuki GSX-R600 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

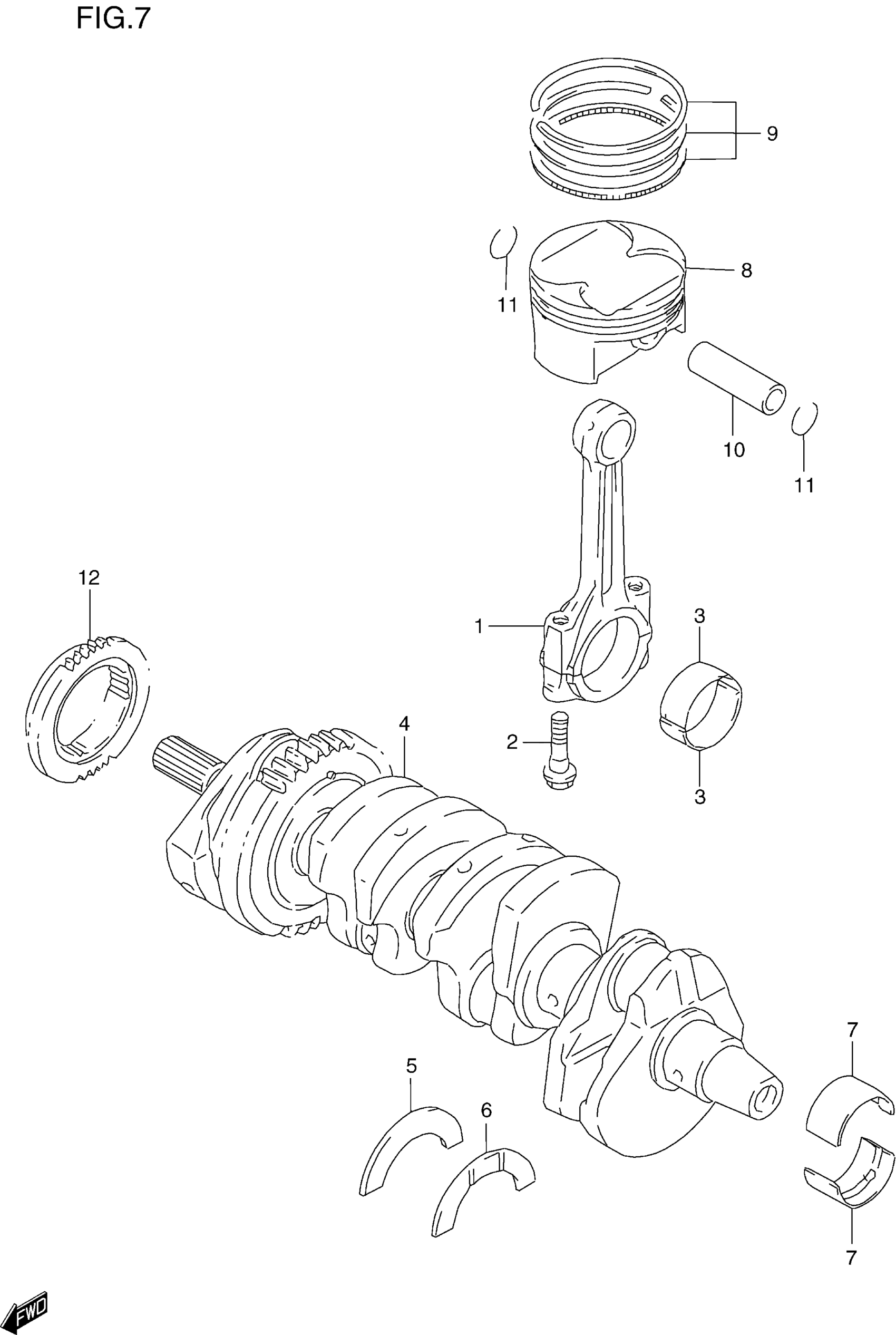

2000 Suzuki GSX-R600 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 12160-34E00.

12160-34E12

4
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL W/X This part replaces 12160-34E10.

12160-34E12

4
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 12160-34E11.

12160-34E12

4
Out of stock

2

BOLT

12163-33E00

8
Out of stock

3

BEARING, CRANK PIN (GREEN)

12164-34E00-0A0

8
Out of stock

3

BEARING, CRANK PIN (BLACK)

12164-34E00-0B0

8
Out of stock

3

BEARING, CRANK PIN (BROWN)

12164-34E00-0C0

8
Out of stock

3

BEARING, CRANK PIN (YELLOW)

12164-34E00-0D0

8
Out of stock

4

CRANKSHAFT SET | Includes Item(s) 5 - 6

12000-34810

1
Out of stock

5

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

1
Out of stock

6

BEARING, THRUST LH (RED)

12228-17E00-0A0

1
Out of stock

6

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

1
Out of stock

6

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

1
Out of stock

6

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

1
Out of stock

6

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

1
Out of stock

6

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

1
Out of stock

7

BEARING, CRANKSHAFT (GREEN) | MODEL V

12229-31E50-0A0

10
Out of stock

7

BEARING, CRANKSHAFT (BLACK) | MODEL V

12229-31E50-0B0

10
Out of stock

7

BEARING, CRANKSHAFT (BROWN) | MODEL V

12229-31E50-0C0

10
Out of stock

7

BEARING, CRANKSHAFT (YELLOW) | MODEL V

12229-31E50-0D0

10
Out of stock

7

BEARING, CRANKSHAFT (GREEN) | MODEL W/X/Y

12229-34E00-0A0

10
Out of stock

7

BEARING, CRANKSHAFT (BLACK) | MODEL W/X/Y

12229-34E00-0B0

10
Out of stock

7

BEARING, CRANKSHAFT (BROWN) | MODEL W/X/Y

12229-34E00-0C0

10
Out of stock

7

BEARING, CRANKSHAFT (YELLOW) | MODEL W/X/Y

12229-34E00-0D0

10
Out of stock

8

PISTON | MODEL V

12111-34E00-0F0

4
Out of stock

8

PISTON | MODEL W/X/Y

12111-34E11-0F0

4
Out of stock

9

RING SET, PISTON | MODEL V/W

12140-34E10

4
Out of stock

9

RING SET, PISTON | MODEL X/Y

12140-34E20

4
Out of stock

10

PIN, PISTON | MODEL V

12151-34E00

4
Out of stock

10

PIN, PISTON | MODEL W/X/Y

12151-34E10

4
Out of stock

11

CIRCLIP

09381-15001

8
Out of stock

12

SPROCKET, CAM CHAIN | MODEL V

12731-33E00

1
Out of stock

12

SPROCKET, CAM CHAIN | MODEL W/X/Y

12731-33E10

1
Out of stock
