2000 Suzuki GSX-R600 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

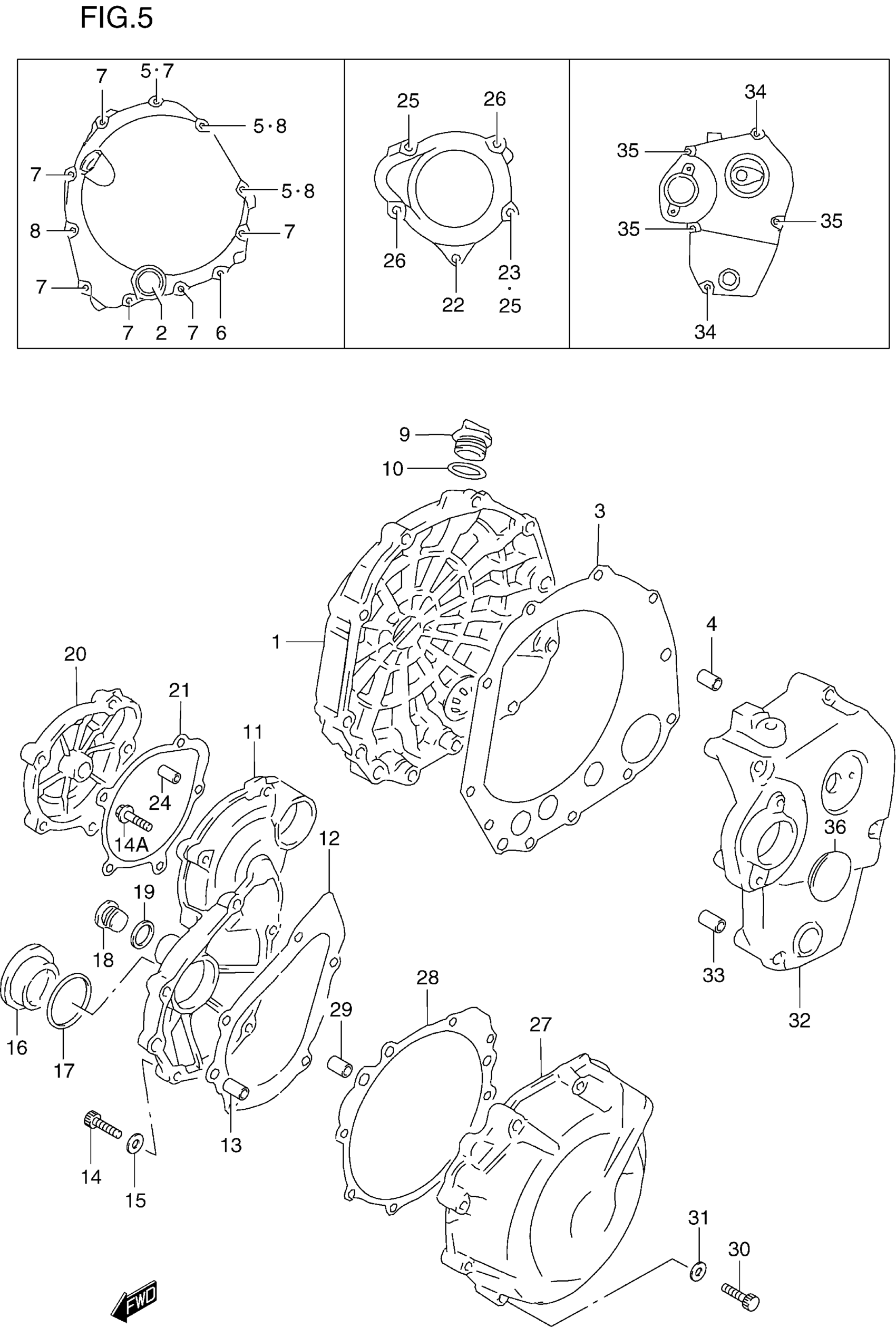

2000 Suzuki GSX-R600 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2

11340-33E00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER

11482-33E01

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

GASKET (5.8X11X1.2) | MODEL V/W

09168-06024

3
Out of stock

5

GASKET (5.8X13X1.2) | MODEL X/Y

09168-06023

3
Out of stock

6

BOLT | MODEL V This part replaces 07130-06253.

07130-0625B

1
Out of stock

6

BOLT, CENTER | MODEL W/X/Y This part replaces 07120-06253.

07120-0625A

1
Out of stock

7

BOLT | MODEL V This part replaces 07130-06303.

07130-0630B

7
Out of stock

7

BOLT | MODEL W/X/Y This part replaces 07120-06303.

07120-0630B

7
Out of stock

8

BOLT, STATOR | MODEL V This part replaces 07130-06403.

07130-0640B

3
Out of stock

8

BOLT | MODEL W/X/Y This part replaces 07120-06403.

07120-0640B

3
Out of stock

9

.PLUG This part replaces 09259-20008.

09259-20008-XC0

1
Out of stock

10

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

11

COVER, STARTER CLUTCH | MODEL V

11381-33E02

1
Out of stock

11

COVER, STARTER CLUTCH | MODEL W/X/Y

11381-33E51

1
Out of stock

12

GASKET | MODEL V/W This part replaces 11491-34E00.

11491-33E02

1
Out of stock

12

GASKET | MODEL X/Y

11491-33E02

1
Out of stock

13

PIN

04211-09149

2
Out of stock

14

BOLT | MODEL V This part replaces 07130-06253.

07130-0625B

4
Out of stock

14

BOLT, CENTER | MDOEL W/X/Y This part replaces 07120-06253.

07120-0625A

4
Out of stock

14A

BOLT | MODEL W/X/Y This part replaces 07120-06353.

07120-0635B

1
Out of stock

15

GASKET (5.8X11X1.2) | MODEL V/W

09168-06024

1
Out of stock

15

GASKET (5.8X13X1.2) | MODEL X/Y

09168-06023

1
Out of stock

16

PLUG, SHAFT HOLE

09259-36016-20H

1
Out of stock

17

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

18

PLUG, TDC | MODEL V

09248-16008

1
Out of stock

18

PLUG, TDC (16X8) | MODEL W/X/Y

09248-16012

1
Out of stock

19

GASKET

09168-16002

1
Out of stock

20

CAP, STARTER IDLE GEAR

11382-33E00

1
Out of stock

21

GASKET

11492-33E00

1
Out of stock

22

BOLT | MODEL V This part replaces 07130-06553.

07130-0655B

1
Out of stock

22

BOLT | MODEL W/X/Y This part replaces 07120-06553.

07120-0655B

1
Out of stock

23

GASKET (5.8X11X1.2) | MODEL V/W

09168-06024

1
Out of stock

23

GASKET (5.8X13X1.2) | MODEL X/Y

09168-06023

1
Out of stock

24

PIN

04211-09149

2
Out of stock

25

BOLT | MODEL V This part replaces 07130-06253.

07130-0625B

2
Out of stock

25

BOLT, CENTER | MODEL W/X/Y This part replaces 07120-06253.

07120-0625A

2
Out of stock

26

BOLT | MODEL V This part replaces 07130-06353.

07130-0635B

2
Out of stock

26

BOLT | MODEL W/X/Y This part replaces 07120-06353.

07120-0635B

2
Out of stock

27

COVER, MANGETO

11351-33E01

1
Out of stock

28

GASKET

11483-33E01

1
Out of stock

29

PIN

04211-09149

2
Out of stock

30

BOLT | MODEL V This part replaces 07130-06303.

07130-0630B

8
Out of stock

30

BOLT | MODEL W/X/Y This part replaces 07120-06303.

07120-0630B

8
Out of stock

31

GASKET (5.8X11X1.2) | MODEL V/W

09168-06024

2
Out of stock

31

GASKET (5.8X13X1.2) | MODEL X/Y

09168-06023

2
Out of stock

32

COVER, ENGINE SPROCKET

11361-33E03

1
Out of stock

33

PIN

04211-09149

2
Out of stock

34

BOLT This part replaces 07130-06553.

07130-0655B

2
Out of stock

35

BOLT This part replaces 07130-06653.

07130-0665B

3
Out of stock

36

CAP, CLUTCH RELEASE ADJUST

09250-30003

1
Out of stock
