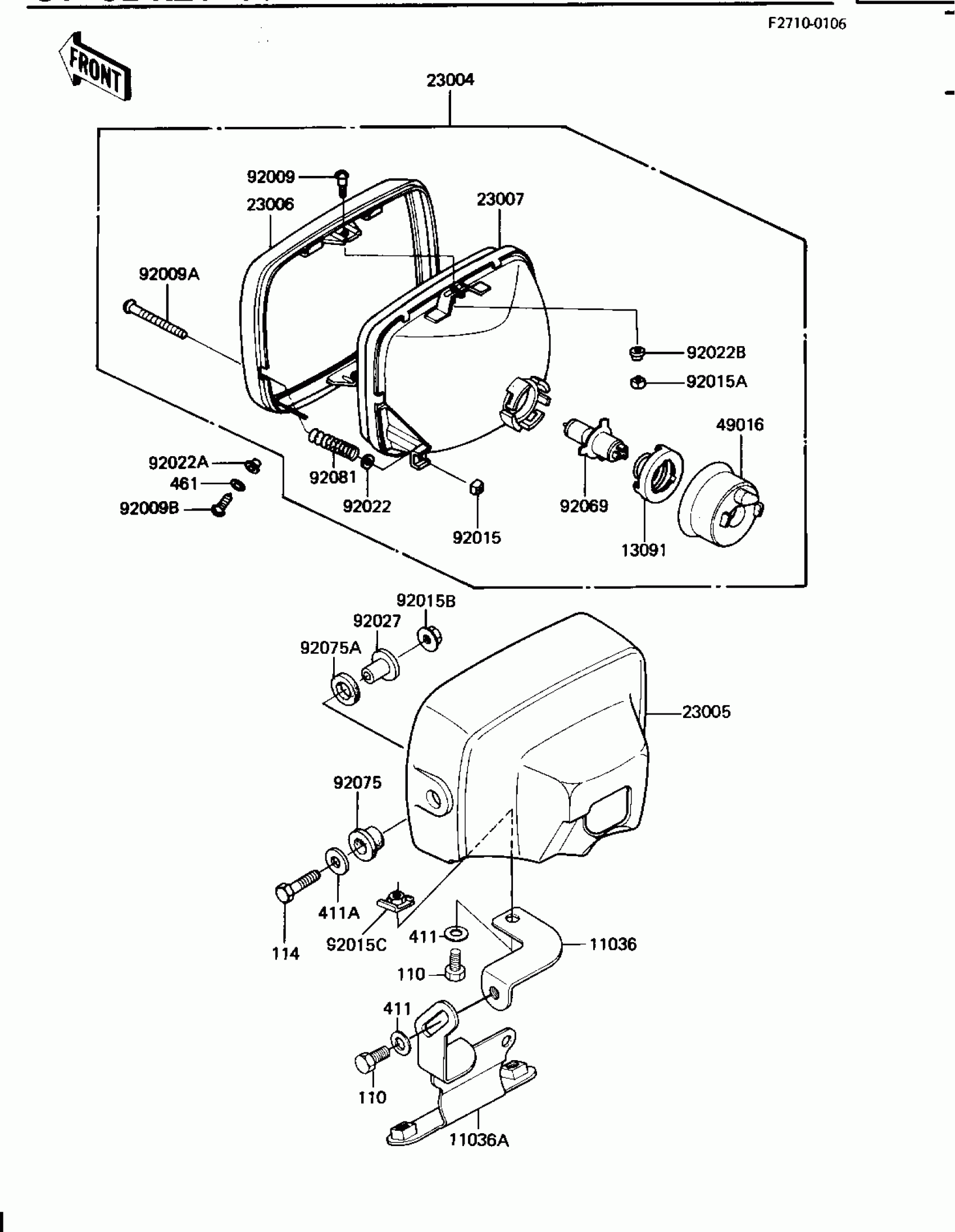

Kawasaki GPz HEADLIGHT (KZ1100-B2) Diagram

#

Description
Price

11036

BRACKET-A,HEAD LAMP,

11036-1354

Unavailable

11036A

BRACKET-A,HEAD LAMP,B

11036-1355

Unavailable

13091

HOLDER,HEAD LAMP SOCK

13091-1036

Unavailable

23004

LAMP-HEAD

23004-1116

$693.74

23005

BODY-COMP-HEAD LAMP

23005-1022-6Z

Unavailable

23006

RIM-LAMP,BLACK

23006-1024

Unavailable

23007

LENS-COMP

23007-1041

$247.81

49016

COVER,HEAD LAMP SOCKE

49016-1023

Unavailable

92009

SCREW,PAN HEAD,5X12

23019-023

$4.78

92009A

SCREW,4MM,FOCUS ADJUST

92009-1047

$3.90

92009B

SCREW,5MM

92011-024

$2.12

92015

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

92015A

NUT,5MM

23020-023

Unavailable

92015B

NUT,FLANGED,8MM

92015-1014

$0.66

92015C

NUT,HEAD LAMP BODY FT

92015-1050

Unavailable

92022

WASHER,4.1X8X0.8

23021-004

Unavailable

92022A

WASHER

23021-010

$3.43

92022B

WASHER,PLAIN,5MM

23021-012

Unavailable

92027

COLLAR,L=20

92027-1131

$8.71

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER,HEAD LAMP FITTING

92075-1109

$5.42

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

$4.42

92081

SPRING,HEAD LAMP LENS

92081-1103

$4.10

110

BOLT-UPSET 6X14

112B0614

Unavailable

114

BOLT-SMALL-UPSET

115C0835

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

411A

WASHER PLAIN

411F0800

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable
