1986 Kawasaki GPZ Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1986 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

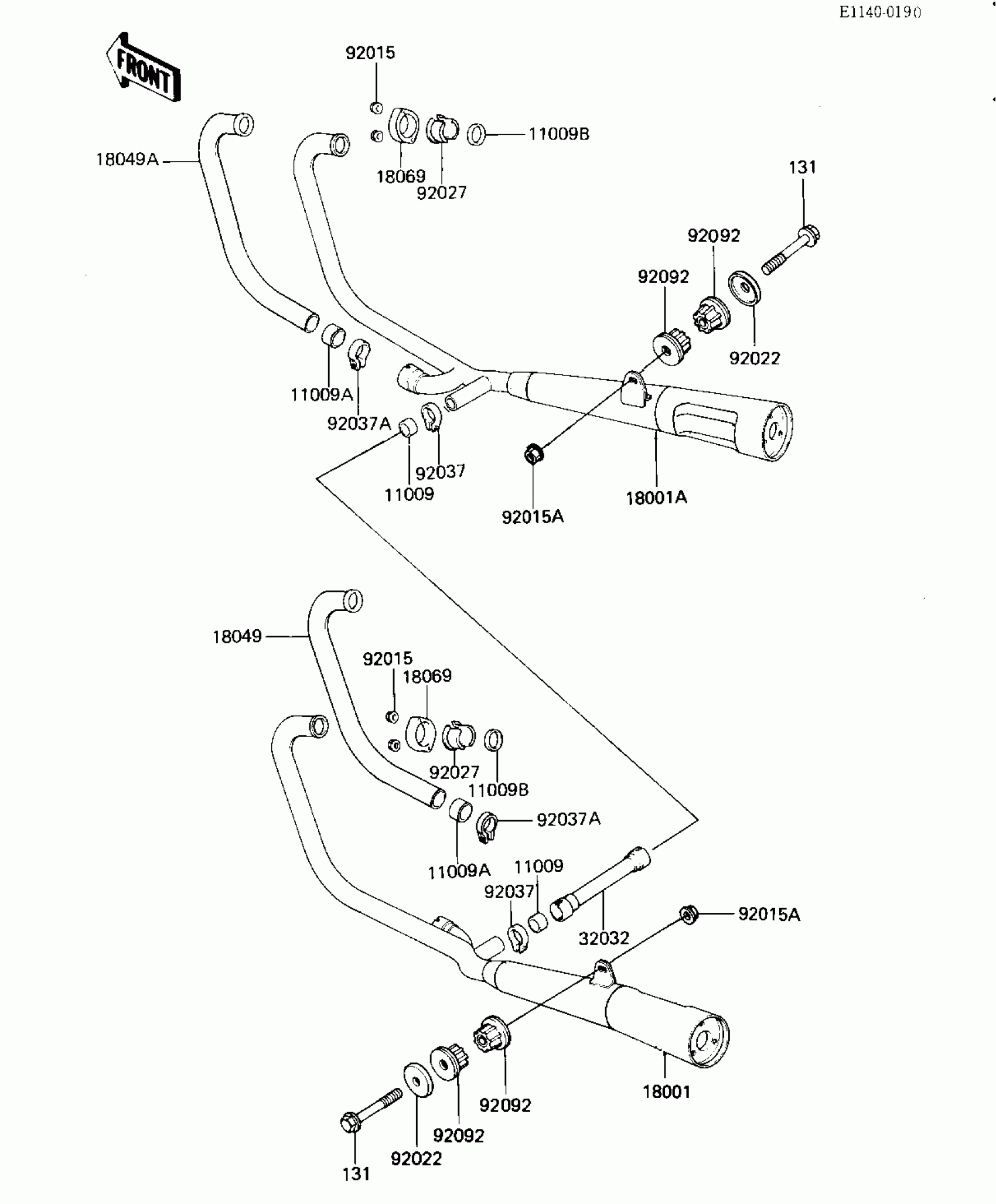

1986 Kawasaki GPZ Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$22.91

In stock

11009A

1

$21.24

In stock

11009B

1

$6.55

In stock

18001

MUFFLER,LH

18001-1486

1

$443.12

In stock

18001A

MUFFLER,RH

18001-1487

1

$462.20

In stock

18049

PIPE-EXHAUST,#2

18049-1219

1

$104.24

In stock

18049A

PIPE-EXHAUST,#3

18049-1220

1

$153.97

In stock

18069

1

$22.27

In stock

32032

PIPE,MUFFLER CONNECTI

32032-1690

1
Out of stock

92015

NUT,CAP,6MM,BLACK

92015-1170

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1387

1

$3.43

In stock

92022

1

$5.42

In stock

92027

1

$9.56

In stock

92037

CLAMP,37MM,BLACK

92037-1464

1
Out of stock

92037A

CLAMP,42MM,BLACK

92037-1350

1
Out of stock

92092

1

$13.70

In stock

131

BOLT-FLANGED,10X55,BLACK

131J1055

1
Out of stock
