1982 Kawasaki GPZ Cylinder/pistons Diagram

← All diagrams

Find the part on the Cylinder/pistons diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

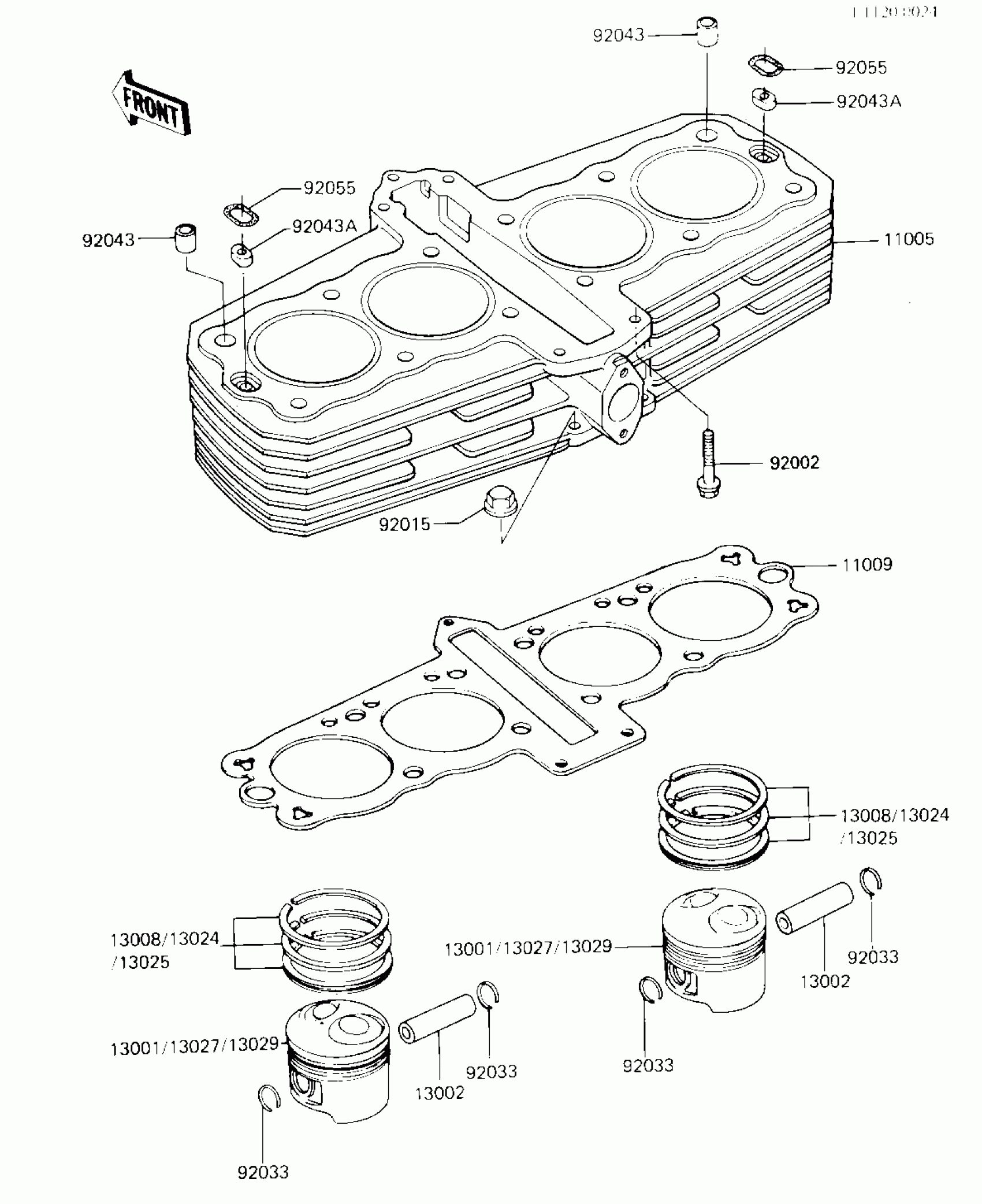

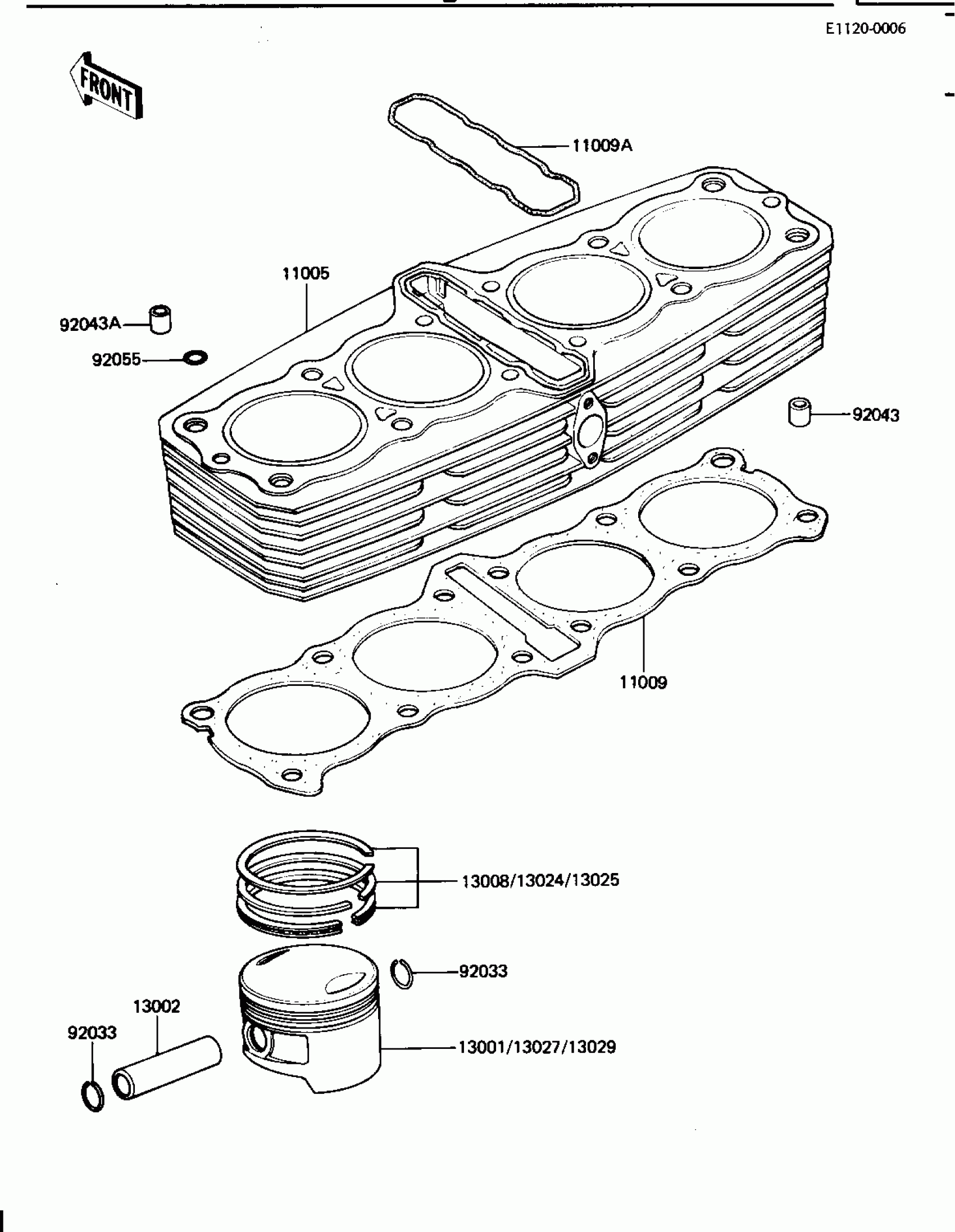

1982 Kawasaki GPZ Cylinder/pistons Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE,BLACK

11005-1325

1
Out of stock

11009

GASKET,CYLINDER BASE

11060-1067

1
Out of stock

11009A

GASKET,CYLINDER

11009-1208

1

$83.66

In stock

13001

PISTON-ENGINE,STD

13001-1118

1
Out of stock

13002

PIN-PISTON

13002-1013

1

$5.25

In stock

13008

RING-SET-PISTON,STD

13008-5037

1
Out of stock

13024

RING-SET PISTON LL

13024-5023

1
Out of stock

13025

1

$132.07

In stock

13027

PISTON-ENGINE LL,0/S

13027-1055

1
Out of stock

13029

PISTON-ENGINE L,0/S

13029-1057

1
Out of stock

92033

RING-SNAP

92033-1054

1

$2.03

In stock

92043

PIN,11X14X12.3

92043-1266

1

$1.00

In stock

92043A

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92055

RING-O,OD=18.5

92055-1148

1

$11.78

In stock
