1982 Kawasaki GPZ Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

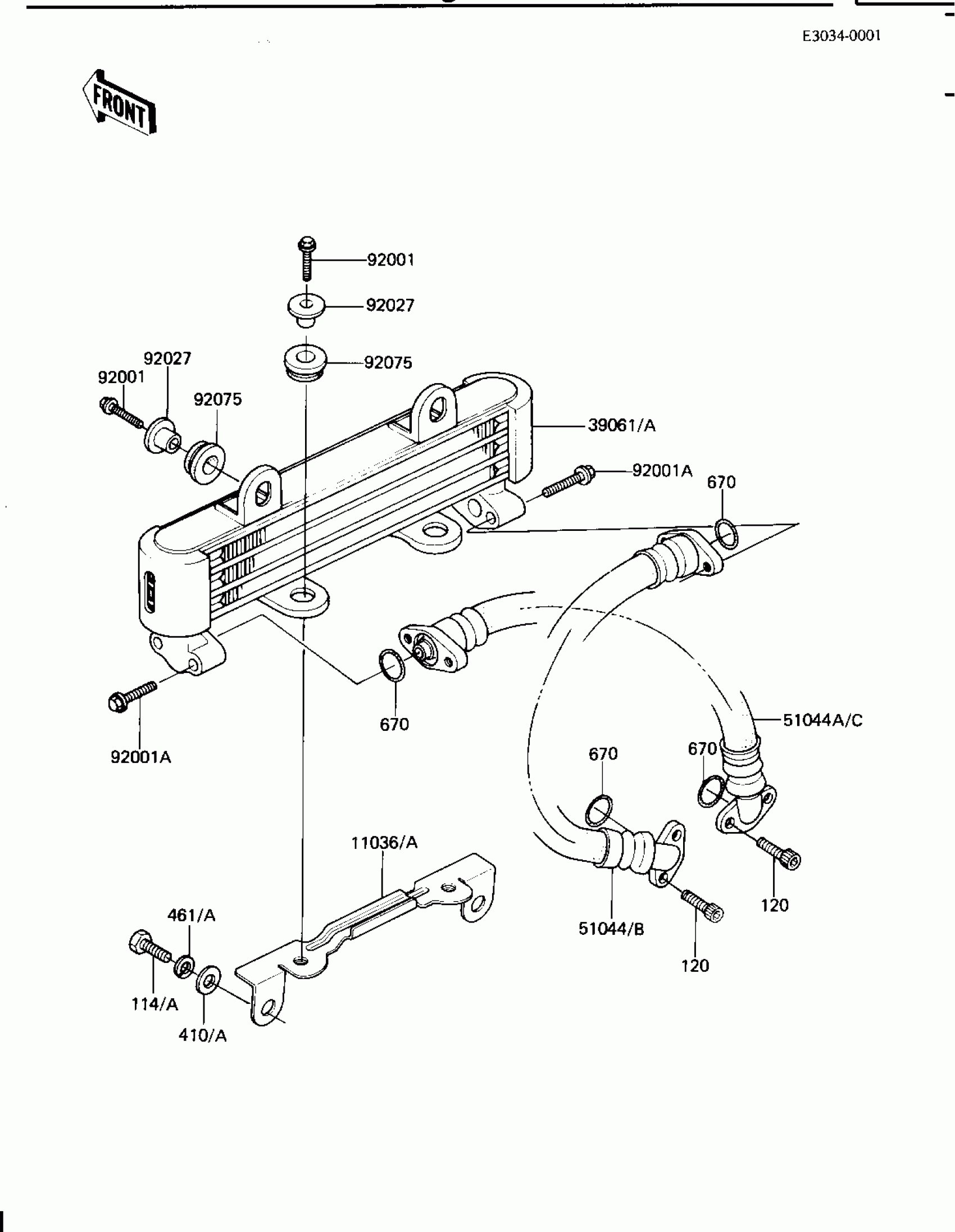

1982 Kawasaki GPZ Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036A

BRACKET-A,OIL COOLER

11036-1508

1
Out of stock

39061A

EXCHANGER-ASSY-HEAT

39061-1006-10

1

$492.37

In stock

51044B

TUBE-ASSY,OIL COOLER

51044-1030

1
Out of stock

51044C

TUBE-ASSY,OIL COOLER

51044-1031

1
Out of stock

92001

BOLT-FLANGED

130J0620

1
Out of stock

92001A

BOLT,FLANGED,6X25,BLK

92001-1467

1
Out of stock

92027

1

$4.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

114A

BOLT-SMALL,8X16,BLACK

115C0816

1
Out of stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

410A

WASHER,PLAIN,8MM

92022-1554

1
Out of stock

461A

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock

670

O RING,14MM

670D2014

1

$4.37

In stock
