1982 Kawasaki GPZ Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

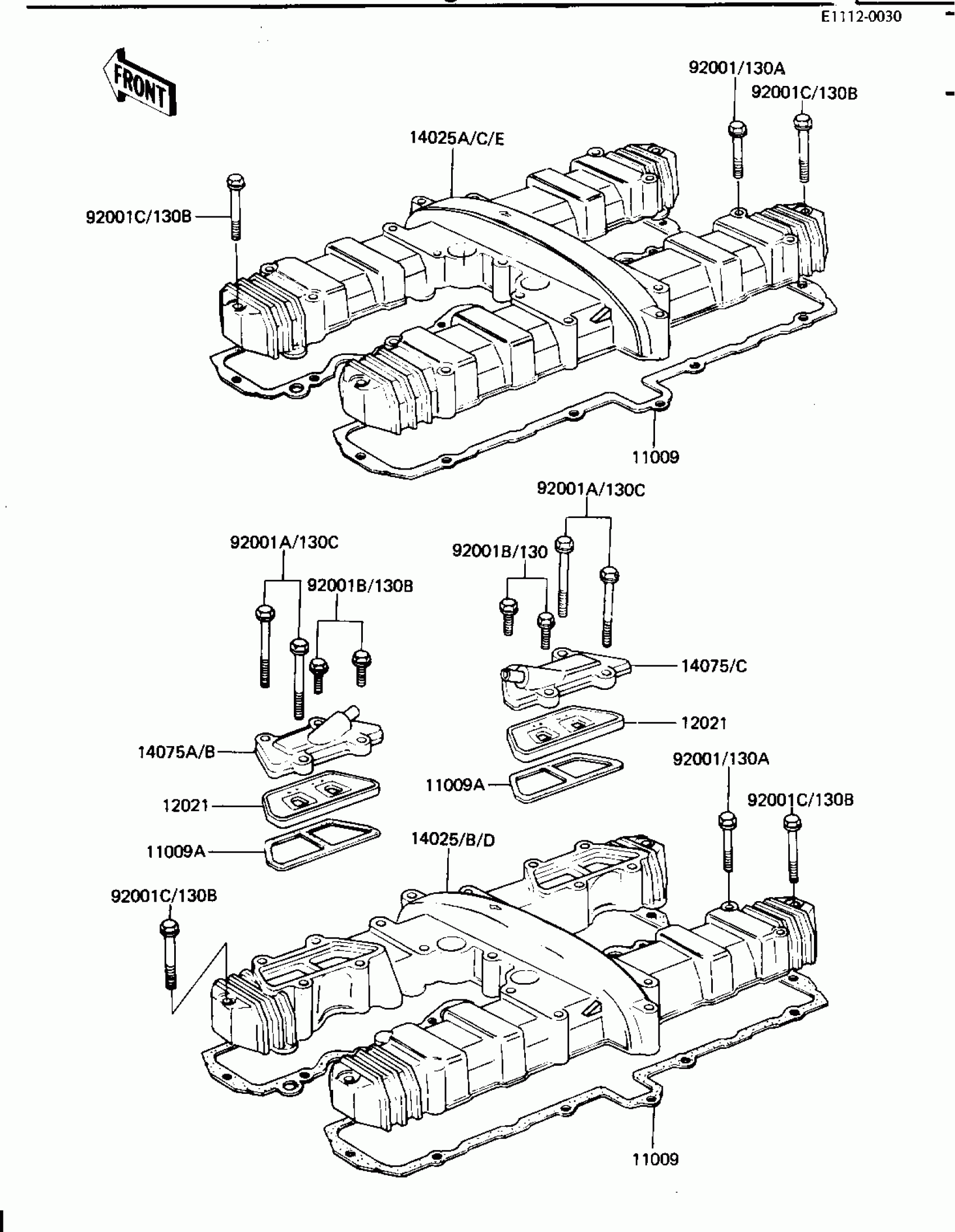

1982 Kawasaki GPZ Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,CYLINDER HEAD

11009-1205

1
Out of stock

11009A

GASKET,REED VALVE

11060-1066

1

$9.61

In stock

12021

VALVE-ASSY-REED

12021-1008

1

$77.18

In stock

14025B

COVER,CYLINDER HEAD,B

14025-1423

1
Out of stock

14025C

14025-1637 (Canada)

14025-1424

1
Out of stock

14075B

1

$50.29

In stock

130

BOLT-FLANGED,6X22,BLACK

130J0622

1
Out of stock

130A

BOLT,6X45

92002-1069

1

$4.61

In stock

130A

BOLT,6X45

92002-1069

1

$4.61

In stock

130B

BOLT-FLANGED,6X52,BLA

130J0652

1
Out of stock

130C

BOLT-FLANGED,6X70

130J0670

1
Out of stock
