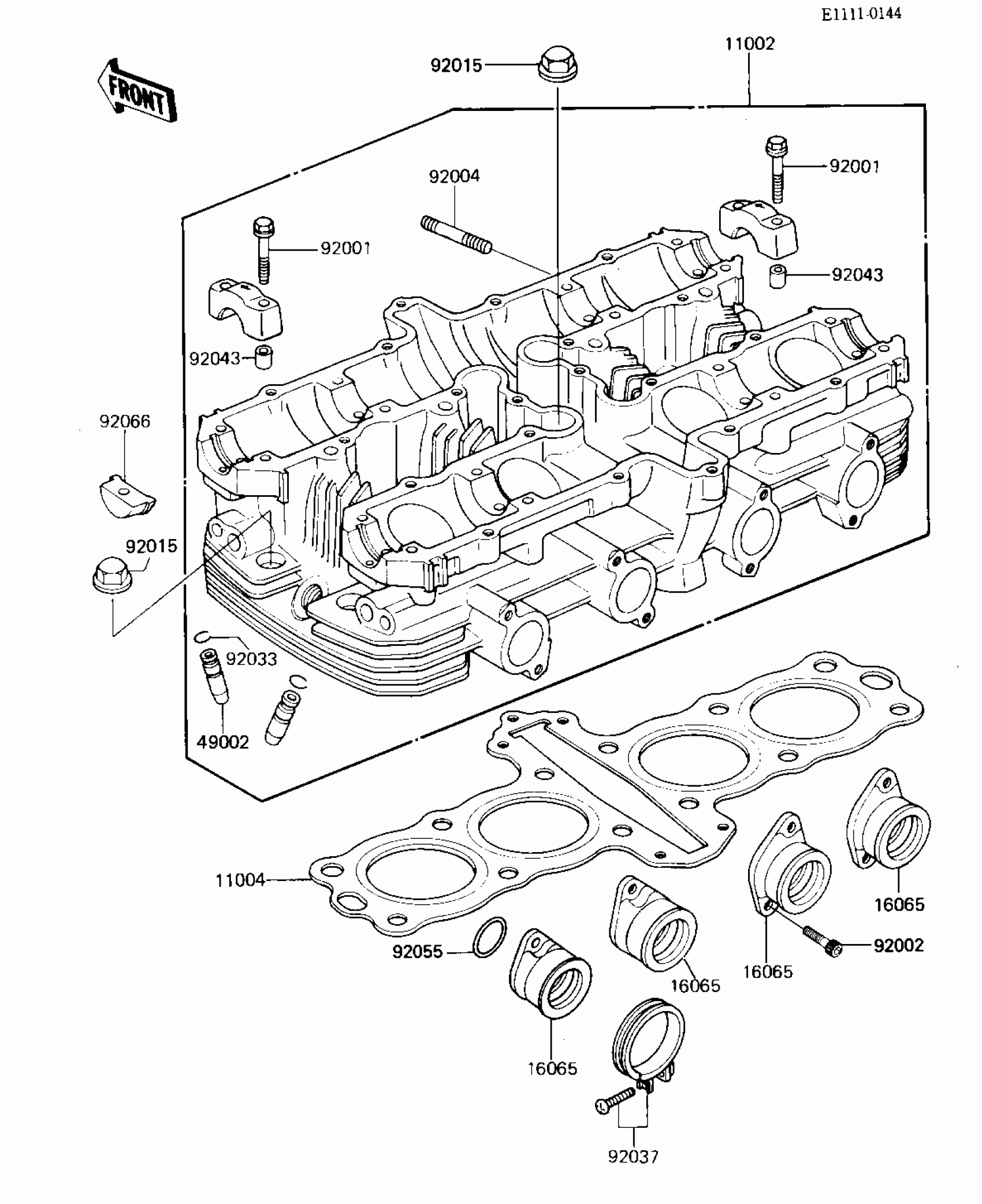

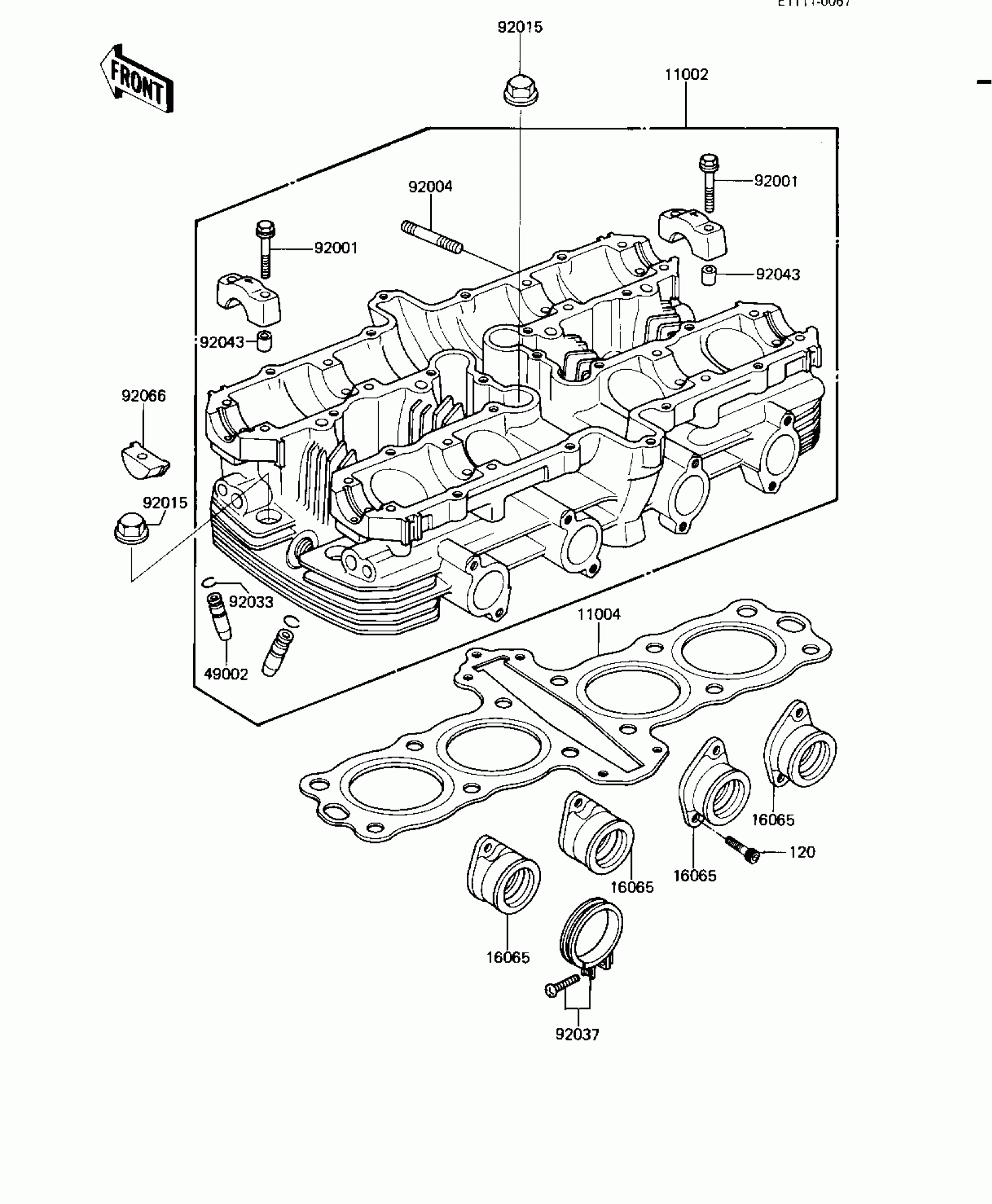

1983 Kawasaki GPZ Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1983 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki GPZ Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11002

HEAD ASSY CYLINDER

11002-1115

1
Out of stock

11004

GASKET-HEAD

11004-1212

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1051

1

$67.34

In stock

49002

GUIDE-VALVE

49002-1005

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92004

STUD,6X27

92004-066

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92033

1

$0.53

In stock

92037

CLAMP

92037-1326

1

$7.14

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92066

1

$10.12

In stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock
