1985 Kawasaki GPZ 750 Turbo Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

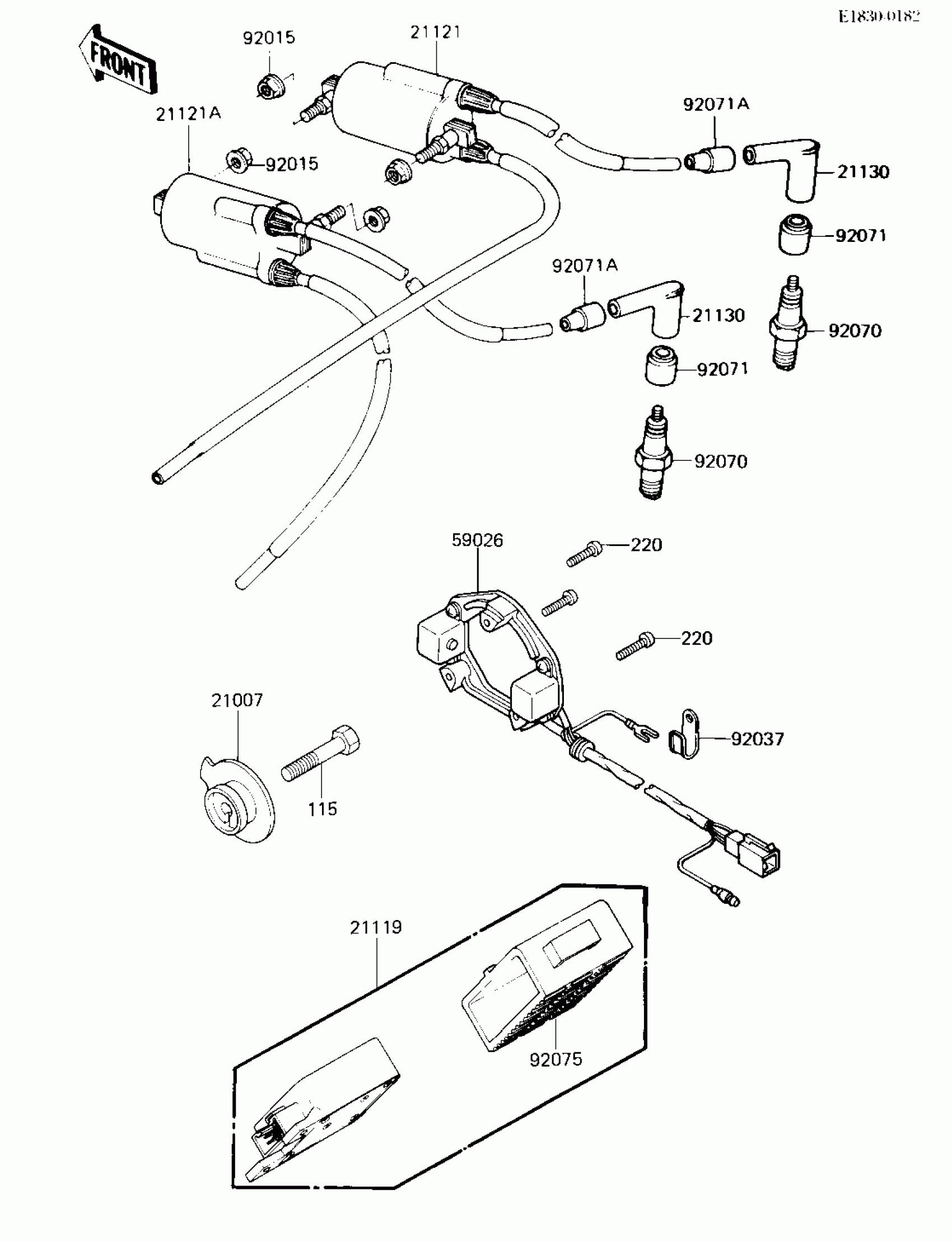

1985 Kawasaki GPZ 750 Turbo Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING COIL

21007-1101

1
Out of stock

21119

IGNITER

21119-1120

1

$990.60

In stock

21121

COIL,IGNITION #1.#4

21121-1027

1

$259.66

In stock

21121A

COIL,IGNITION #2.#3

21121-1028

1
Out of stock

21130

CAP-SPARK PLUG,RTFM20

21130-1007

1
Out of stock

59026

COIL-PULSING

59026-1053

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92037

1

$3.75

In stock

92070

1

$11.29

In stock

92071

GROMMET,PLUG CAP

21131-004

1

$10.81

In stock

92071A

1

$3.39

In stock

92075

DAMPER,IGNITER

92075-1504

1

$39.52

In stock

115

BOLT-SMALL-UPSET

115G0845

1
Out of stock

220

1

$3.24

In stock
