1985 Kawasaki GPZ 750 Turbo Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

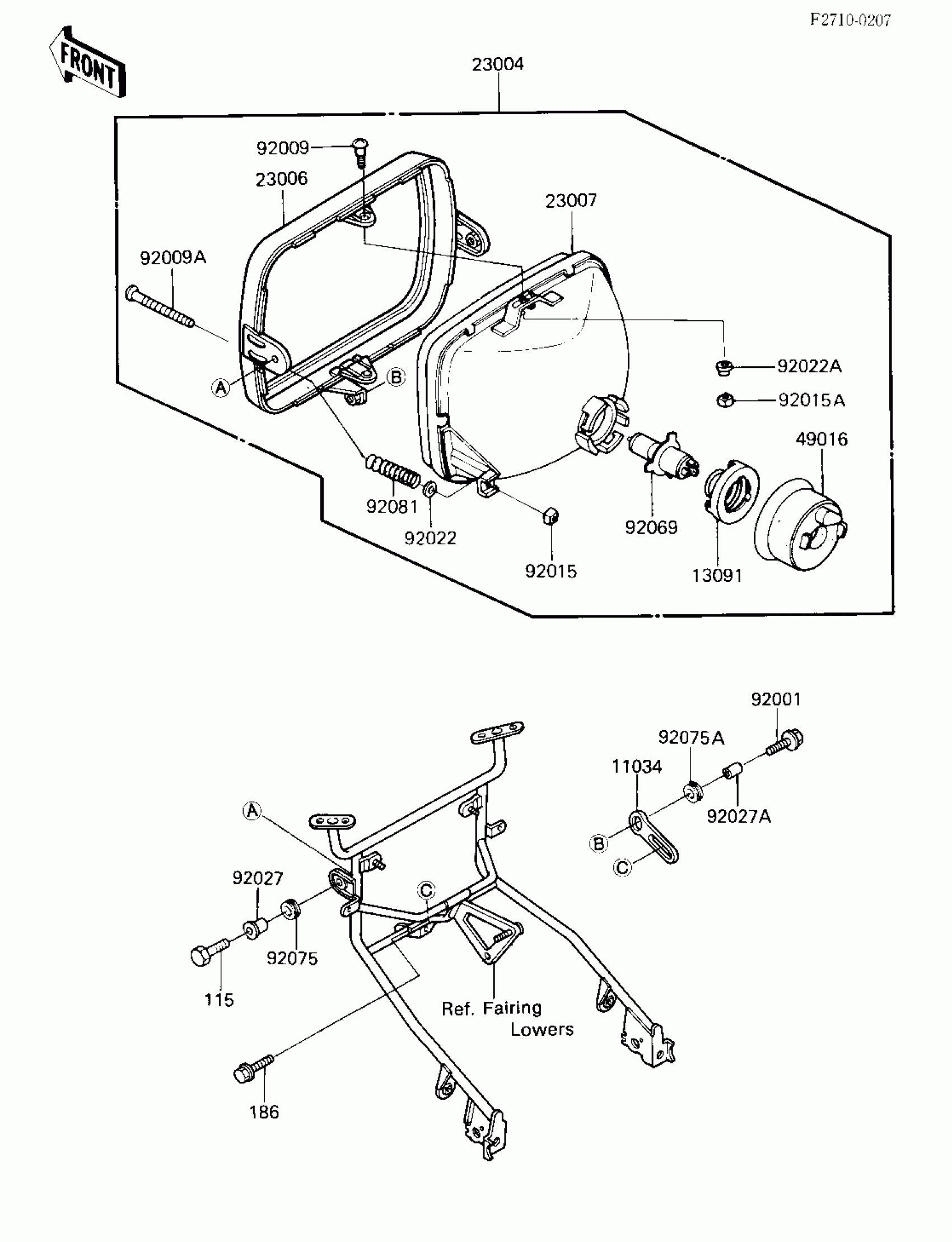

1985 Kawasaki GPZ 750 Turbo Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,HEAD LIGHT

23064-022

1
Out of stock

13091

HOLDER,HEAD LAMP SOCK

13091-1036

1
Out of stock

23004

LAMP-HEAD

23004-1151

1

$593.81

In stock

23006

RIM-LAMP

23006-1051

1
Out of stock

23007

LENS-COMP

23007-1041

1

$247.81

In stock

49016

COVER,HEAD LAMP SOCKE

49016-1023

1
Out of stock

92001

BOLT,UPSET-WP,6X22

92002-1262

1
Out of stock

92009

1

$4.78

In stock

92009A

SCREW,4MM,FOCUS ADJUST

92009-1047

1
Out of stock

92015

UNAVAILABLE IN PRICE BOOK

23023-018

1
Out of stock

92015A

NUT,5MM

23020-023

1
Out of stock

92022

WASHER,4.1X8X0.8

23021-004

1
Out of stock

92022A

WASHER,PLAIN,5MM

23021-012

1
Out of stock

92027

1

$8.16

In stock

92027A

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

DAMPER

92160-1007

1

$4.37

In stock

92075A

1

$3.72

In stock

92081

1

$4.10

In stock

115

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

186

BOLT

186B0614

1
Out of stock
