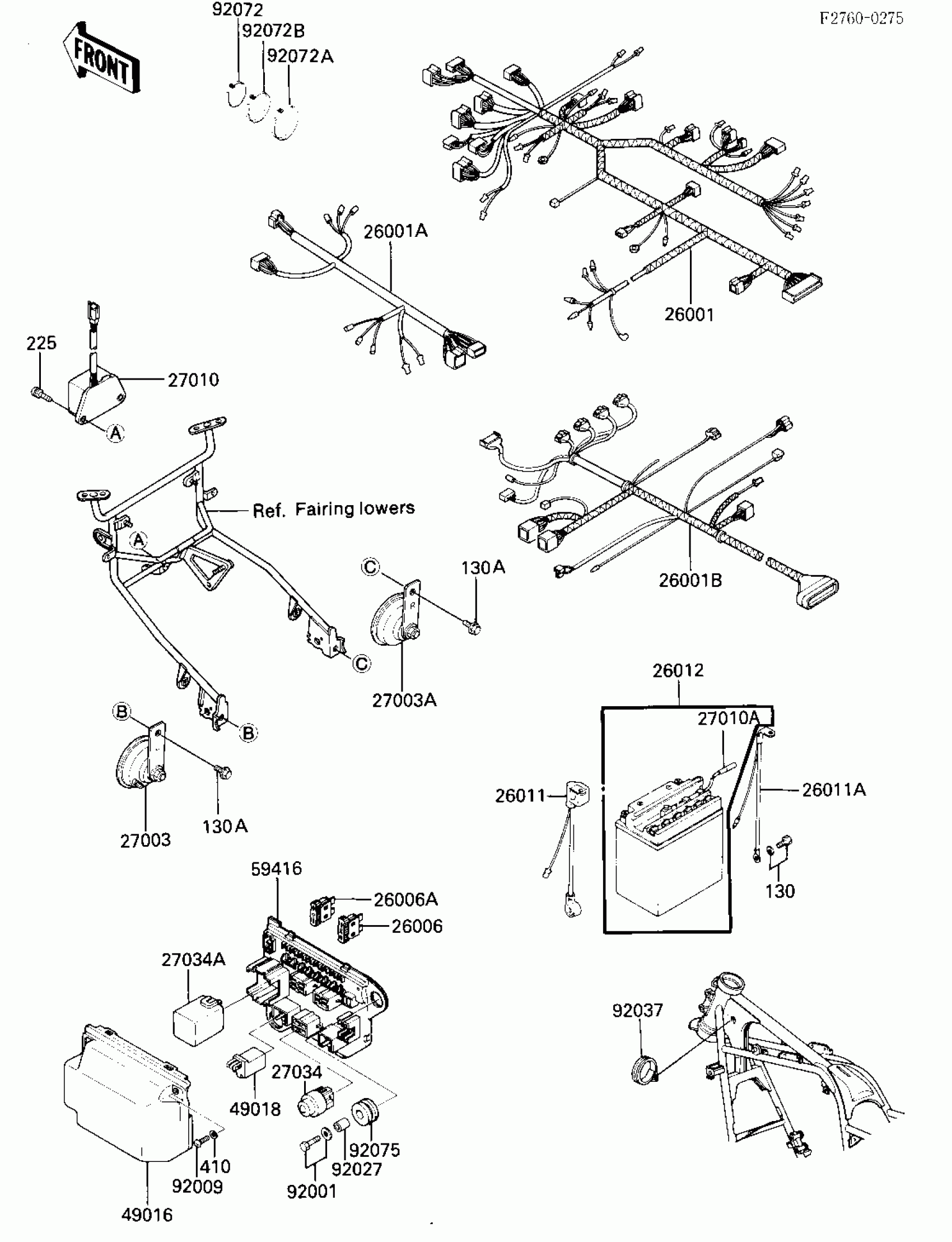

Kawasaki GPz 750 Turbo CHASSIS ELECTRICAL EQUIPMENT Diagram

Description

Price

26001

HARNESS,MAIN

26001-1558

Unavailable

26001A

HARNESS,FR

26001-1559

Unavailable

26001B

HARNESS

26001-1560

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26006A

FUSE,BLADE,10A,RED

26006-1007

$3.78

26011

WIRE-LEAD,BATTERY

26011-1257

Unavailable

26011A

WIRE-LEAD,BATTERY

26011-1258

Unavailable

26012

YUA BAT SYB14L-A2

26012-1059

$119.01

27003

HORN,LH

27003-1057

Unavailable

27003A

HORN,RH

27003-1058

Unavailable

27010

SWITCH,RESERVE LIGHTING

27010-1069

$213.85

27010A

SWITCH,BATTERY

27010-1099

Unavailable

27034

RELAY,STARTER

27034-1006

$92.57

27034A

RELAY,FLASHER

27034-1007

$175.04

49016

COVER-SEAL

49016-1050

Unavailable

49018

DIODE

49018-1006

$52.62

59416

CASE-ELECTRIC

59416-1056

Unavailable

92001

BOLT,UPSET-WP,6X22

92002-1262

Unavailable

92009

SCREW,TAPPING,4X10

92009-1021

Unavailable

92027

COLLAR,6.8X10X12

92027-162

$4.93

92037

CLAMP,HARNESS

92037-1500

$5.99

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=218

92072-032

$3.81

92072B

BAND,L=186

92072-056

$3.81

92075

BAND,L=186

92072-056

$3.81

130

BOLT-FLANGED,6X8

130B0608

Unavailable

130A

BOLT-FLANGED,8X12,BLACK

130C0812

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225B0620

Unavailable

410

WASHER PLAIN 4MM

410B0400

Unavailable
