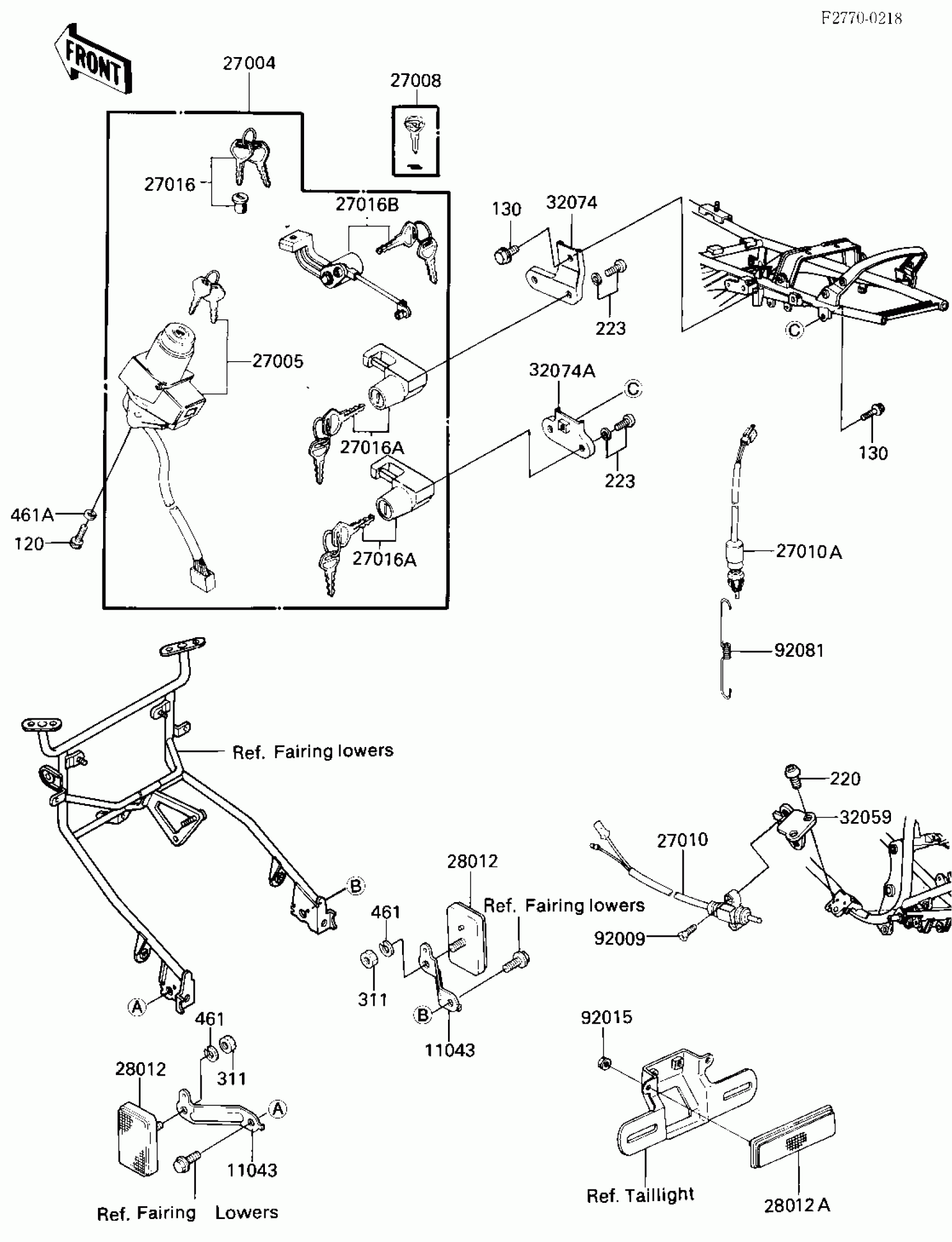

Kawasaki GPz 750 Turbo IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

11043

BRACKET-B,REFLECTOR

11043-1456

Unavailable

27004

SWITCH-ASSY

27004-5211

$484.57

27005

SWITCH-ASSY-IGNITION

27005-5035

$196.81

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,SIDE STAND

27010-1065

$71.36

27010A

SWITCH,BRAKE LAMP

27010-1093

$26.58

27016

LOCK-ASSY,FUEL TANK

27016-5068

$101.48

27016A

LOCK-ASSY,HELMET

27016-5070

Unavailable

27016B

LOCK-ASSY,SEAT

27016-5071

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1005

$28.89

32059

BRACKET-SWITCH,SIDE S

32059-1056

$8.95

32074

BRACKET-LOCK,HELMET,F

32074-1058

$11.58

32074A

BRACKET-LOCK,HELMET,R

32074-1059

$11.58

92009

SCREW,5X18

92009-1305

$3.58

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92081

SPRING,BRAKE LAMP SWITCH

92081-1146

Unavailable

120

BOLT-SOCKET,6X16

120T0616

Unavailable

130

BOLT-FLANGED,6X10

130B0610

Unavailable

220

SCREW-PAN-CROS,5X12,BLACK

220C0512

$3.55

223

SCREW-PAN-WS-CROS

223B0508

Unavailable

311

NUT-HEX

311B0500

$0.47

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable
