1985 Kawasaki GPZ 750 Turbo Generator/regulator Diagram

← All diagrams

Find the part on the Generator/regulator diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

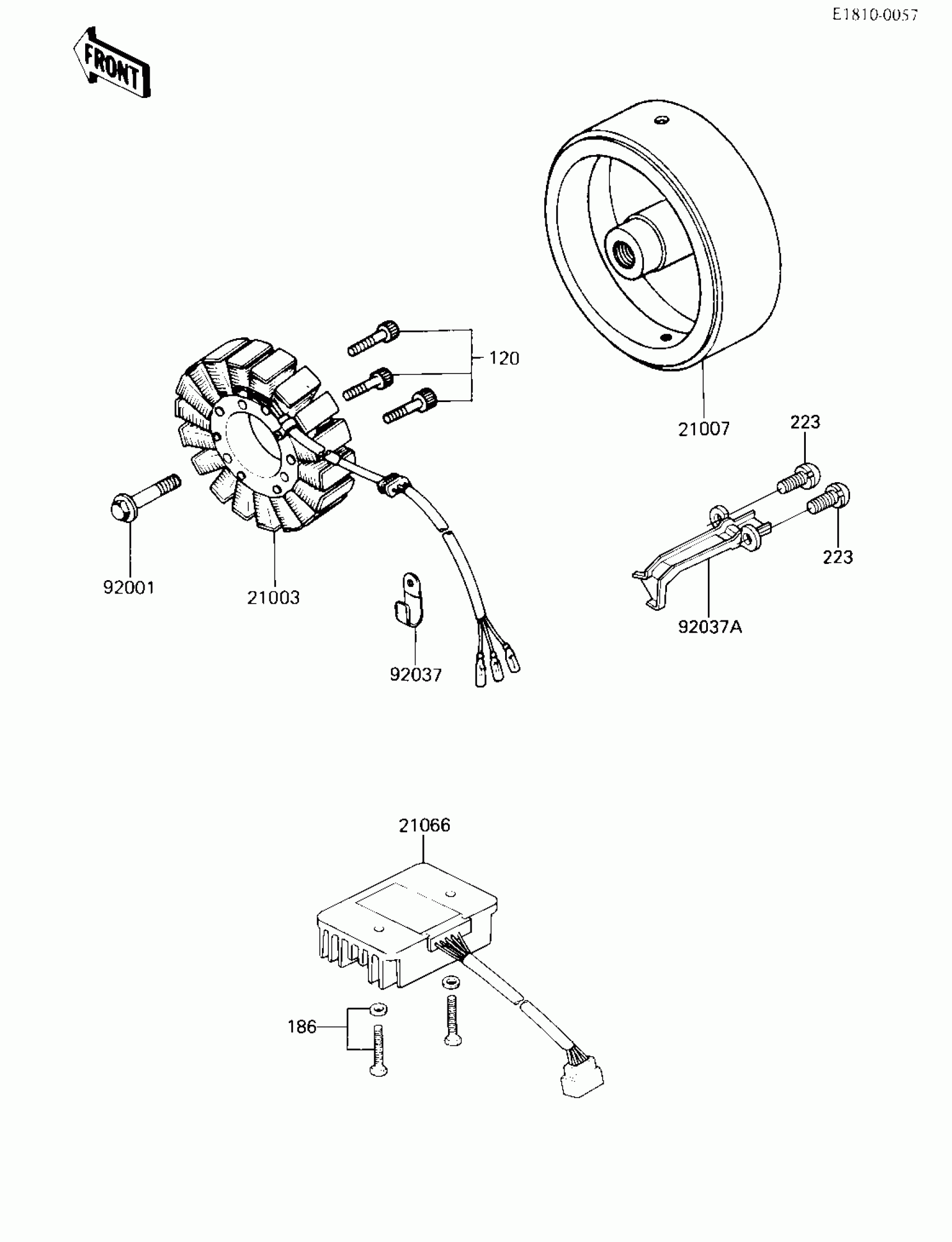

1985 Kawasaki GPZ 750 Turbo Generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-1062

1
Out of stock

21007

ROTOR

21007-1050

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-1018

1
Out of stock

92001

BOLT,FLANGED,12X40

92001-1146

1
Out of stock

92037

CLAMP,WIRING HARNESS

21126-008

1
Out of stock

92037A

CLAMP,LEAD WIRE

92037-1369

1
Out of stock

120

BOLT-SOCKET,6X30

120P0630

1
Out of stock

186

BOLT

186B0614

1
Out of stock

223

SCREW-PAN-WS-CROS,5X12

223B0512

1
Out of stock
