1985 Kawasaki GPZ 750 Turbo Battery Case/tool Case Diagram

← All diagrams

Find the part on the Battery Case/tool Case diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

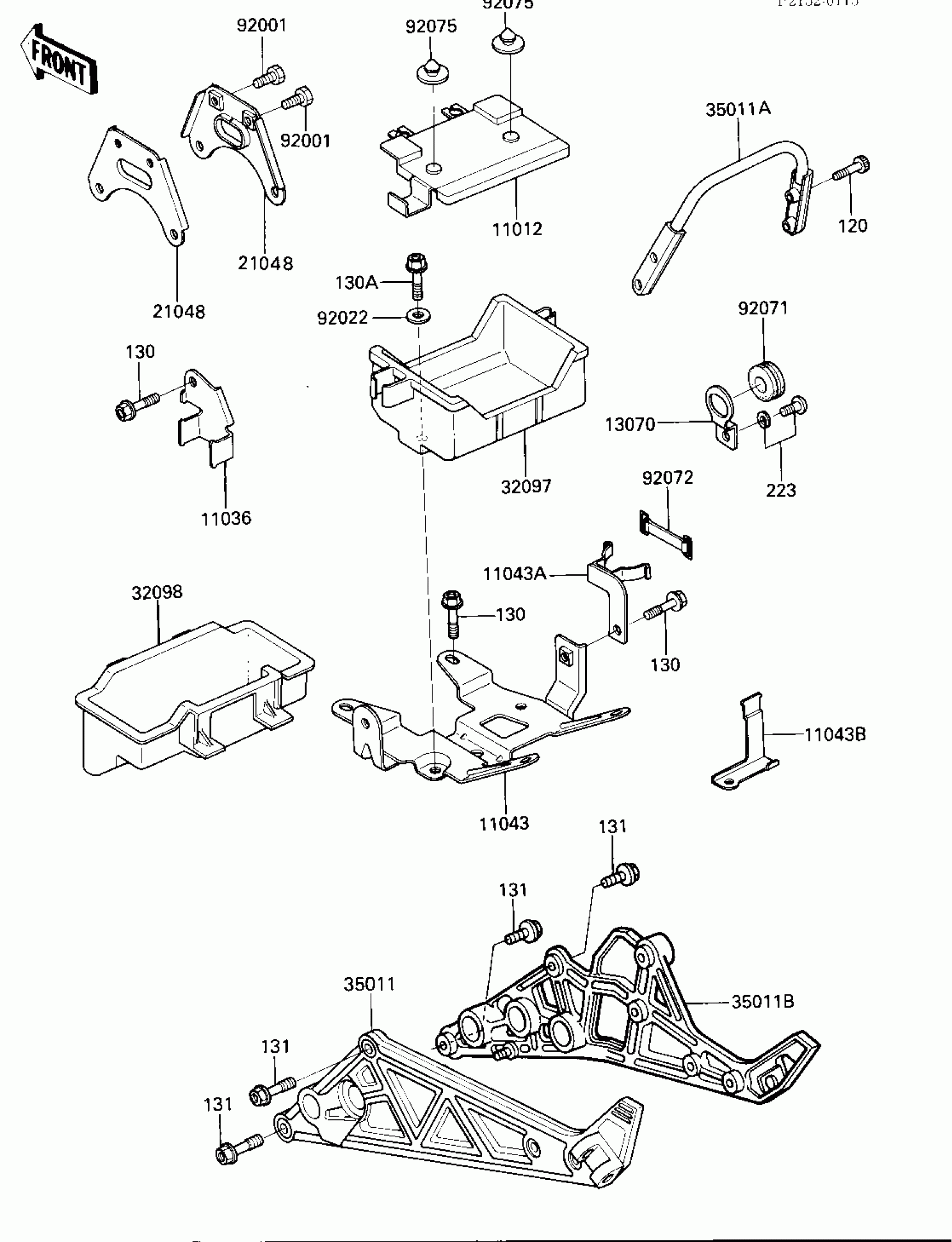

1985 Kawasaki GPZ 750 Turbo Battery Case/tool Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,BATTERY

11012-1292

1
Out of stock

11036

BRACKET-A,MAGNETIC SW

11036-1968

1
Out of stock

11043

BRACKET-B,BATTERY CAS

11043-1245

1
Out of stock

11043A

BRACKET-B,FILTER

11043-1246

1
Out of stock

11043B

BRACKET-B,CONTROL UNI

11043-1251

1
Out of stock

13070

GUIDE,SHOCKABSORBER

13070-1085

1
Out of stock

21048

PLATE-COIL

21048-1006

1
Out of stock

32097

CASE-BATTERY

32097-1065

1
Out of stock

32098

UNAVAILABLE IN PRICE BOOK

32098-1026

1
Out of stock

35011

STAY,MUFFLER,LH

35011-1160

1
Out of stock

35011A

STAY,GRAB RALL

35011-1201

1
Out of stock

35011B

STAY,MUFFLER,RH

35011-1211

1
Out of stock

92001

BOLT,6X10

92001-137

1
Out of stock

92022

WASHER-PLAIN,7MM

92022-240

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92072

BAND,AIR CLEANER FITT

92072-1017

1
Out of stock

92075

DAMPER,RUBBER

92075-078

1
Out of stock

120

BOLT-SOCKET,6X45,BLAC

120S0645

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT

130B0612

1
Out of stock

131

BOLT-FLANGED,10X25,BL

131J1025

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0612

1
Out of stock
