1972 Yamaha GP292 Steering GP-292B Diagram

← All diagrams

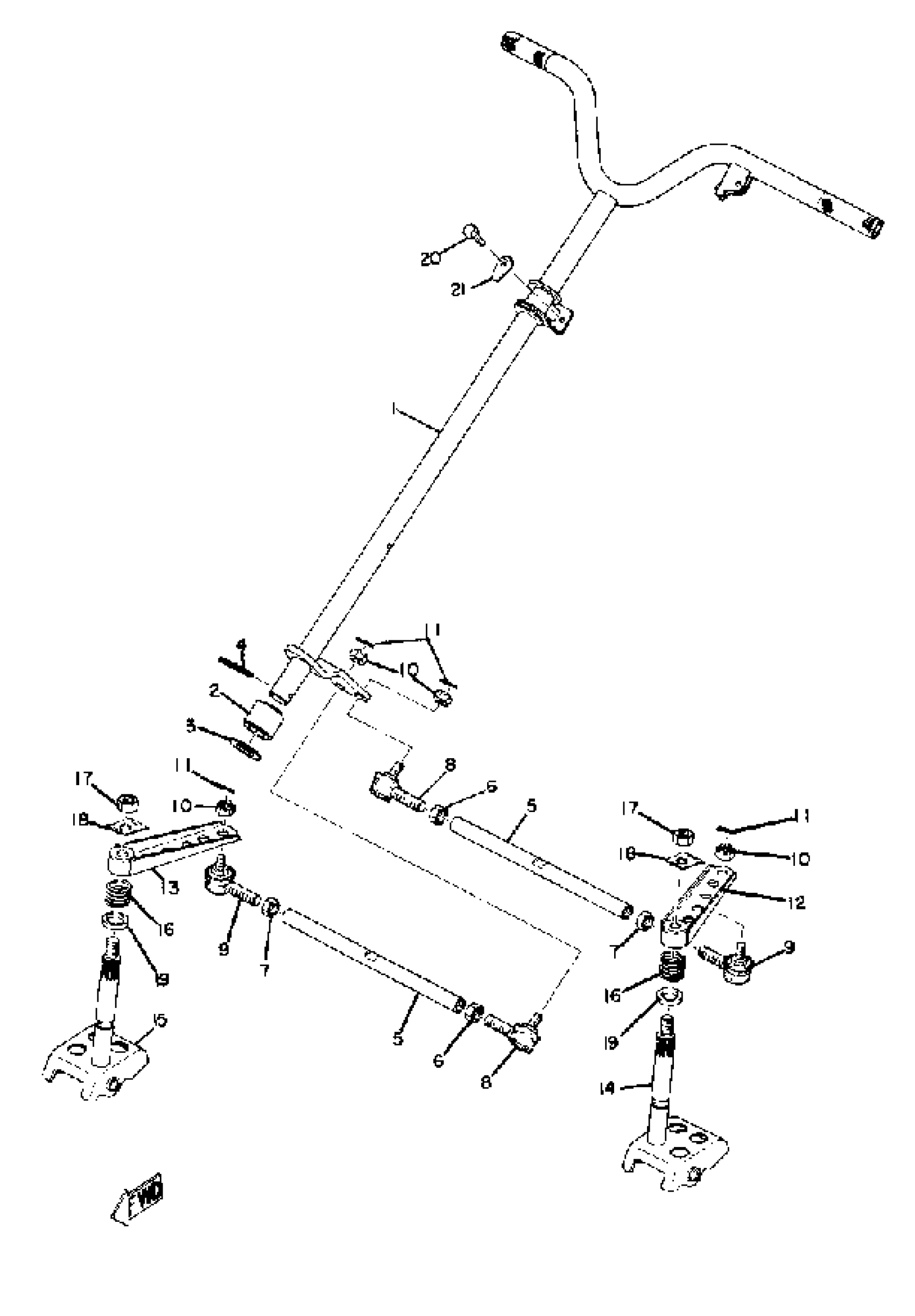

Find the part on the Steering GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP292 Steering GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(841-23811-01-00)

1
Out of stock

2

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

3

BEARING, STEERING

(841-23812-01-00)

1
Out of stock

4

PIN, SPRING

91609-60045-00

1
Out of stock

5

ROD, STEERING RELAY

(821-23821-00-00)

1
Out of stock

6

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

7

NUT (821-23834-00)

90170-12054-00

1
Out of stock

8

JOINT, UNIVERSAL 1

(821-23841-90-00)

1
Out of stock

9

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

10

NUT, CASTLE

90171-10002-00

1
Out of stock

11

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

12

ARM, OUTSIDE 1

(841-23851-01-00)

1
Out of stock

13

ARM, OUTSIDE 2

841-23852-01-00

1
Out of stock

14

COLUMN, SKI 1

844-23853-01-00

1
Out of stock

15

COLUMN, SKI 2

844-23854-01-00

1
Out of stock

16

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

17

NUT, HEXAGON

95337-12600-00

—
Out of stock

18

WASHER, LOCK

90215-12037-00

1
Out of stock

19

SPACER

90560-20037-00

1
Out of stock

20

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

21

WASHER, LOCK

(90215-06038-00)

1
Out of stock
