1972 Yamaha GP292 Steering Gate GP-292B Diagram

← All diagrams

Find the part on the Steering Gate GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

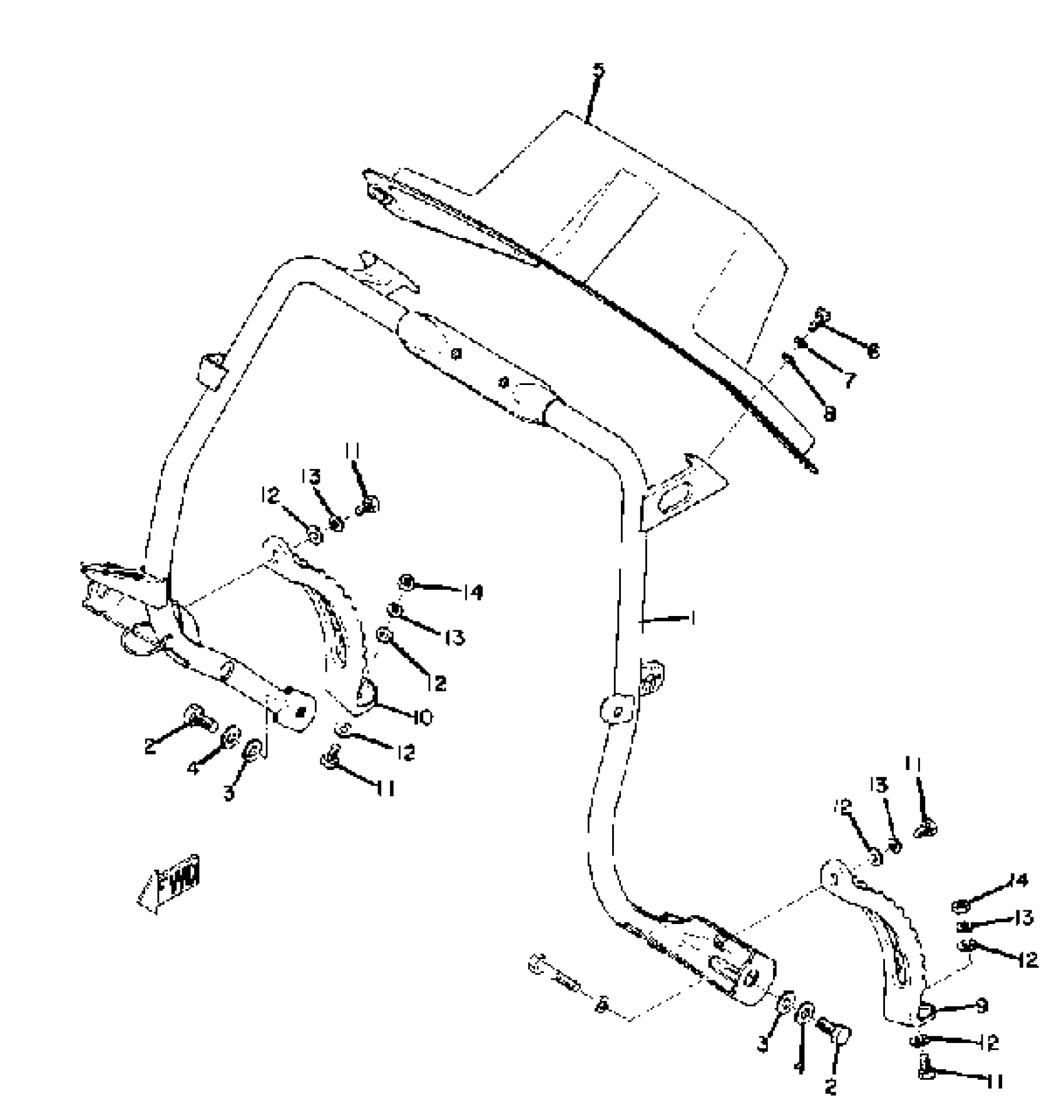

1972 Yamaha GP292 Steering Gate GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(841-23870-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, LOCK

(90215-08066-00)

1
Out of stock

4

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

5

PANEL, INSTRUMENT

(844-77711-00-00)

1
Out of stock

6

BOLT, HEXAGON

(97306-05012-00)

1
Out of stock

7

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

8

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

9

FOOTREST 1

(841-27411-00-00)

1
Out of stock

10

FOOTREST 2

(841-27421-00-00)

1
Out of stock

11

BOLT (661)

97013-06012-00

1

$4.71

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
← Steering Gate GP-292 Steering GP-292 →
