1972 Yamaha GP292 SKI GP-292 Diagram

← All diagrams

Find the part on the SKI GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

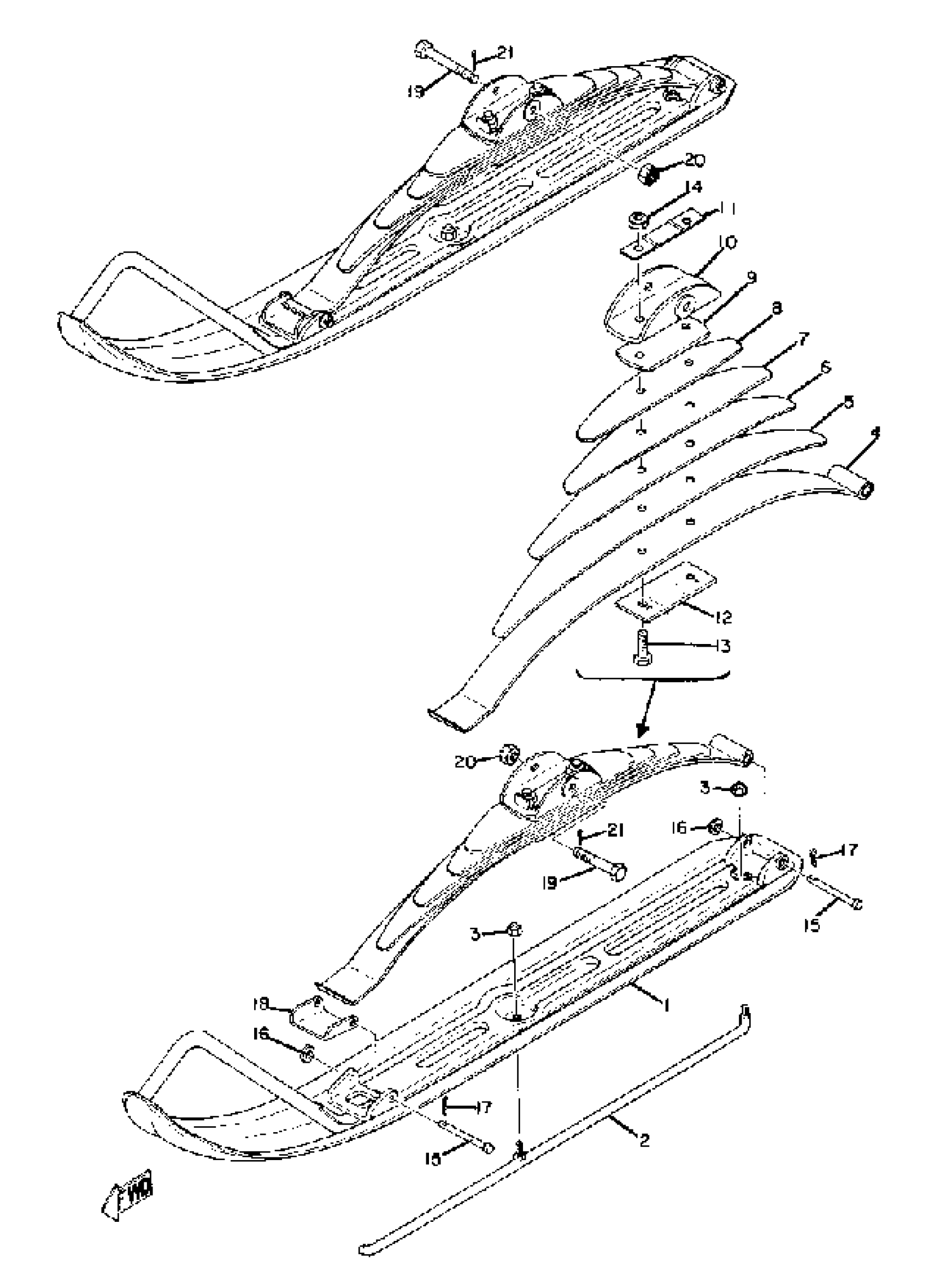

1972 Yamaha GP292 SKI GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING ASSEMBLY 1

(823-23760-00-00)

1
Out of stock

1

SKI 1

(838-23710-01-00)

1
Out of stock

2

RUNNER 1

821-23731-01-00

1
Out of stock

2

SPRING ASSEMBLY 2

(823-23770-00-00)

1
Out of stock

2

RUNNER 1

838-23731-03-00

1
Out of stock

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

4

LEAF 1

(810-23761-00-00)

1
Out of stock

5

LEAF 2

(810-23762-00-00)

1
Out of stock

6

LEAF 3

(810-23763-00-00)

1
Out of stock

7

LEAF 4

(810-23764-00-00)

1
Out of stock

8

LEAF 5

(810-23771-00-00)

1
Out of stock

9

SEAT, SPRING 2

(811-23777-00-00)

1
Out of stock

10

. SADDLE 1

806-23766-00-00

1
Out of stock

11

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

12

. SEAT, SPRING 1

802-23768-00-00

1
Out of stock

13

BOLT

90109-105E9-00

1
Out of stock

14

NUT(6TD)

95337-10600-00

—

$6.98

In stock

15

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

16

WASHER(6TC)

92907-08200-00

—
Out of stock

17

PIN COTTER

91490-30025-00

—
Out of stock

18

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

19

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

20

NUT, SLOTTED

95306-10900-00

1
Out of stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock
