1972 Yamaha GP292 SKI GP-292B Diagram

← All diagrams

Find the part on the SKI GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

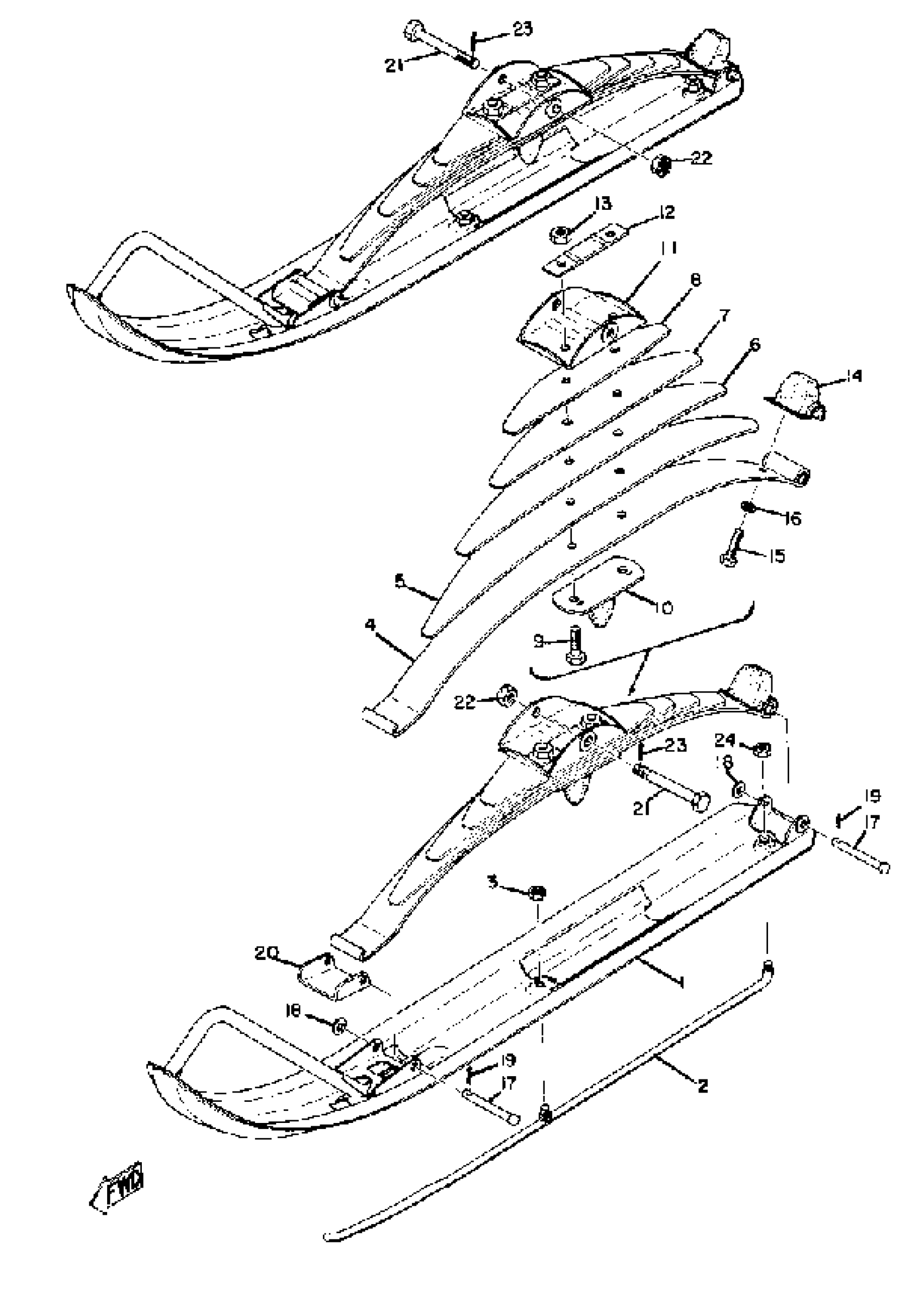

1972 Yamaha GP292 SKI GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING ASSEMBLY 1

(841-23760-03-00)

1
Out of stock

2

SKI 1

(838-23710-01-00)

1
Out of stock

2

RUNNER 1

838-23731-03-00

1
Out of stock

2

SPRING ASSEMBLY 2

841-23770-03-00

1
Out of stock

3

NUT(6TA)

95337-08600-00

1

$6.17

In stock

4

. LEAF 1

841-23761-02-00

1
Out of stock

5

LEAF 2

(841-23762-02-00)

1
Out of stock

6

LEAF 3

(841-23763-01-00)

1
Out of stock

7

. LEAF 4

841-23764-01-00

1
Out of stock

8

. LEAF 5

841-23771-01-00

1
Out of stock

9

. BOLT

90101-10060-00

1
Out of stock

10

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

11

SADDLE 1

(841-23766-00-00)

1
Out of stock

12

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

13

NUT(6TD)

95337-10600-00

1

$6.98

In stock

14

STOPPER 1

(841-23743-01-00)

1
Out of stock

15

BOLT (11T)

90101-06576-00

—

$6.46

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

18

WASHER(6TC)

92907-08200-00

—
Out of stock

19

PIN COTTER

91490-30025-00

—
Out of stock

20

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

21

BOLT, WITH HOLE

90102-10009-00

1
Out of stock

22

NUT, SLOTTED

95306-10900-00

1
Out of stock

23

PIN, COTTER

91490-20025-00

—

$1.31

In stock

24

NUT, HEXAGON SMALL

95317-08700-00

—

$7.05

In stock
