1972 Yamaha GP292 Electrical Diagram

← All diagrams

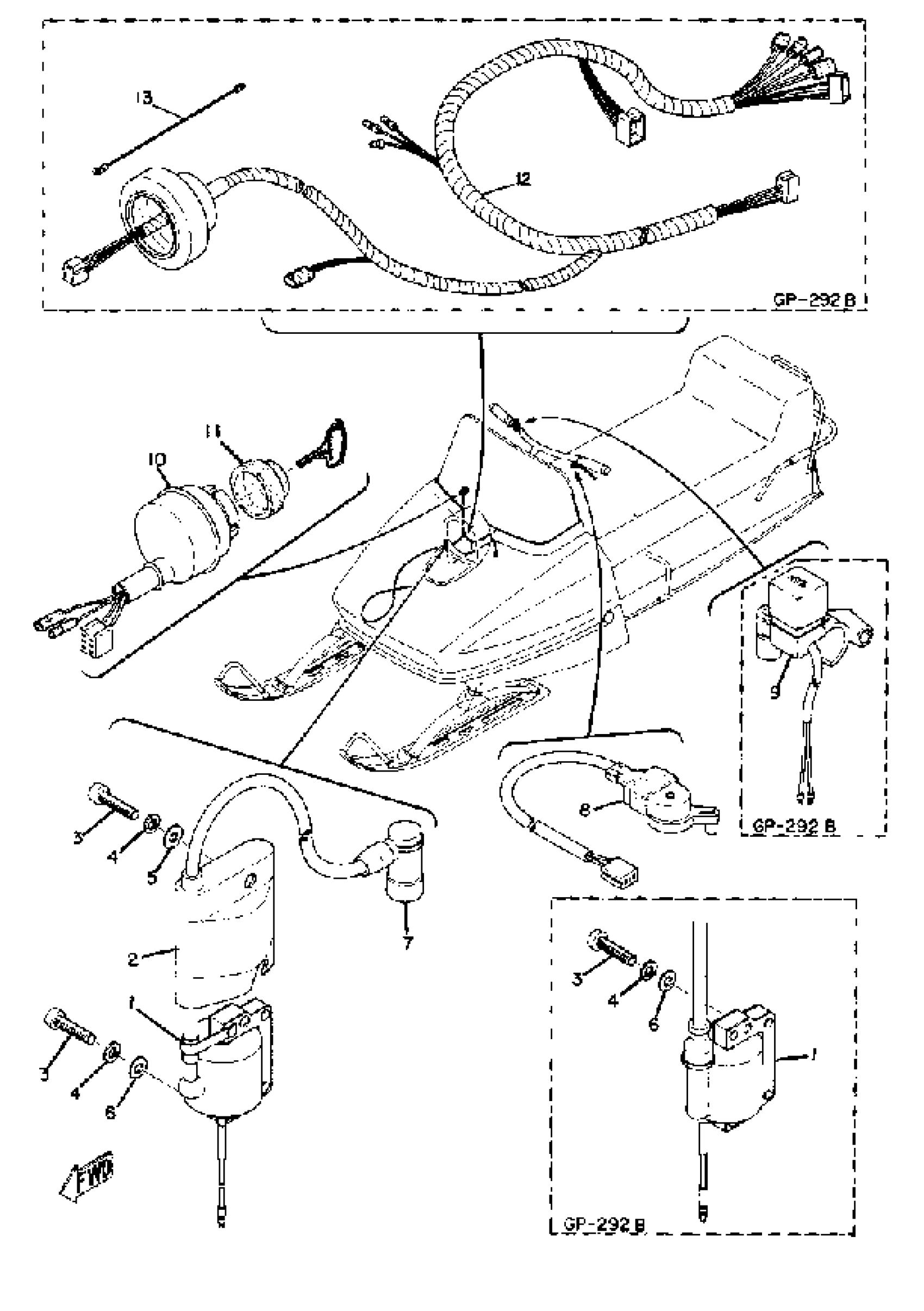

Find the part on the Electrical diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP292 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

(812-82310-40-00)

1
Out of stock

1

IGNITION COIL ASSEMBLY

(839-82310-40-00)

1
Out of stock

2

COVER, IGNITN COIL

(812-82314-00-00)

1
Out of stock

3

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

4

WASHER, SPRING

92907-06100-00

1
Out of stock

5

WASHER, SPECIAL

(822-82327-00-00)

1
Out of stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

7

PLUG CAP ASSY

663-82370-01-00

1

$13.45

In stock

8

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock

9

UNAVAILABLE IN PRICE BOOK

838-83976-00-00

1
Out of stock

10

MAIN SWITCH ASSEMBLY

(822-82508-20-00)

1
Out of stock

10

MAIN SWITCH ASSEMBLY

(838-82508-20-00)

1
Out of stock

11

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

12

WIRE HARNESS ASSEMBLY

839-82590-21-00

1
Out of stock

13

BAND

(841-82591-00-00)

1
Out of stock
