1972 Yamaha GP292 Steering Gate GP-292 Diagram

← All diagrams

Find the part on the Steering Gate GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

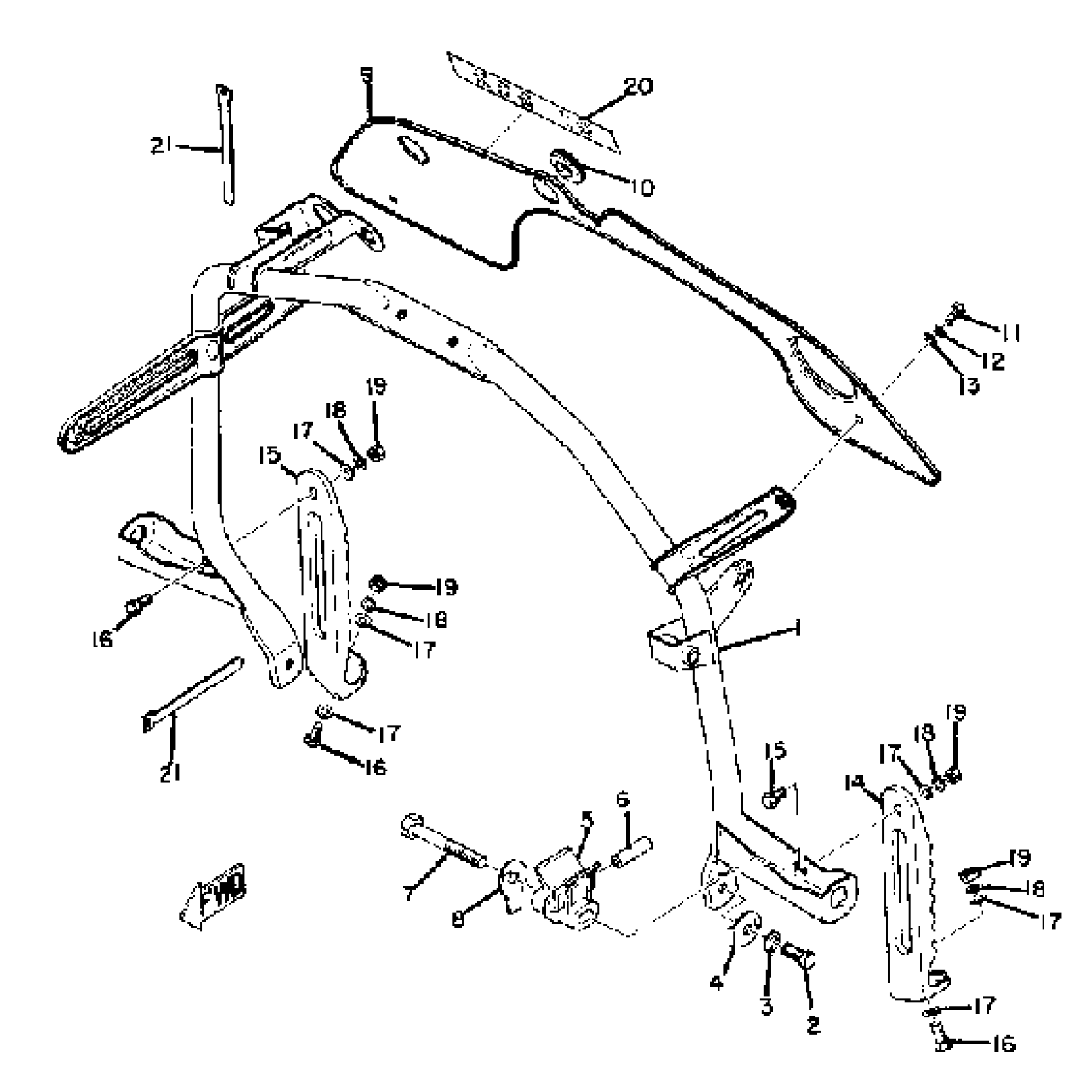

1972 Yamaha GP292 Steering Gate GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

(812-23871-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

4

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

5

CLAMP

(90464-09003-00)

1
Out of stock

6

STOPPER

821-77188-01-00

1
Out of stock

7

BOLT (810-77537-00)

90101-08039-00

1
Out of stock

8

WASHER, LOCK

(90215-08039-00)

1
Out of stock

9

PANEL, INSTRUMENT

(823-77711-00-00)

1
Out of stock

10

GROMMET

(135-82595-00-00)

1
Out of stock

11

BOLT

97027-05010-00

—

$5.62

In stock

12

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

13

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

14

FOOTREST 1

(810-27411-00-00)

1
Out of stock

15

FOOTREST 2

(810-27421-00-00)

1
Out of stock

16

BOLT (661)

97013-06012-00

—

$4.71

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

EMBLEM 1

(823-77451-00-00)

1
Out of stock

21

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
