1972 Yamaha GP292 Brake GP-292B Diagram

← All diagrams

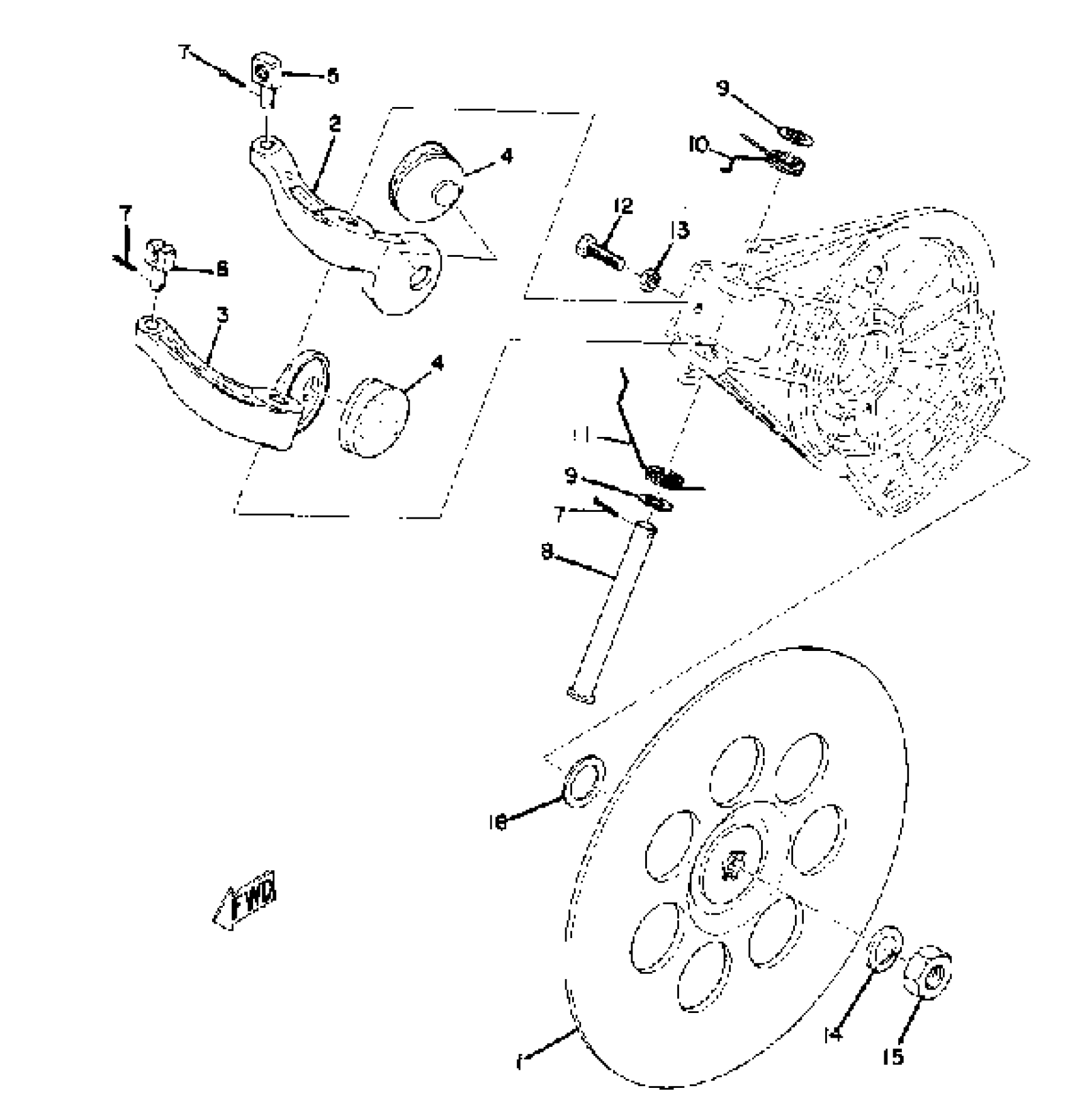

Find the part on the Brake GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP292 Brake GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

845-25711-00-00

1
Out of stock

2

PAD, CALIPER (R.H.)

838-25740-00-00

1
Out of stock

3

BODY, CALIPER 1

838-25731-00-00

1
Out of stock

4

PAD, CALIPER

(826-25732-09-00)

1
Out of stock

5

PIN (810)

90249-06012-00

—

$9.91

In stock

6

PIN

90249-06009-00

1
Out of stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

PIN, W/ HOLE (8J2)

90240-08068-00

—

$5.29

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

SPRING, TORSION

(90508-29045-00)

1
Out of stock

11

SPRING, TORSION

(90508-29046-00)

1
Out of stock

12

BOLT, HEXAGON

97013-05020-00

1

$2.68

In stock

13

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

14

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

15

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

16

SHIM 1

150-17417-00-02

1
Out of stock

16

SHIM 1

(150-17417-00-03)

1
Out of stock
