1983 Suzuki GN125Z Cylinder Head Diagram

← All diagrams

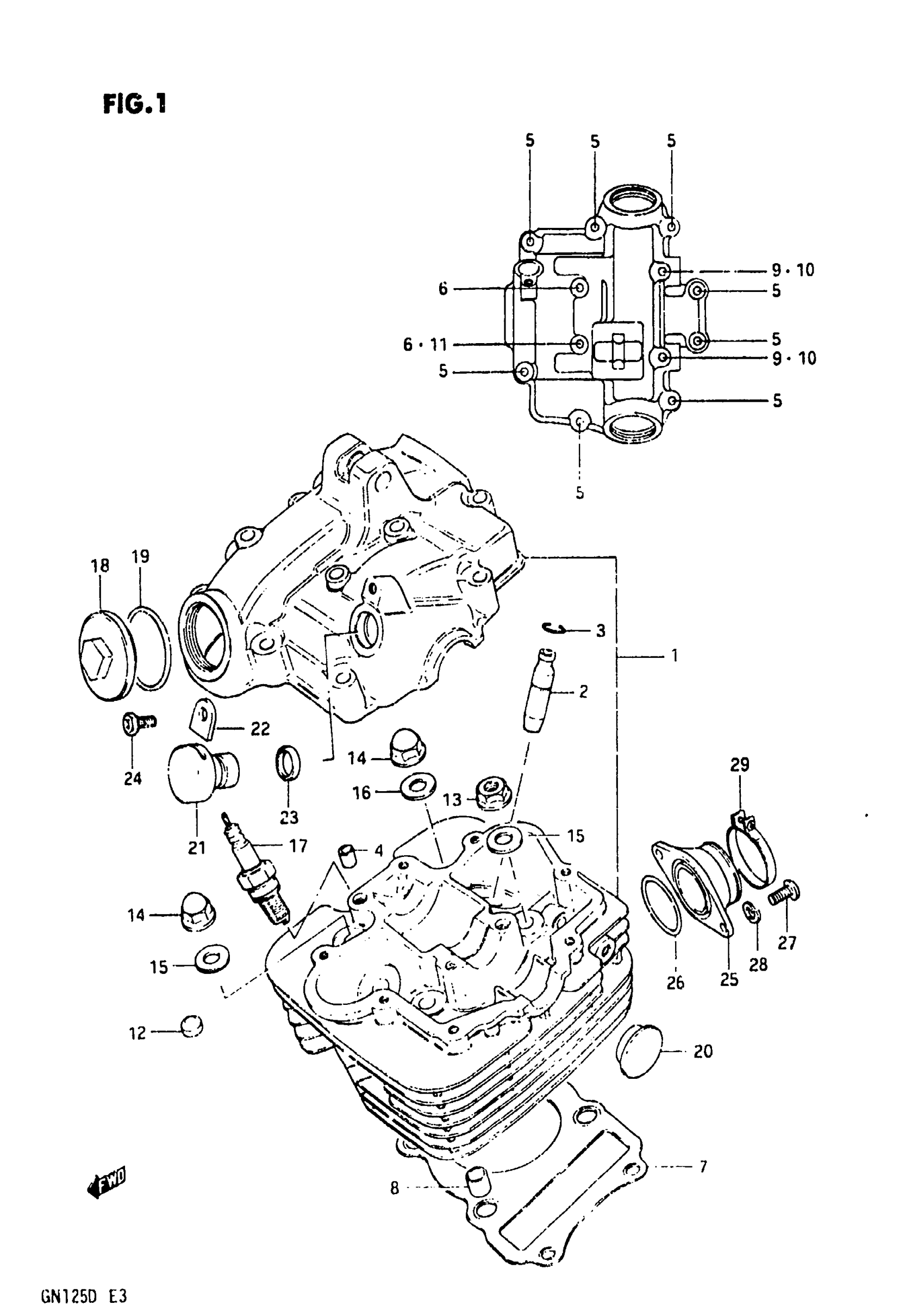

Find the part on the Cylinder Head diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN125Z Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL Z, SEE NOTE This part replaces 11100-05200.

11100-05203

1
Out of stock

1

NO DESCRIPTION AVAILABLE | -E.NO.107566 This part replaces 11100-05201.

11100-05203

1
Out of stock

1

HEAD ASSY, CYLINDER | E.NO.107567-; Includes Item(s) 2 - 6 This part replaces 11100-05261.

11100-05263

1
Out of stock

2

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

3

.RING (10X85)

09381-10004

2
Out of stock

4

PIN

09206-08001

2
Out of stock

5

BOLT This part replaces 01517-06358.

01550-06357

8
Out of stock

6

BOLT This part replaces 01517-06608.

01550-06607

2
Out of stock

7

GASKET, CYLINDER HEAD | MODEL Z This part replaces 11141-05200.

11141-05202

1
Out of stock

7

GASKET, CYLINDER HEAD | MODEL D This part replaces 11141-05201.

11141-05202

1
Out of stock

8

PIN

04211-11169

2
Out of stock

9

STUD BOLT (L:25) This part replaces 01421-06258.

01421-06257

2
Out of stock

10

NUT This part replaces 08316-16068.

08319-31067

2
Out of stock

11

WASHER

09168-06004

1
Out of stock

12

PAD, RUBBER

11151-45000

6
Out of stock

13

1

$1.73

In stock

14

NUT

09159-08029

3
Out of stock

15

WASHER

09160-08039

2
Out of stock

16

GASKET This part replaces 09168-08012.

09168-08013

2
Out of stock

17

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

1
Out of stock

17

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

1
Out of stock

17

SPARK PLUG (DR8EA) | EXECUTED LOCALLY This part replaces 09482-00275.

09482-00399

1
Out of stock

18

CAP INSPECTION This part replaces 11175-37110.

11175-18920

2
Out of stock

19

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

20

PLUG, HEAD

09241-22002

1
Out of stock

21

PLUG

26442-45000

1
Out of stock

22

PLATE

26449-33000

1
Out of stock

23

SEAL BAND

26451-45000

1
Out of stock

24

SCREW

09128-05101

1
Out of stock

25

PIPE, INTAKE This part replaces 13110-05300.

13101-05300

1
Out of stock

26

O RING

09280-32006

1
Out of stock

27

SCREW This part replaces 02112-06168.

02112-06167

2
Out of stock

28

2

$2.28

In stock

29

CLAMP This part replaces 09402-44205.

09402-44208

1
Out of stock
