Description

Price

1

CRANKCASE SET | MODEL Z This part replaces 11300-05300.

11300-05301

Unavailable

1

CRANKCASE SET | MODEL D; Includes Item(s) 2 - 7

11300-05301

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT This part replaces 01547-06558.

01547-06557

$2.34

4

BOLT This part replaces 01547-06608.

01547-06607

$3.47

5

BOLT,CARB This part replaces 01547-06758.

09103-06522

$3.20

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.80

7

BOLT This part replaces 01107-06108.

01500-06107

$2.07

8

BOLT (8X80)

09103-08016

$32.38

9

BOLT (8X50)

09103-08081

$4.03

10

BOLT (8X88)

09103-08010

$34.43

11

NUT This part replaces 08319-31088.

08319-3108A

$2.31

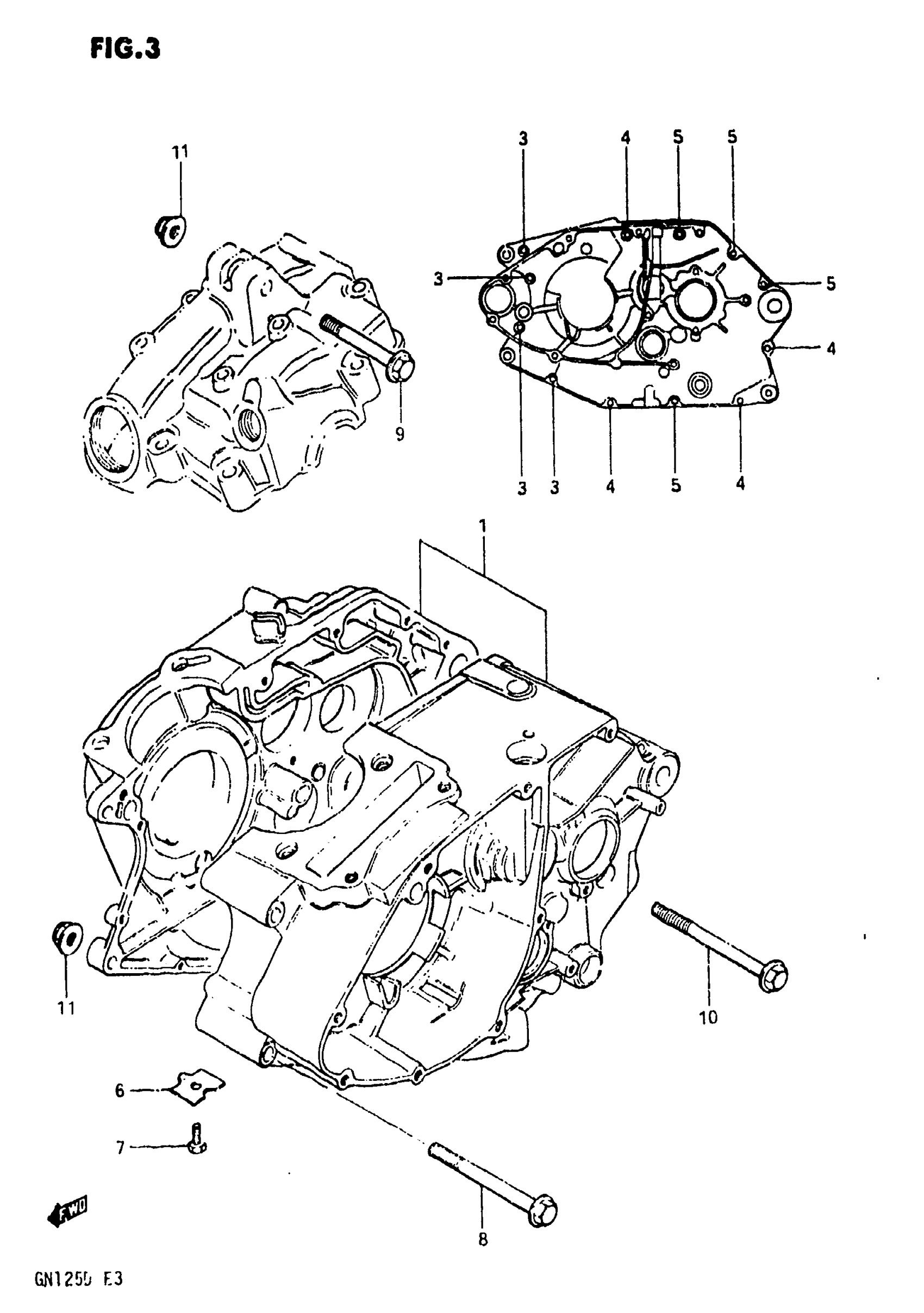

Suzuki GN125Z (1983) CRANKCASE Diagram
