1983 Suzuki GN125Z Crankshaft Diagram

← All diagrams

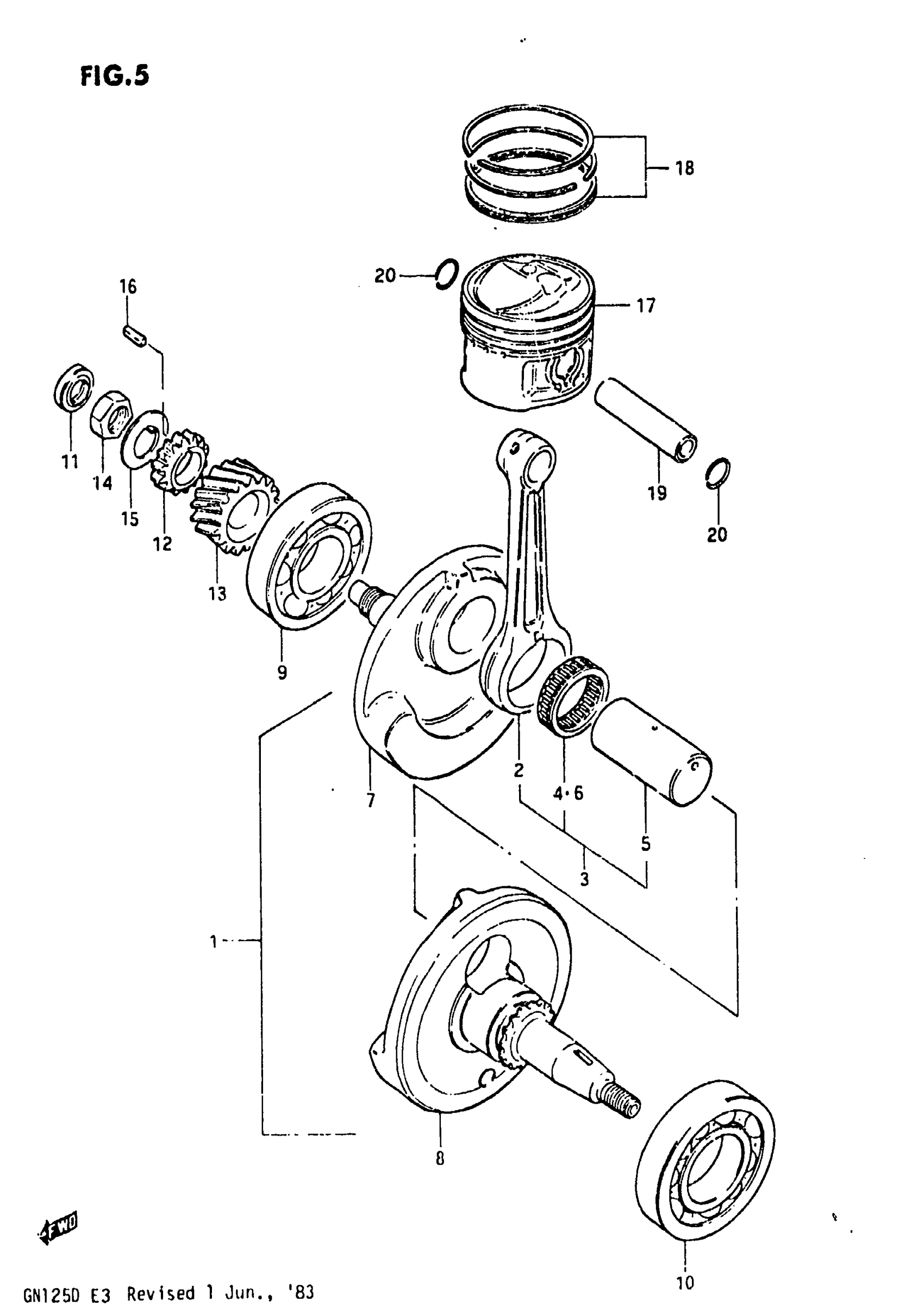

Find the part on the Crankshaft diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN125Z Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | -E.NO.107980 This part replaces 12200-05320.

12200-05340

1
Out of stock

1

CRANKSHAFT ASSY | E.NO.107981-; Includes Item(s) 2 - 8 This part replaces 12200-05321.

12200-05340

1
Out of stock

2

ROD SET, CONNECTING | -E.NO.107980 This part replaces 12161-05220.

12105-05821

1
Out of stock

3

ROD SET, CONNECTING | E.NO.107981- This part replaces 12200-05850.

12105-05821

1
Out of stock

4

BEARING (28X36X15.8) | E.NO.107981- This part replaces 09263-28017-020.

09263-28027-0B0

1
Out of stock

5

PIN | -E.NO.107980

12211-05220

1
Out of stock

6

BEARING (28X36X15.8) | -E.NO.107980 This part replaces 09263-28015.

09263-28027-0B0

1
Out of stock

7

CRANKSHAFT, RH This part replaces 12221-05201.

12221-05202

1
Out of stock

8

CRANKSHAFT, LH This part replaces 12261-05300.

12261-05301

1
Out of stock

9

BEARING (28X68X18) This part replaces 09262-28003.

09262-28014

1
Out of stock

10

BEARING (35X72X17) This part replaces 09262-35010.

09262-35038

1
Out of stock

11

OIL SEAL (12X21X7) This part replaces 09282-12001.

09282-12009

1
Out of stock

12

GEAR, OIL PUMP DRIVE (NT:15) This part replaces 16321-05200.

16321-05201

1
Out of stock

13

GEAR, PRIMARY DRIVE (NT:17) This part replaces 21111-05200.

21111-05200-0C0

1
Out of stock

14

NUT

09140-16019

1
Out of stock

15

LOCK WASHER

09166-16012

1
Out of stock

16

KEY, GEAR

09421-04004

1
Out of stock

17

PISTON | STD,MODEL Z This part replaces 12111-05201.

12111-05202-0F0

1
Out of stock

17

PISTON | STD,MODEL D This part replaces 12111-05202.

12111-05202-0F0

1
Out of stock

17

PISTON SET (OS:0.5) | OPT,MODEL Z This part replaces 12111-05201-050.

12100-05200-050

1
Out of stock

17

PISTON SET (OS:0.5) | OPT,MODEL D This part replaces 12111-05202-050.

12100-05200-050

1
Out of stock

17

PISTON SET (OS:1.0) | OPT,MODEL Z This part replaces 12111-05201-100.

12100-05200-100

1
Out of stock

17

PISTON SET (OS:1.0) | OPT,MODEL D This part replaces 12111-05202-100.

12100-05200-100

1
Out of stock

18

RING SET, PISTON | STD This part replaces 12140-05211.

12140-01410

1
Out of stock

18

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-05211-050.

12140-01410-050

1
Out of stock

18

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-05211-100.

12140-01410-100

1
Out of stock

19

PIN, PISTON This part replaces 12151-05220.

12151-05220-0A0

1
Out of stock

20

RING

09381-14001

2
Out of stock
