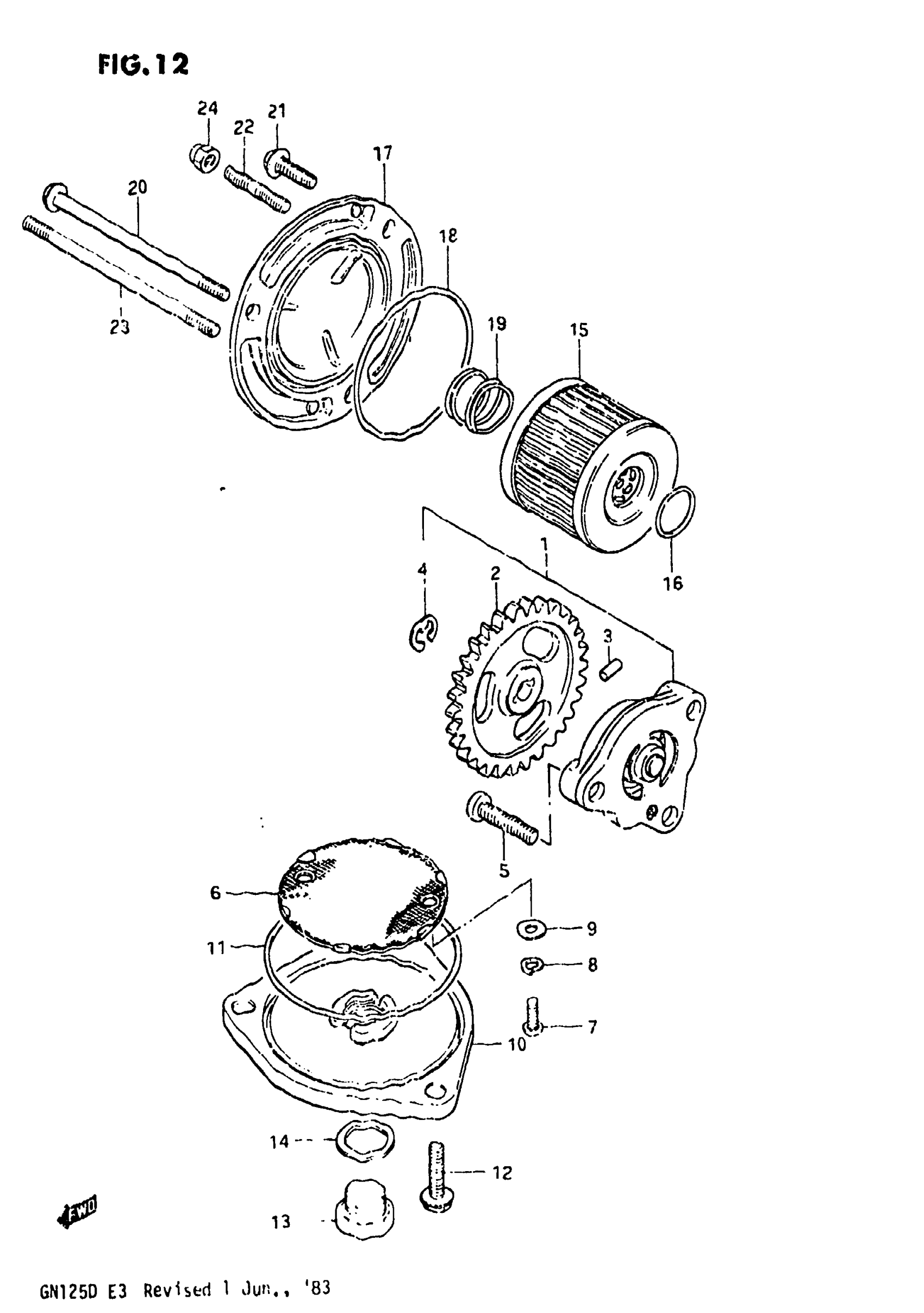

Suzuki GN125Z (1983) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENGINE OIL This part replaces 16400-05200.

16400-05201

Unavailable

2

GEAR, DRIVEN (NT:30)

16331-05200

Unavailable

3

PIN

09261-02008

$1.48

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.43

5

SCREW This part replaces 02112-06258.

02112-06257

$1.68

6

STRAINER, ENGINE OIL | MODEL Z This part replaces 16520-05201.

16520-05202

$5.46

6

STRAINER, ENGINE OIL | MODEL D

16520-05202

$5.46

7

SCREW This part replaces 02112-05128.

02112-05127

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

9

WASHER This part replaces 08322-21058.

08322-01057

$1.86

10

CAP, OIL STR

16523-05200

$13.43

11

.O RING (D:2.4,ID:60.5)

09280-60005

$2.87

12

BOLT This part replaces 01547-06208.

01547-06207

$2.01

13

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

14

GASKET

09168-14004

$1.69

15

FILTER, ENGINE OIL

16510-05240

$5.39

16

O RING

09280-13004

$2.19

17

CAP, OIL FILTER This part replaces 16512-05210.

16512-05212

Unavailable

17

CAP, OIL FILTER This part replaces 16512-05211.

16512-05212

Unavailable

18

O RING

09280-54001

$3.38

19

SPRING

09440-18002

$1.09

20

BOLT This part replaces 01547-06908.

01547-0690B

$2.93

21

BOLT This part replaces 01547-06208.

01547-06207

$2.01

22

STUD BOLT This part replaces 01421-06128.

09108-06128

$2.15

23

BOLT,STUD This part replaces 01421-06858.

01421-0685A

$4.62

24

NUT, LICENSE HOLDER This part replaces 08313-11068.

08313-10067

$1.83
