1983 Suzuki GN125Z Crankcase Cover Diagram

← All diagrams

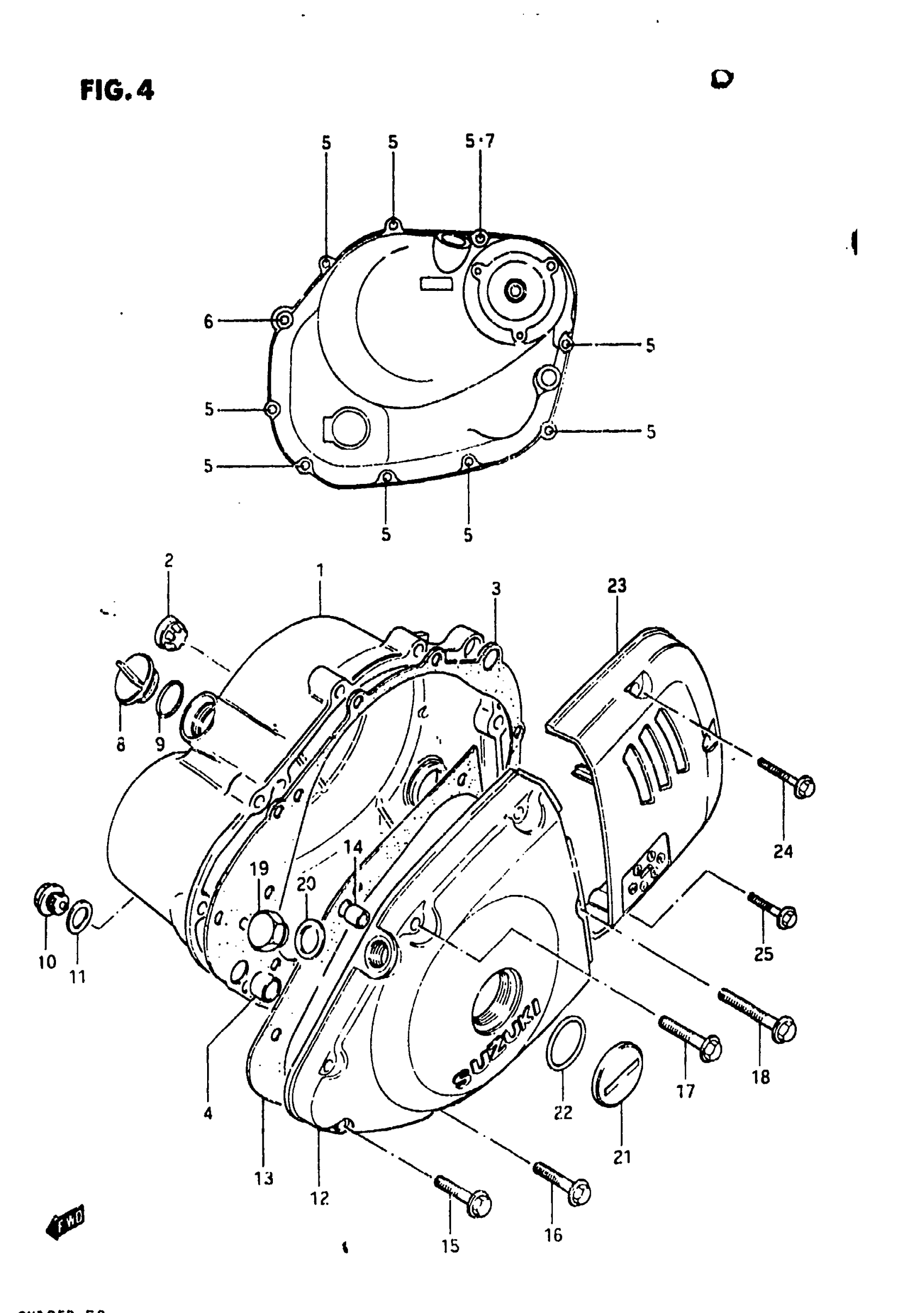

Find the part on the Crankcase Cover diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN125Z Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | Includes Item(s) 2 This part replaces 11340-05300.

11340-05302

1
Out of stock

2

.LENS, OIL LEVEL CHECK

11971-45010

1
Out of stock

3

GASKET, CLUTCH COVER This part replaces 11482-05300.

11482-05311

1
Out of stock

4

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

5

BOLT This part replaces 01547-06308.

01547-06307

9
Out of stock

6

BOLT This part replaces 01547-06458.

01547-06457

1
Out of stock

7

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

1
Out of stock

8

PLUG, OIL FILLER | MODEL Z

09259-20007

1
Out of stock

8

PLUG, OIL FILLER | MODEL D This part replaces 09259-20009.

09259-20007

1
Out of stock

9

O RING

09280-17003

1
Out of stock

10

1

$3.63

In stock

11

GASKET

09168-14004

1
Out of stock

12

COVER, MAGNETO This part replaces 11351-05300.

11351-05302

1
Out of stock

13

GASKET, MAGNETO COVER This part replaces 11483-05300.

11483-05312

1
Out of stock

14

PIN

04211-09129

1
Out of stock

15

BOLT This part replaces 01547-06308.

01547-06307

2
Out of stock

16

BOLT This part replaces 01547-06358.

01547-06357

2
Out of stock

17

BOLT This part replaces 01547-06408.

01547-06407

2
Out of stock

18

BOLT This part replaces 01547-06508.

01547-06507

1
Out of stock

19

PLUG, T.D.C

09247-12104

1
Out of stock

20

GASKET

09168-12002

1
Out of stock

21

PLUG This part replaces 09259-26003.

09259-26011

1
Out of stock

22

O RING

09280-22008

1
Out of stock

23

COVER, ENGINE SPROCKET This part replaces 11361-05300.

11361-05301

1
Out of stock

24

BOLT This part replaces 01547-05258.

01547-05257

1
Out of stock

25

BOLT This part replaces 01547-05358.

01547-05357

2
Out of stock
