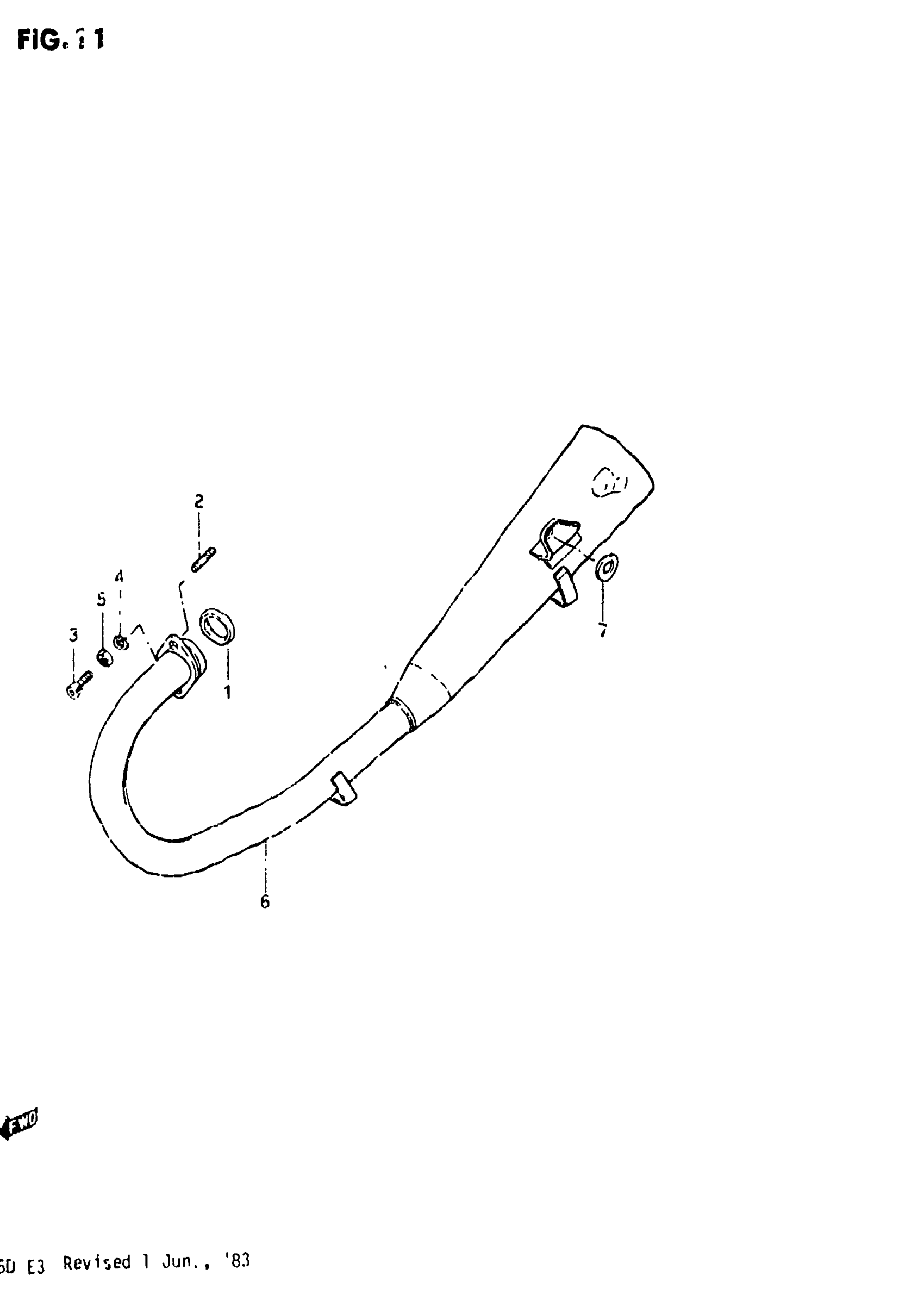

Suzuki GN125Z (1983) MUFFLER Diagram

#

Description

Price

1

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$6.61

2

STUD BOLT | -E.NO.107566 This part replaces 01421-06208.

01421-0620A

$1.89

3

BOLT | E.NO.107567~ This part replaces 09106-08023.

07130-0825B

$3.04

4

LOCK WASHER | ~E.NO.107566 This part replaces 08321-21068.

08321-01067

$1.83

5

.NUT | ~E.NO.107566 This part replaces 08310-11068.

08310-00067

$1.83

6

NO DESCRIPTION AVAILABLE | ~E.NO.107566 This part replaces 14305-05300.

14305-05372-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | E.NO.107567~ This part replaces 14305-05371-H01.

14305-05372-H01

Unavailable

7

WASHER This part replaces 08322-21108.

08322-01107

$1.88
