1993 Kawasaki EX500 Radiator/fan/water Pump Diagram

← All diagrams

Find the part on the Radiator/fan/water Pump diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

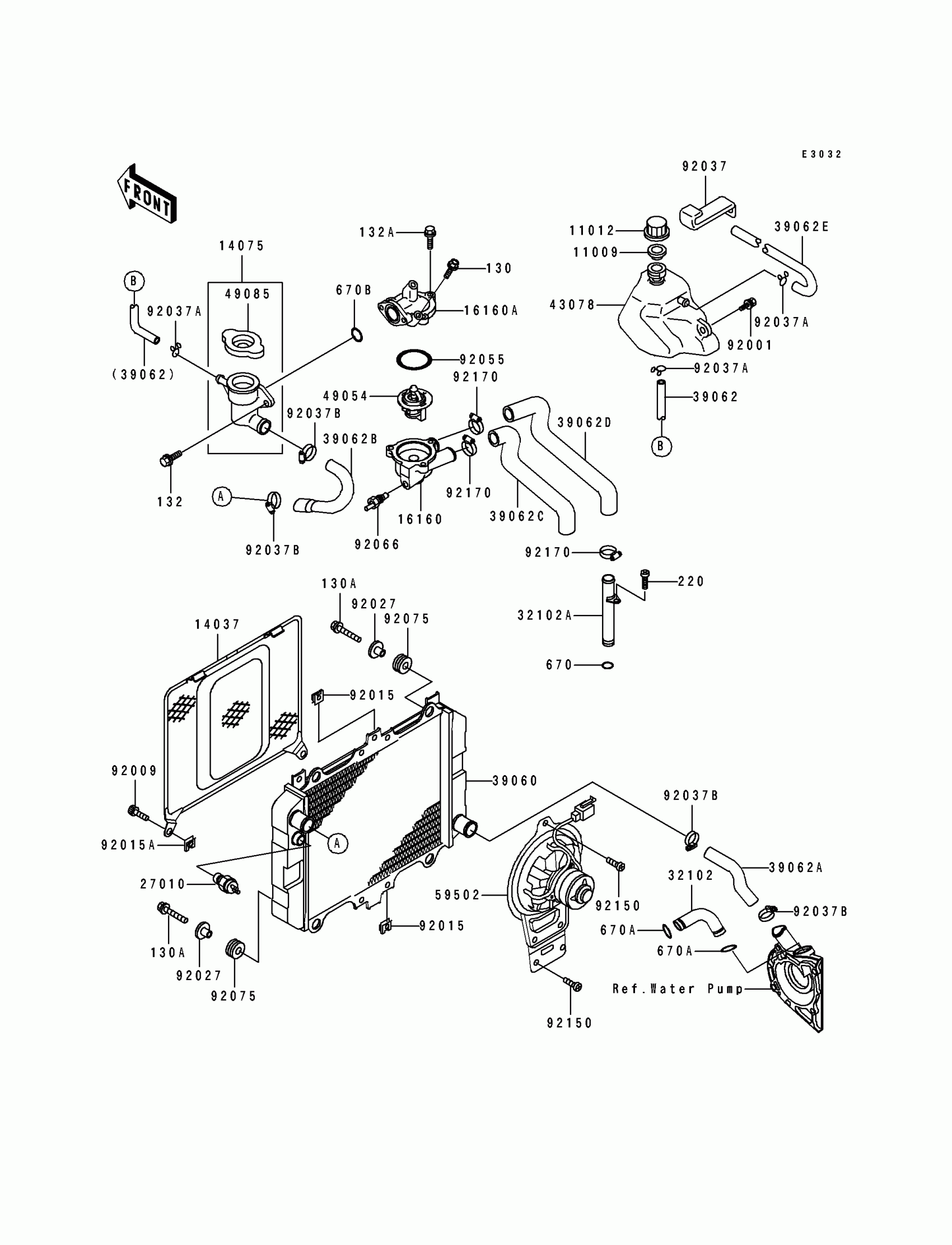

1993 Kawasaki EX500 Radiator/fan/water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

14037

SCREEN

14037-1143

1
Out of stock

14075

CAP-ASSY,RADIATOR

14075-1085

1
Out of stock

16160

BODY,THERMOSTAT,LWR

16160-1138

1
Out of stock

16160A

BODY,THERMOSTAT,UPP

16160-1170

1
Out of stock

27010

SWITCH,THERMOSTAT

27010-1304

1
Out of stock

32102

PIPE,PUMP-CYLINDER

32102-1405

1
Out of stock

32102A

PIPE

32102-1473

1
Out of stock

39060

RADIATOR

39060-1084

1
Out of stock

39062

HOSE-COOLING,L=447

39062-1195

1
Out of stock

39062A

HOSE-COOLING,RADIATOR-PUMP

39062-1222

1
Out of stock

39062B

HOSE-COOLING,CAP-RADIATOR

39062-1223

1
Out of stock

39062C

HOSE-COOLING,THERMO-HEAD,LH

39062-1224

1
Out of stock

39062D

HOSE-COOLING,THERMO-HEAD,RH

39062-1225

1
Out of stock

39062E

HOSE-COOLING

39062-1257

1
Out of stock

43078

RESERVOIR

43078-1084

1
Out of stock

49054

THERMOSTAT

49054-1059

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1062

1
Out of stock

59502

FAN-ASSY

59502-1070

1
Out of stock

92001

BOLT,W/WASHER,6X12

92001-1516

1
Out of stock

92009

SCREW,6X12

92009-1480

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92015A

NUT,6MM

92015-1758

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92037

CLAMP,HARNESS

92037-1316

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,COOLING HOSE

92037-1989

1
Out of stock

92055

RING-O,44.7X2.4

92055-1279

1
Out of stock

92066

PLUG,SENSOR,WATER

92066-1118

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92150

BOLT,6X12

92150-1186

1
Out of stock

92170

CLAMP,HOSE,26MM

92170-1077

1
Out of stock

130

BOLT-FLANGED

130B0614

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

670

O RING,14MM

670B2014

1
Out of stock

670A

O RING,18MM

670B2018

1
Out of stock

670B

O RING,20MM

670B2020

1
Out of stock
