1993 Kawasaki EX500 Camshafts/tensioner Diagram

← All diagrams

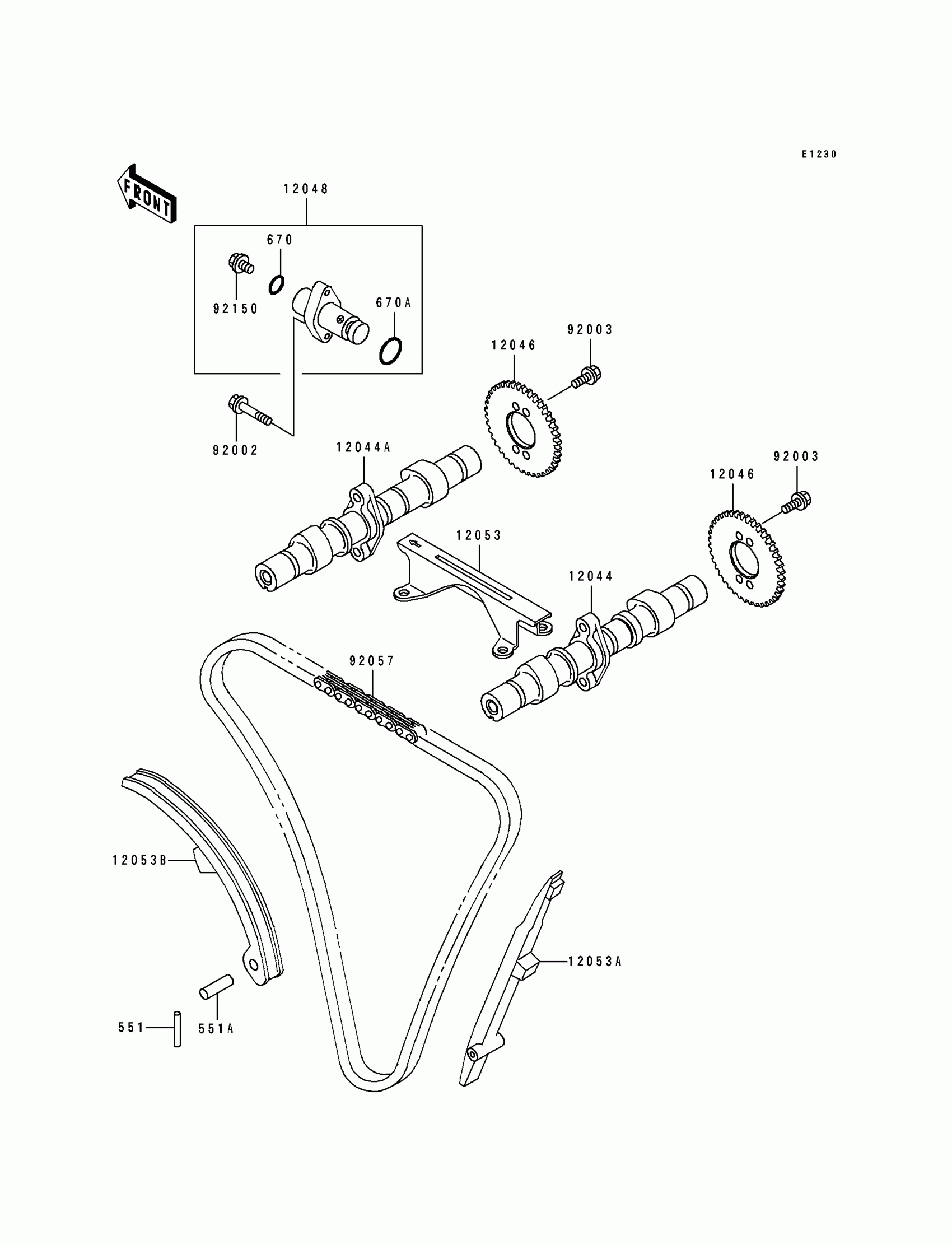

Find the part on the Camshafts/tensioner diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki EX500 Camshafts/tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12044

CAMSHAFT-VALVE,INTAKE

12044-1198

1
Out of stock

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1199

1
Out of stock

12046

SPROCKET,CAMSHAFT,46T

12046-1075

1
Out of stock

12048

TENSIONER-ASSY,CAM CHAIN

12048-1067

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-1145

1
Out of stock

12053A

GUIDE-CHAIN,RR

12053-1150

1
Out of stock

12053B

GUIDE-CHAIN,FR

12053-1151

1
Out of stock

92002

BOLT,FLANGED,6X25

92002-1086

1
Out of stock

92003

BOLT,FLANGED,6X11

92003-208

1
Out of stock

92057

CHAIN,CAM,79RH2015-148L

92057-1188

1
Out of stock

92150

BOLT,TENSIONER

92150-1380

1
Out of stock

551

PIN-DOWEL

551A0432

1
Out of stock

551A

PIN-DOWEL,8X40

551A0840

1
Out of stock

670

O RING,10MM

670D2010

1
Out of stock

670A

O RING,21MM

670D2021

1
Out of stock
