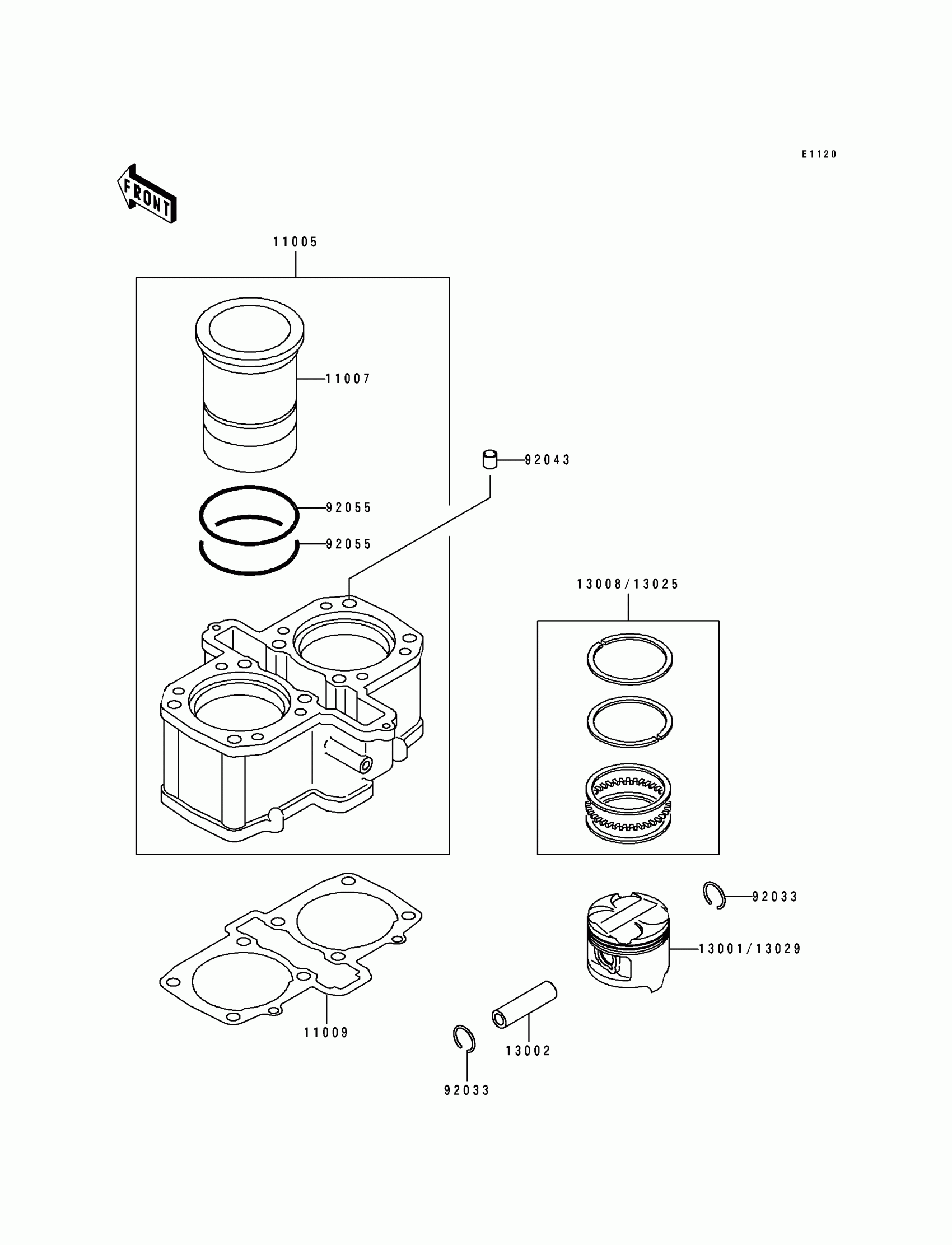

Find the part on the Cylinder/pistons diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Kawasaki EX500 Cylinder/pistons Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1517

1

$1,308.30

In stock

11007

LINER-CYLINDER

11007-1096

1
Out of stock

11009

1

$44.23

In stock

13001

PISTON-ENGINE,STD

13001-1251

1

$95.70

In stock

13002

PIN-PISTON

13002-1058

1

$26.18

In stock

13008

RING-SET-PISTON,STD

13008-1084

1

$69.12

In stock

13025

—

$73.87

In stock

13029

—

$85.16

In stock

92033

RING-SNAP,20.5X1.2

92033-1099

1

$0.64

In stock

92043

PIN,11.5X14X14

92043-1279

1

$3.97

In stock

92055

RING-O,80.6X2.4

92055-1247

1

$12.47

In stock
