1989 Kawasaki EX500 Oil Pump/oil Filter Diagram

← All diagrams

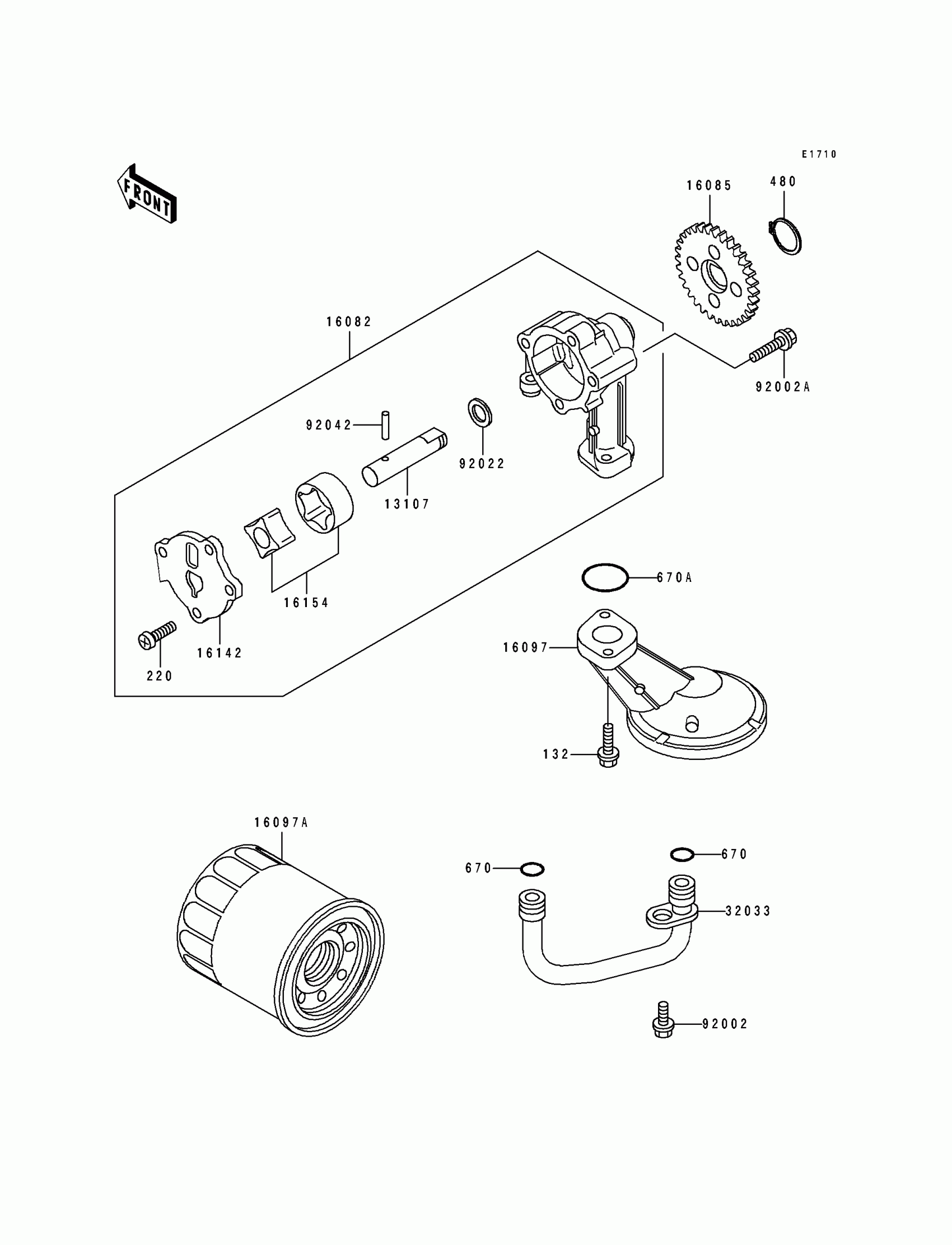

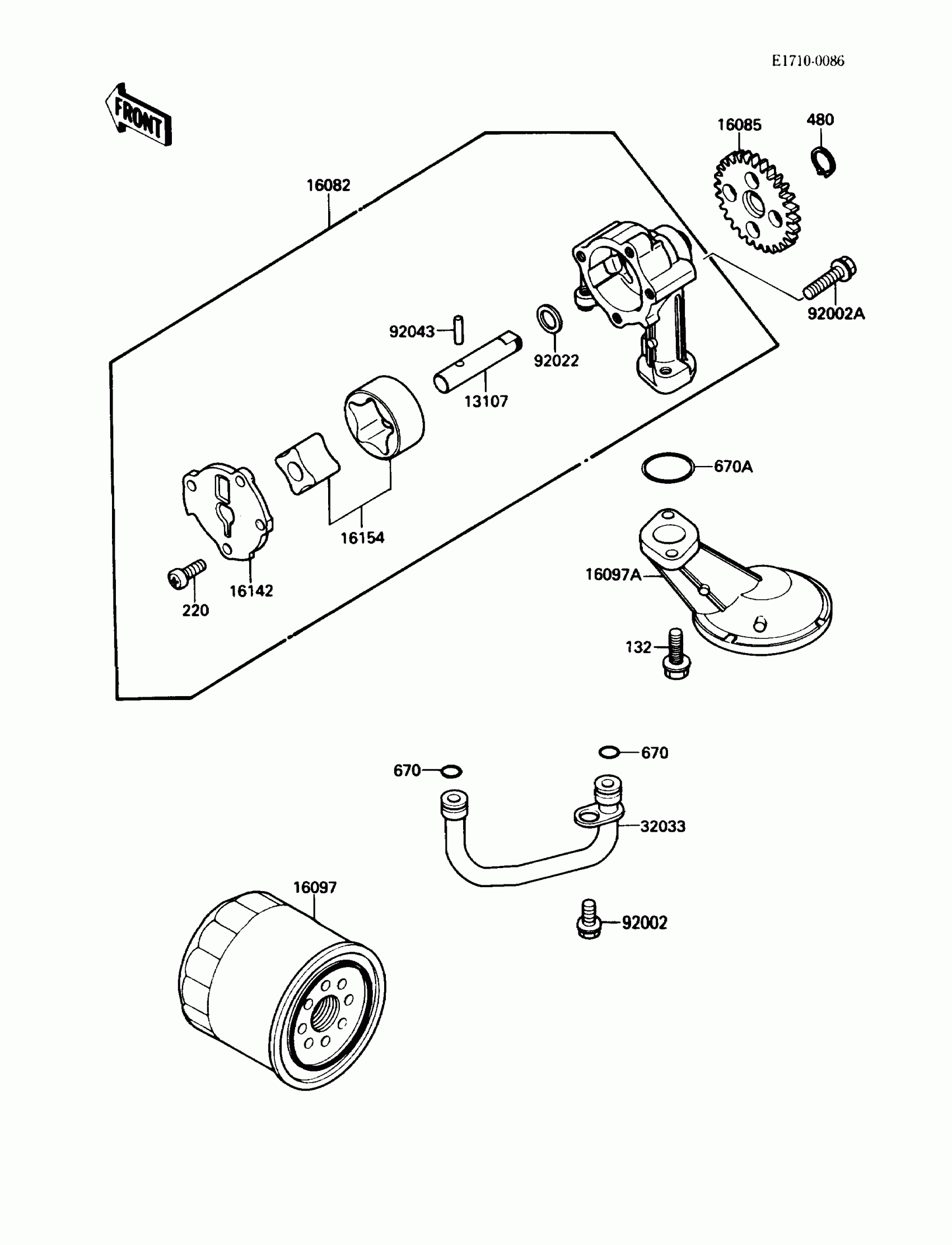

Find the part on the Oil Pump/oil Filter diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki EX500 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,OIL PUMP

13107-1202

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1085

1
Out of stock

16085

GEAR,OIL PUMP

16085-1143

1
Out of stock

16097

FILTER-ASSY-OIL

16097-1054

1
Out of stock

16097A

FILTER-ASSY-OIL

16097-1056

1
Out of stock

16142

COVER-PUMP,OIL

16142-1077

1
Out of stock

16154

ROTOR-PUMP,OIL

16154-1066

1
Out of stock

32033

PIPE

32033-1540

1
Out of stock

92002

BOLT,6X12

92002-1572

1
Out of stock

92002A

BOLT,6X25

92002-1609

1
Out of stock

92022

WASHER,11.2X15X1

92022-311

1
Out of stock

92043

PIN,DOWEL,4X15.8

92043-1054

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

480

CIRCLIP-TYPE-C,11MM

480J1100

1
Out of stock

670

O RING,10MM

670B2010

1
Out of stock

670A

O RING,22MM

670E2022

1
Out of stock
