1989 Kawasaki EX500 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

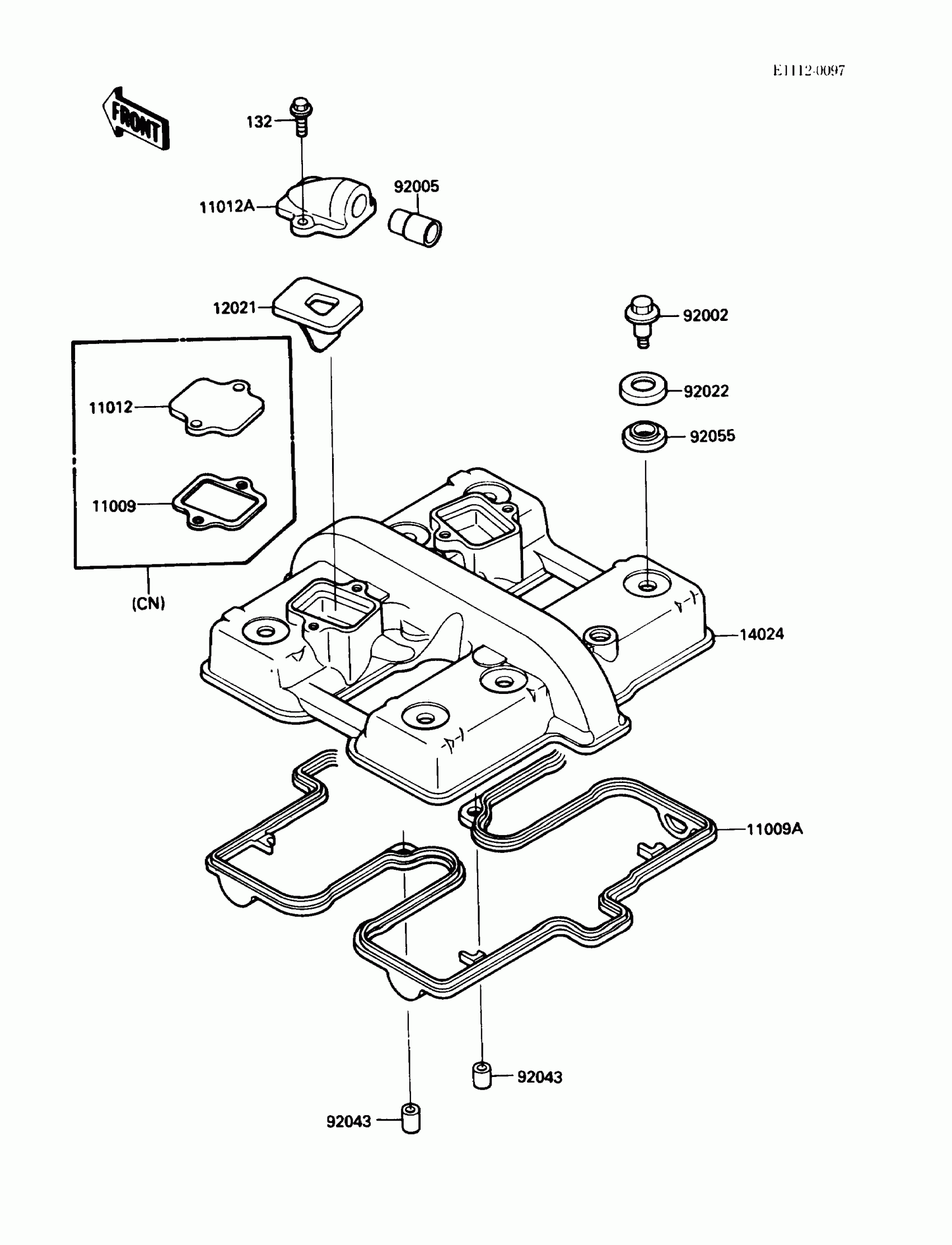

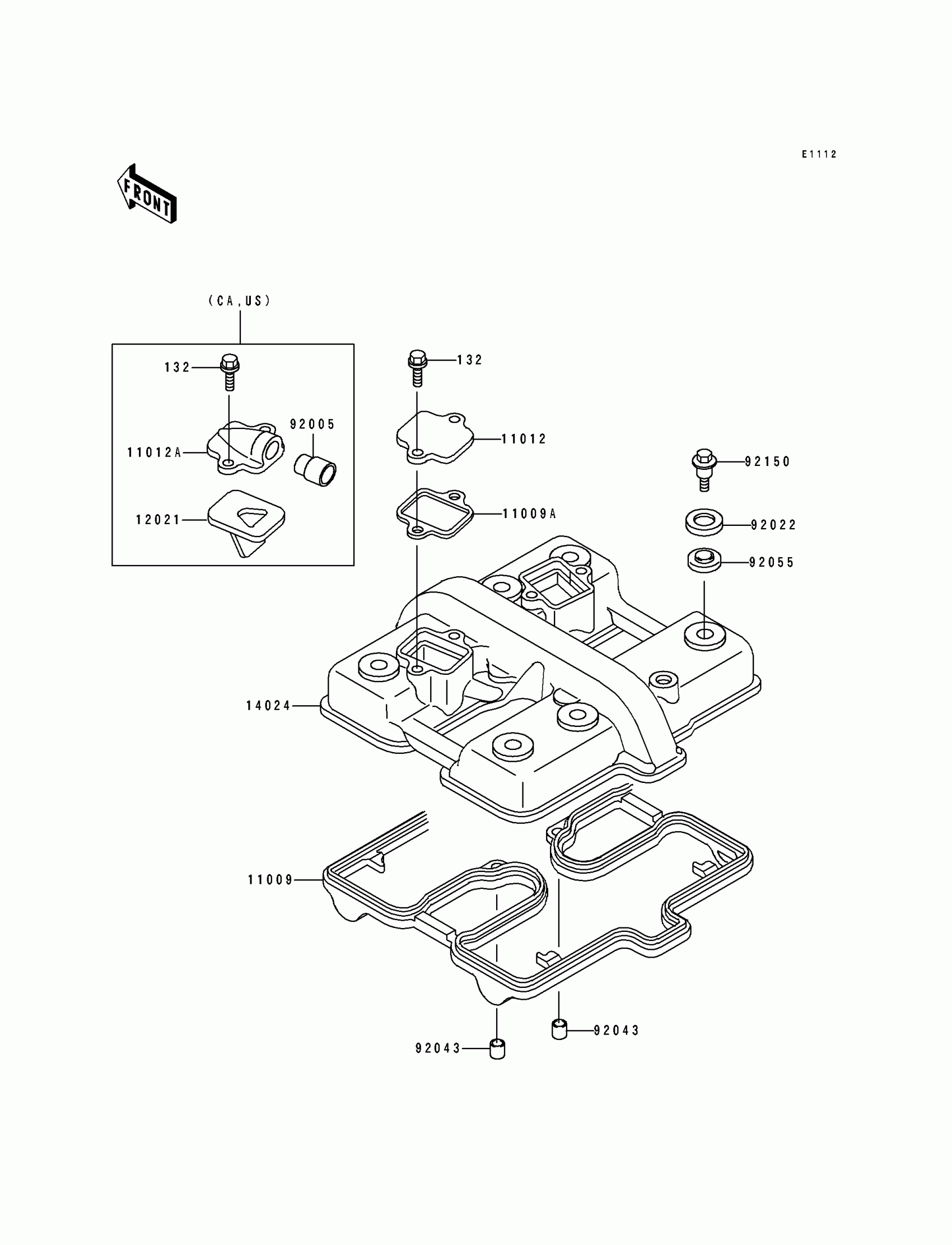

1989 Kawasaki EX500 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,REED VALVE

11009-1246

1
Out of stock

11009A

1

$75.67

In stock

11012

CAP,CYLINDER HEAD COVER

11012-1212

1
Out of stock

11012A

CAP,REED VALVE

11012-1310

1

$34.92

In stock

12021

VALVE-ASSY-REED

12021-1026

1

$88.64

In stock

14024

COVER,CYLINDER HEAD

14024-1397

1
Out of stock

92002

BOLT,HEAD COVER

92002-1504

1

$3.65

In stock

92005

FITTING,REED VALVE

92005-1006

1
Out of stock

92022

1

$4.44

In stock

92043

PIN,DOWEL,8X10

92043-1302

1

$0.97

In stock

92055

1

$6.06

In stock

132

BOLT-FLANGED-SMALL,6X16

132J0616

1
Out of stock
