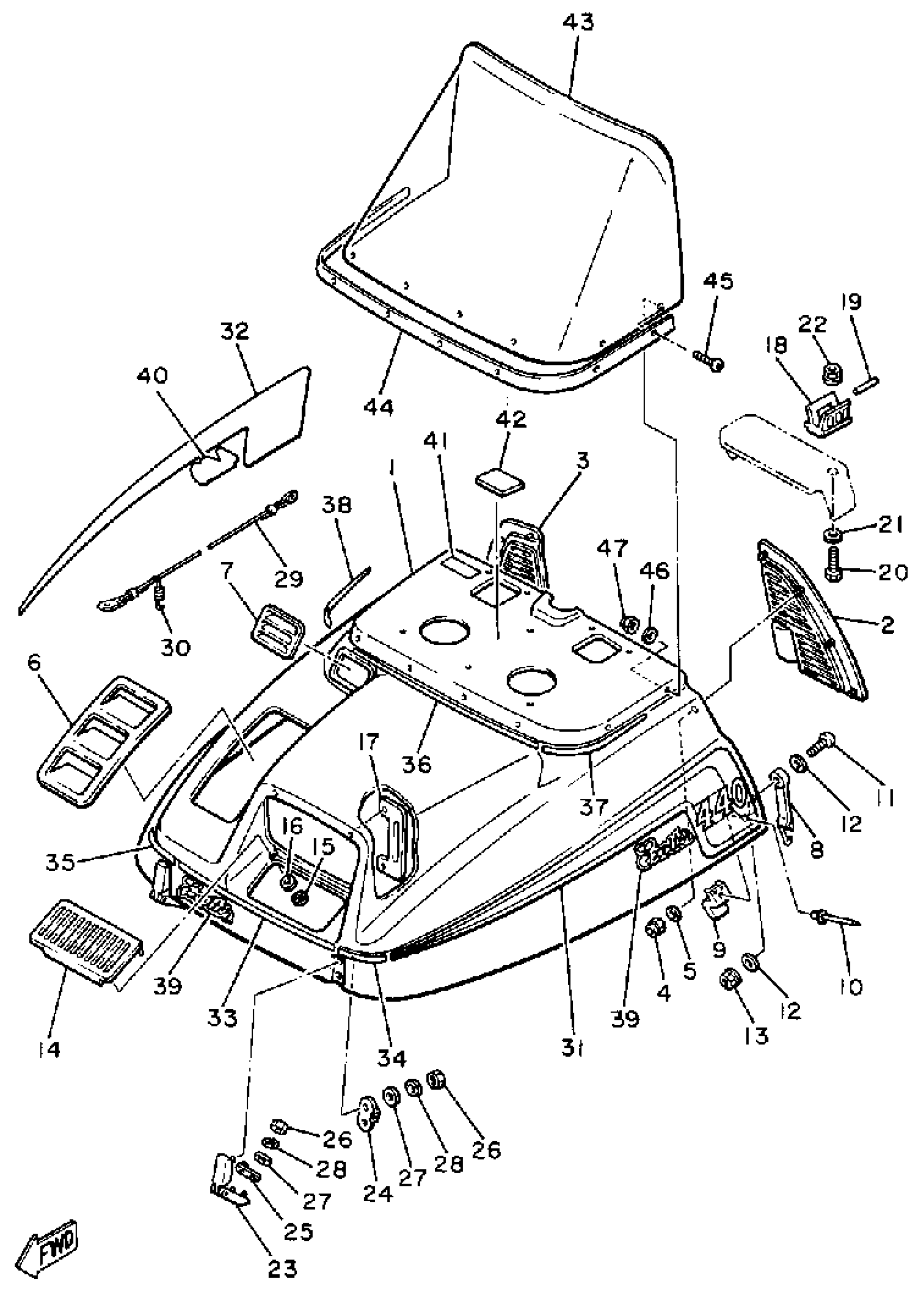

Find the part on the Shroud-Windshield diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha EX440E Shroud-Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8H6-W7711-00-00

1
Out of stock

2

LOUVER 1

8A5-77131-01-00

1
Out of stock

3

LOUVER 2

8A5-77132-01-00

1
Out of stock

4

NUT, NYLON

95707-05300-00

1

$2.74

In stock

5

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

6

LOUVER 4

8A5-77134-30-00

1
Out of stock

7

LOUVER 5

8A5-77109-30-00

1
Out of stock

8

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

9

CLAMP 2

8A5-77136-01-00

1
Out of stock

10

RIVET,BLIND

90267-40080-00

1
Out of stock

11

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

12

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

13

NUT, NYLON

95707-06300-00

1

$3.20

In stock

14

LOUVER 6

8A5-77108-30-00

1
Out of stock

15

NUT 6504269100

90183-05003-00

1
Out of stock

16

EMBLEM 3

838-77143-00-00

1
Out of stock

17

DUCT

(8A5-77194-00-00)

1
Out of stock

18

CLAMP 3

878-77137-01-00

1
Out of stock

19

STOPPER

878-77188-00-00

1
Out of stock

20

BOLT,HEXAGON

97017-06008-00

—
Out of stock

21

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

22

NUT, NYLON

95707-06300-00

1

$3.20

In stock

23

HINGE ASSEMBLY

878-77140-00-00

1
Out of stock

24

PLATE, BACK UP 1

8G6-77153-00-00

1
Out of stock

25

PLATE, BACK UP 2

878-77154-00-00

1
Out of stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

WASHER, PLATE

90201-06M08-00

1
Out of stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

STOPPER, SHROUD

(8H6-77118-00-00)

1
Out of stock

30

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

31

ORNAMENT 1

8L5-77163-00-00

1
Out of stock

32

ORNAMENT 2

(8L5-77164-00-00)

1
Out of stock

33

STRIPE 1

8L5-77281-00-00

1
Out of stock

34

STRIPE 5

(8L5-77285-00-00)

1
Out of stock

35

STRIPE 6

8L5-77286-00-00

1
Out of stock

36

STRIPE 2

8L5-77282-00-00

1
Out of stock

37

STRIPE 3

(8L5-77283-00-00)

1
Out of stock

38

STRIPE 4

(8L5-77284-00-00)

1
Out of stock

39

EMBLEM 8

(8L5-77358-00-00)

1
Out of stock

40

EMBLEM 9

(8L5-77359-00-00)

1
Out of stock

41

LABEL, SAFETY

288-21659-00-00

1
Out of stock

42

DAMPER 1

(8H6-77319-00-00)

1
Out of stock

43

WINDSHIELD

8A5-77210-00-00

1
Out of stock

44

TRIM, LOWER

8G6-77214-00-00

1
Out of stock

45

SCREW, BINDING (8G6)

90154-05002-00

—

$7.05

In stock

46

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

47

GRAPHIC SET

(8L5-W0070-00-00)

1
Out of stock

47

NUT, NYLON

95707-05300-00

1

$2.74

In stock

47

TOOL

UNA-VAILA-BL-EI

1
Out of stock
